Are you tired of needing multiple ladders for one task? Simplify your climbing needs by getting the right ladder. Whether you need a ladder in the home or on the go, the Little Giant® MegaMax® is ideal to help you get the job done efficiently.

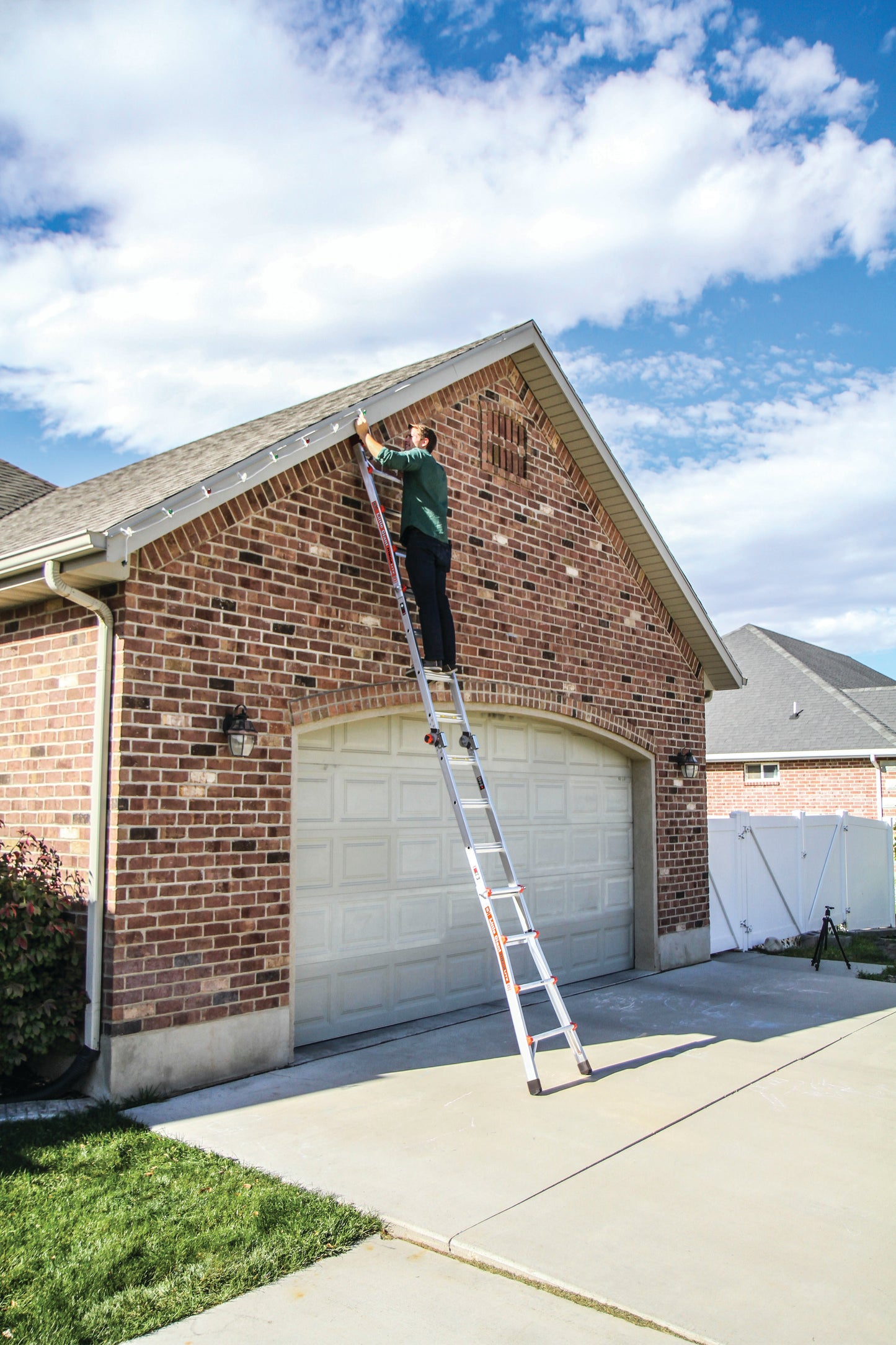

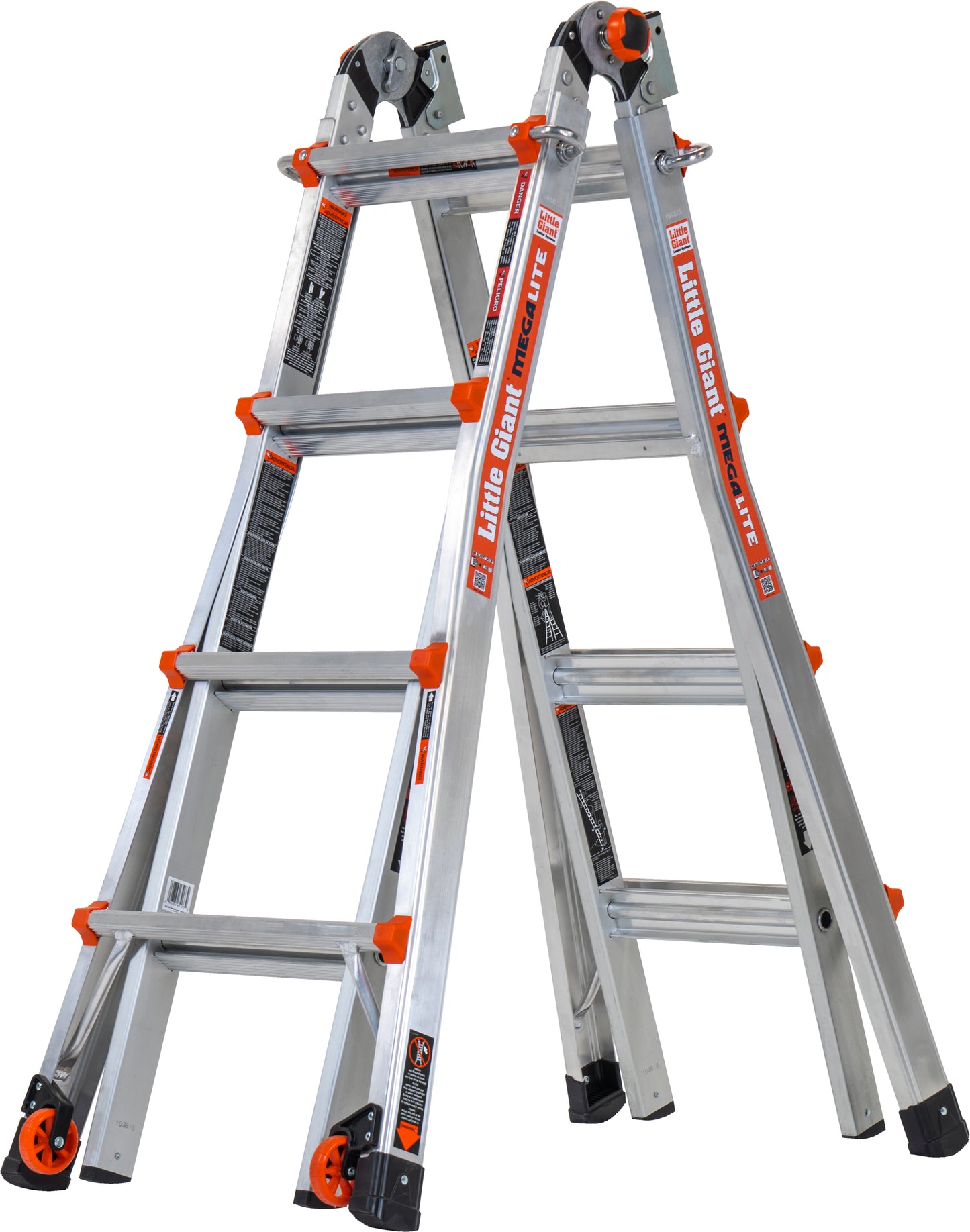

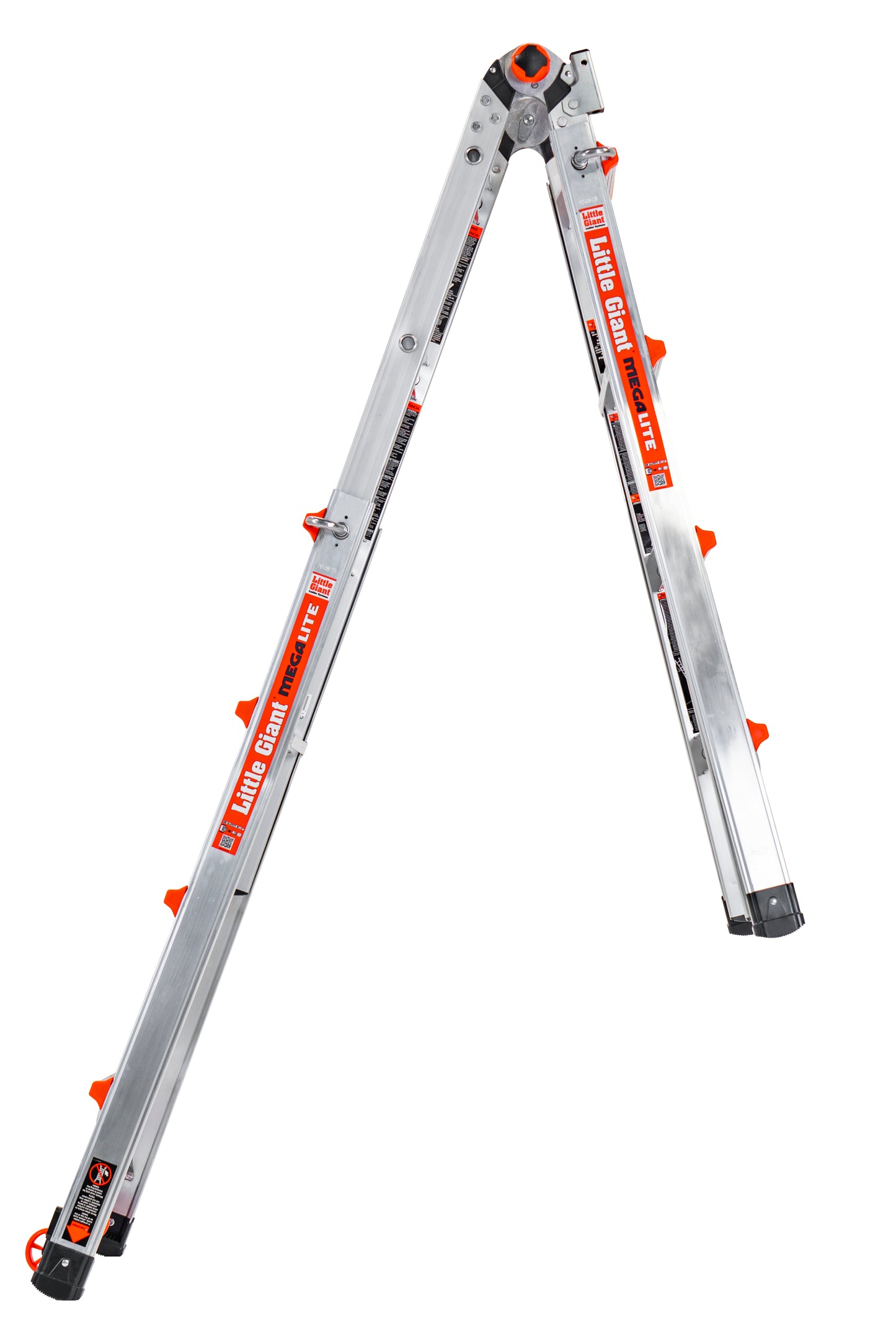

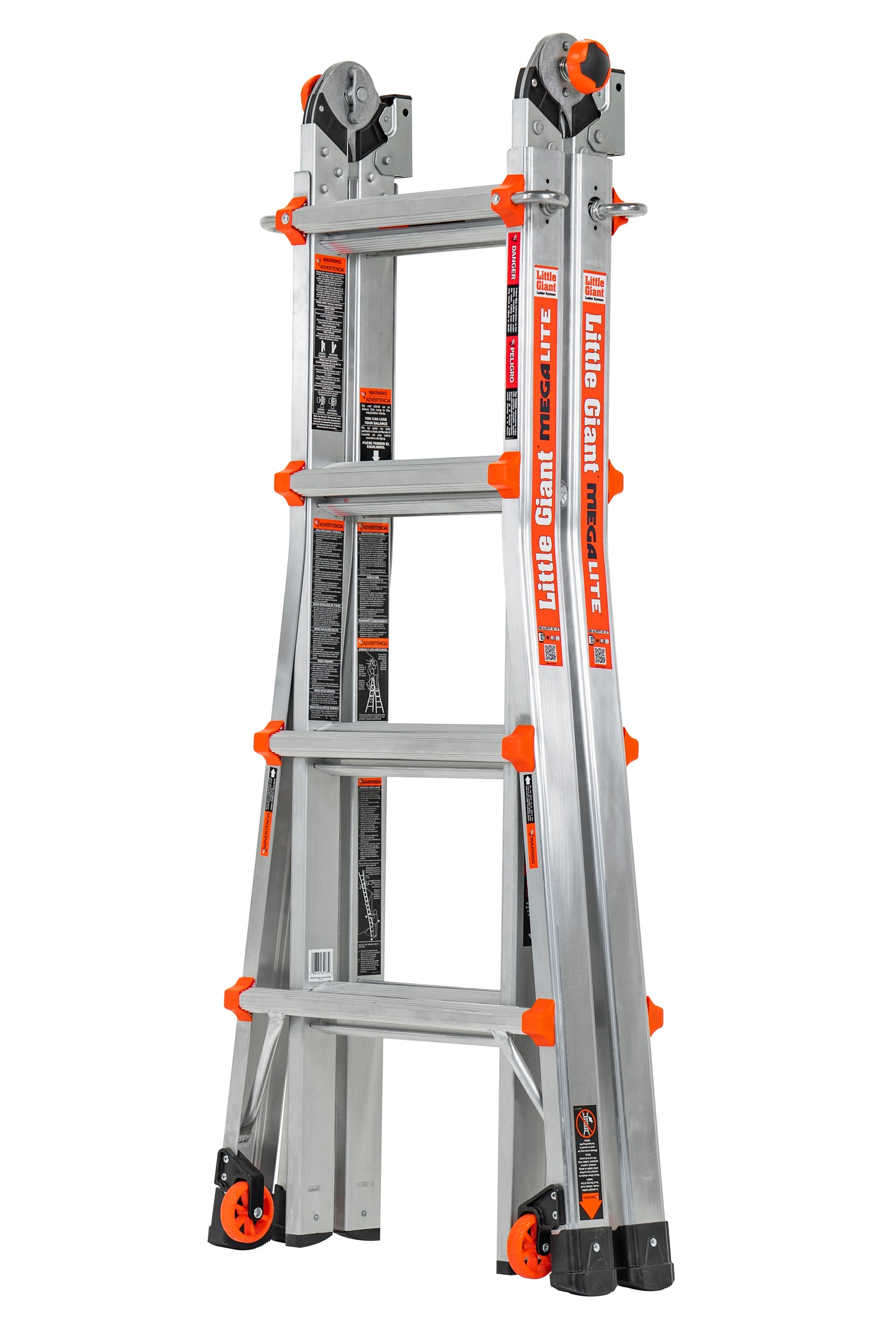

Unlike traditional ladders that only offer one position, the MegaMax is a multi-position, articulating ladder. It allows you to set up in A-frame, extension, 90-degree, staircase and trestle-and-plank* configurations with ease.
Easy to Transport
It’s time to get rid of your old, heavy ladder. Made from sturdy, lightweight aluminum, the MegaMax is easy to carry. Plus, its Tip & Glide™ Wheels make transportation easier than ever.
Rock Lock® Adjusters
When adjusting your ladder, use the MegaMax Rock Lock® adjusters to seamlessly transition your ladder from position to position.
With its AirDeck® ports, you can attach the Little Giant AirDeck to your ladder, giving you a sturdy workspace.
Meeting or exceeding all OSHA and ANSI standards, the MegaMax is rated to hold 300 lbs. in all configurations; and in A-frame, it will hold 300 lbs. on both sides.
*Plank not included.
Weight Capacity 300 lbs. Warranty Limited Lifetime Model Number 14417-001 90° Position Yes ANSI Duty Rating Type IA - Extra Heavy Duty Country of Origin China Feet Standard non-marring (snap-on) Product Weight 34 lb Product Material Aluminum Palm & Hinge Lock System Plastic / Triple Locking Hinge Ship length 4.67 ft Ship Width 2.08 ft Ship Height 8 in Spreader System Hinge Lock Tip & Glide Wheels™ Yes V-Bar No Ratchet Levelers No Ground Cue No Air Deck Ports Yes Claw No Scaffolding Position Yes
What’s the difference between model size and extension height?
You may have noticed that our model sizing is taller than the actual extension height of any telescoping Little Giant ladder. This is due to the requirements of US ladder standards, published by the American National Standards Institute (ANSI): A14.2 for aluminum ladders and A14.5 for fiberglass ladders. These standards dictate that ladder model size should be displayed as the total rail length of each section of a ladder. All US manufacturers use the same sizing system in order to comply with ANSI. Extension ladders, articulating ladders and other multipurpose ladders often have multiple sections, so the ANSI-compliant size is the sum of the lengths of each section, not the actual maximum extended height. Please refer to the individual ladder’s instruction manual for details on maximum working length, highest standing level and maximum reach. We’ve described a few of these measurements in detail below.
What is maximum working length?
The final locks on any telescoping ladder sections will adhere to ANSI requirements, meaning there will be an appropriately sized overlap between inner and outer railing when fully extended. The maximum working length is the length of the ladder at its final locked extension length.
What is highest standing level?
Depending on the ladder and configuration, ANSI standards dictate that certain rungs (such as the ladder top cap or top step of an A-frame ladder) should not be used as a step. The highest standing level takes those standards into consideration and measures the highest ANSI-approved standing rung when the ladder is extended to maximum working length.
What is maximum reach?
Maximum reach (or “max reach”) is the combination of the ladder’s highest standing level and a common user’s reach height. The reach height addition is based on a 5'6" [1.68 m] person with a 12" [30 cm] vertical reach. The term is used in ladder merchandising throughout the climbing solutions industry to help users quickly comprehend which projects are compatible with which ladders.
