Model #: 15417-104
Couldn't load pickup availability

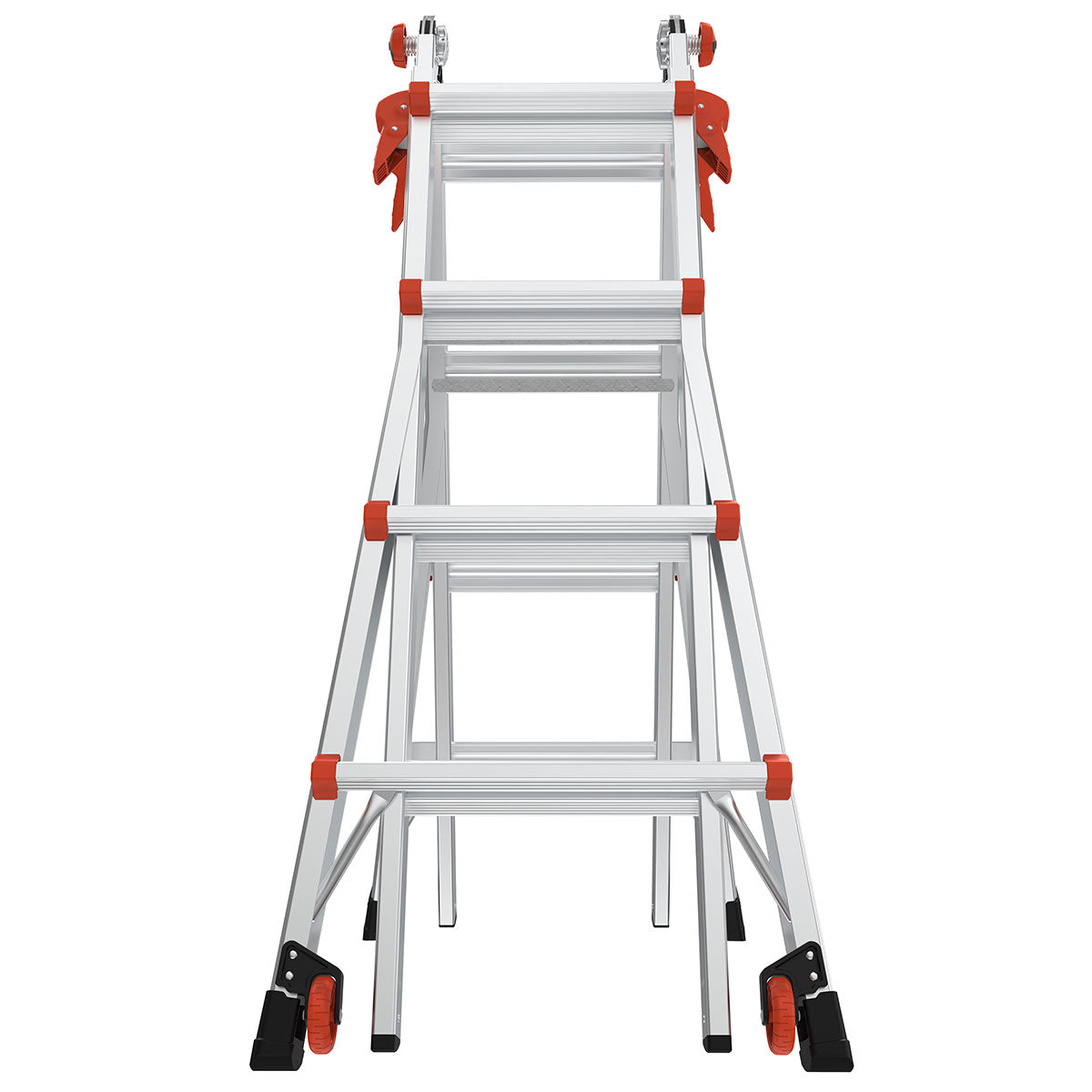

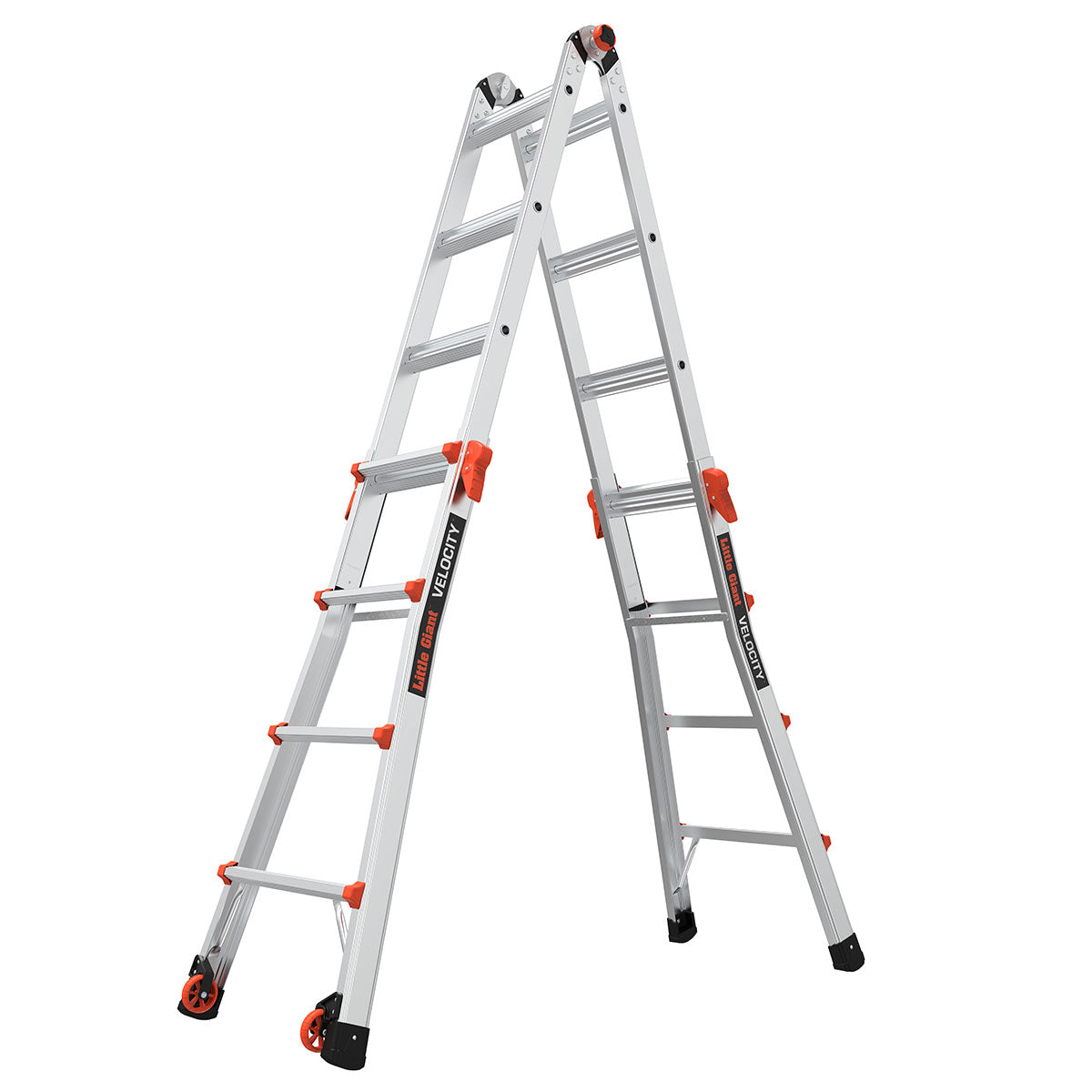

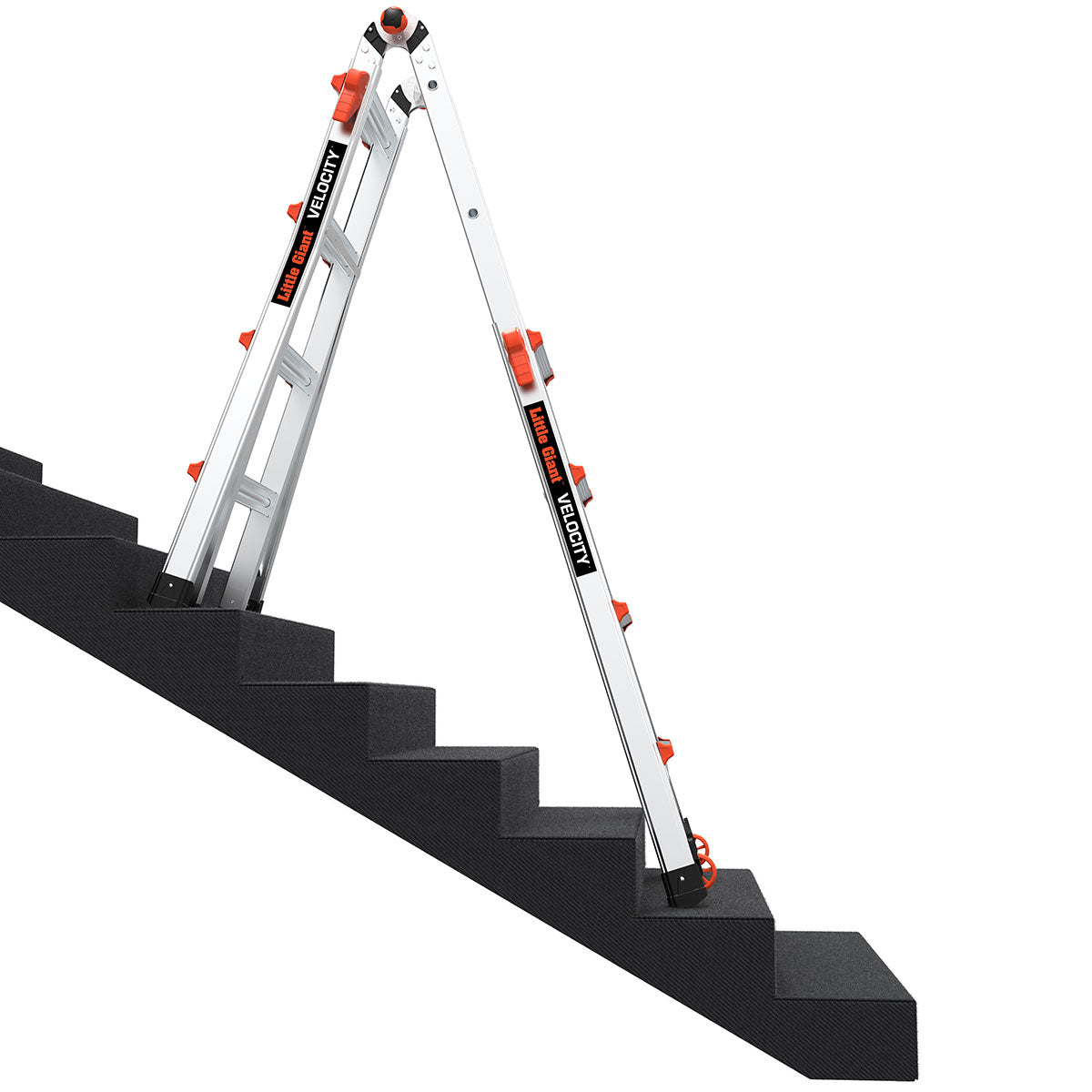

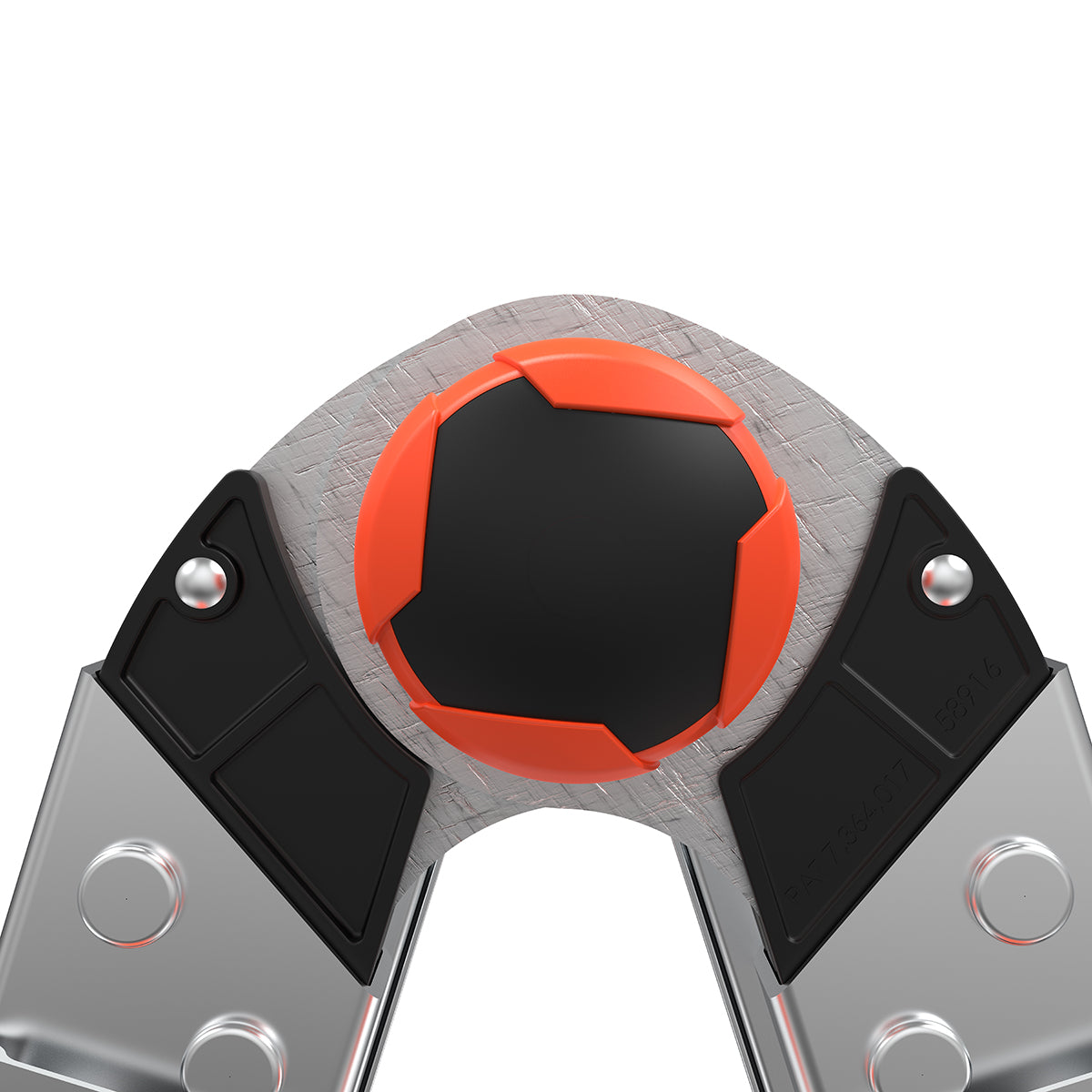

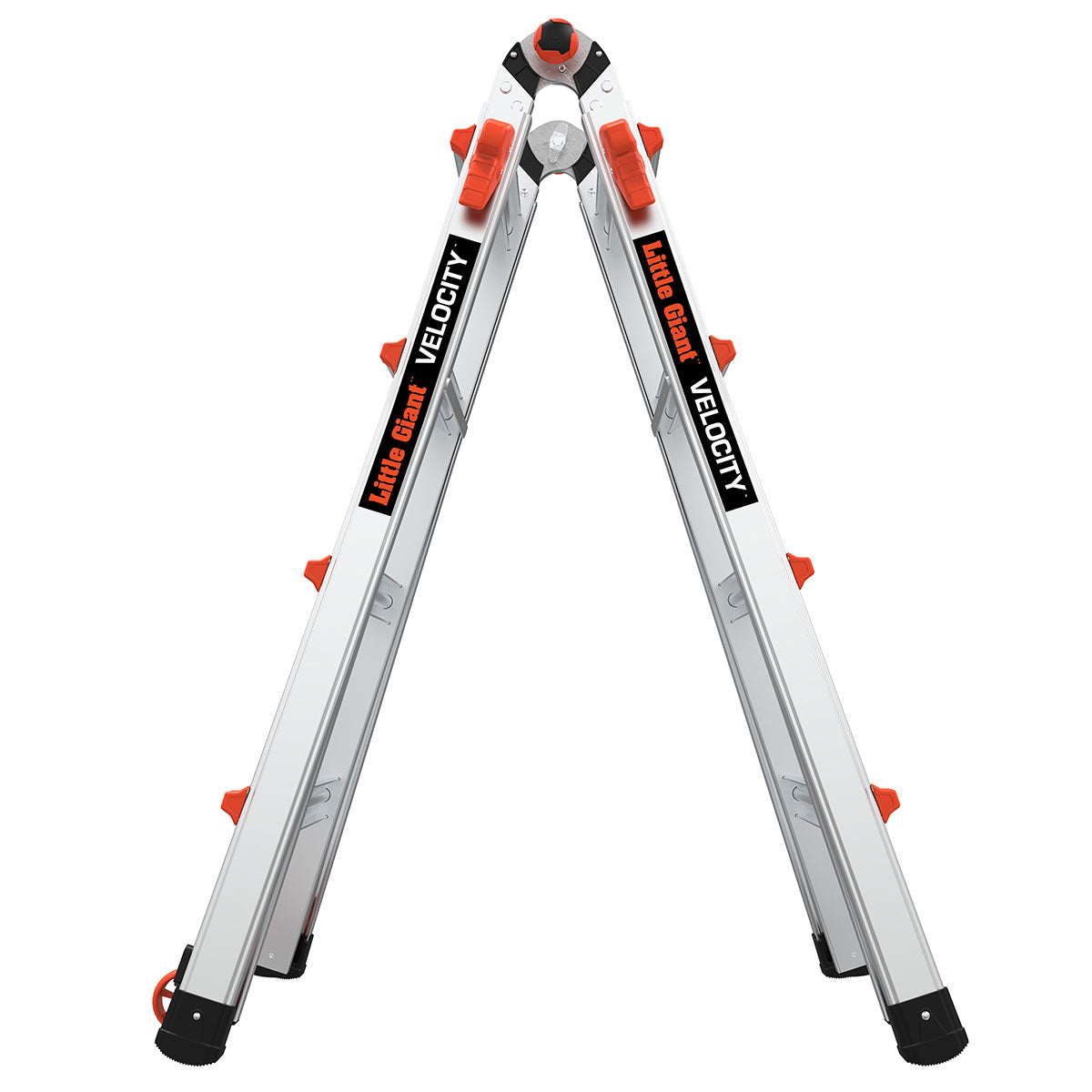

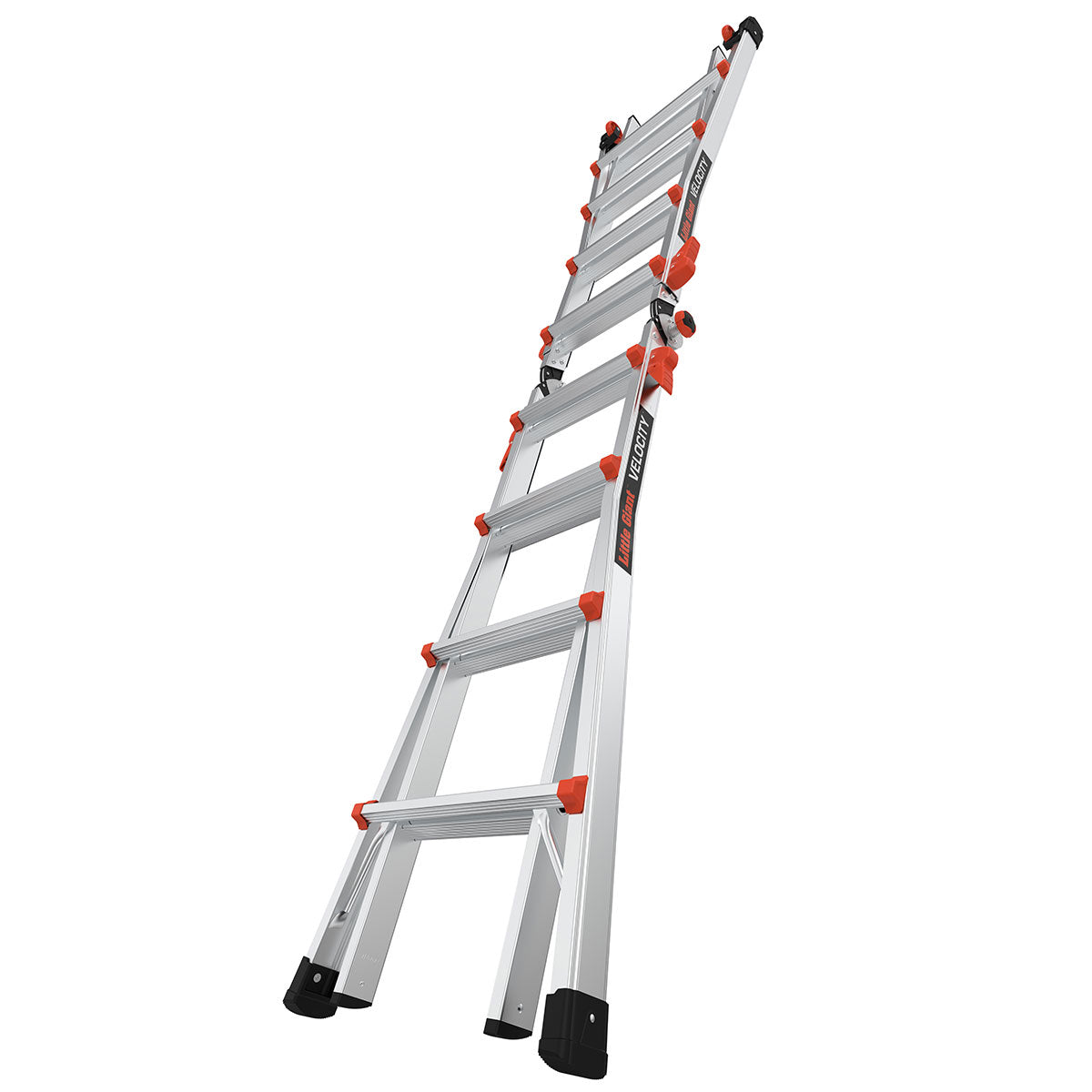

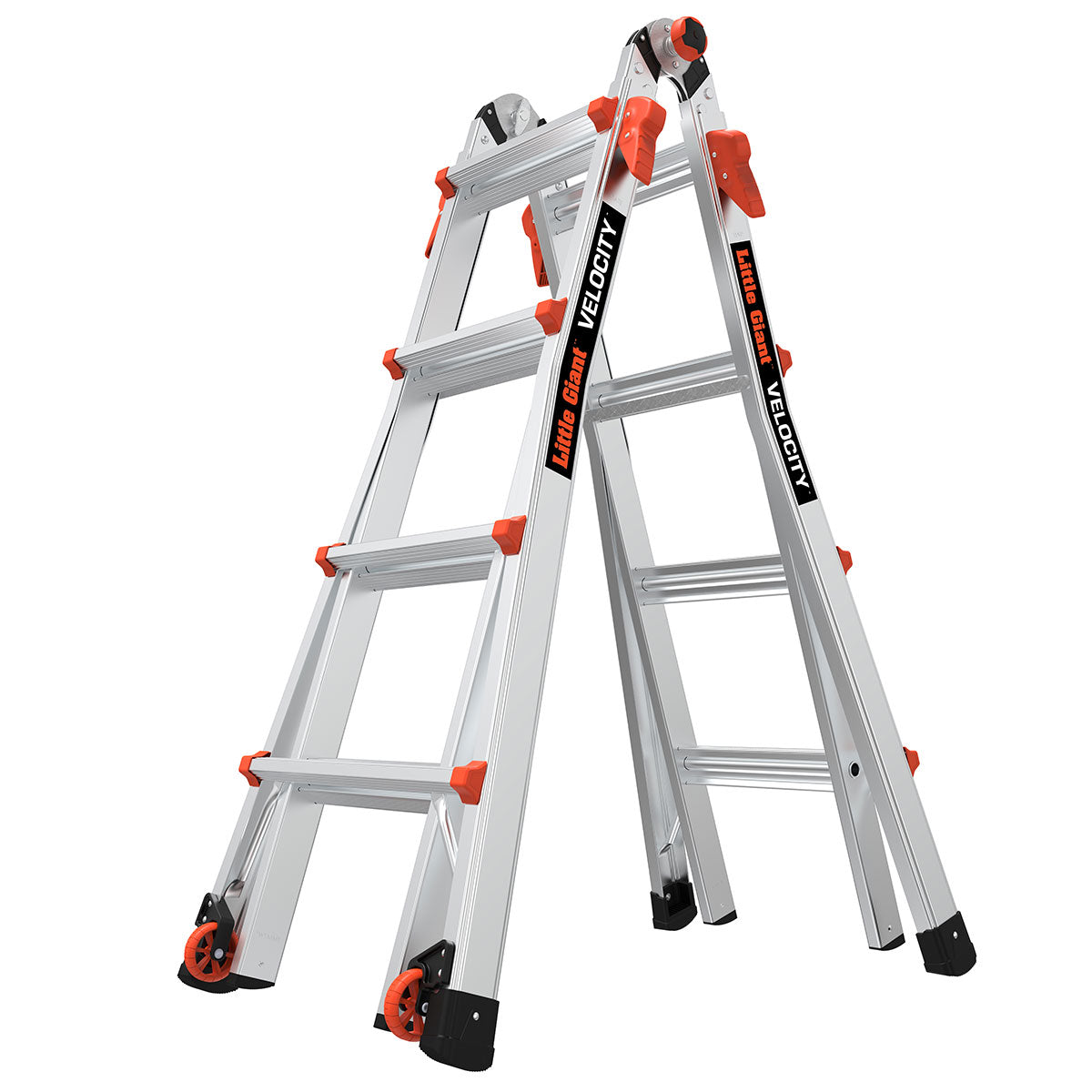

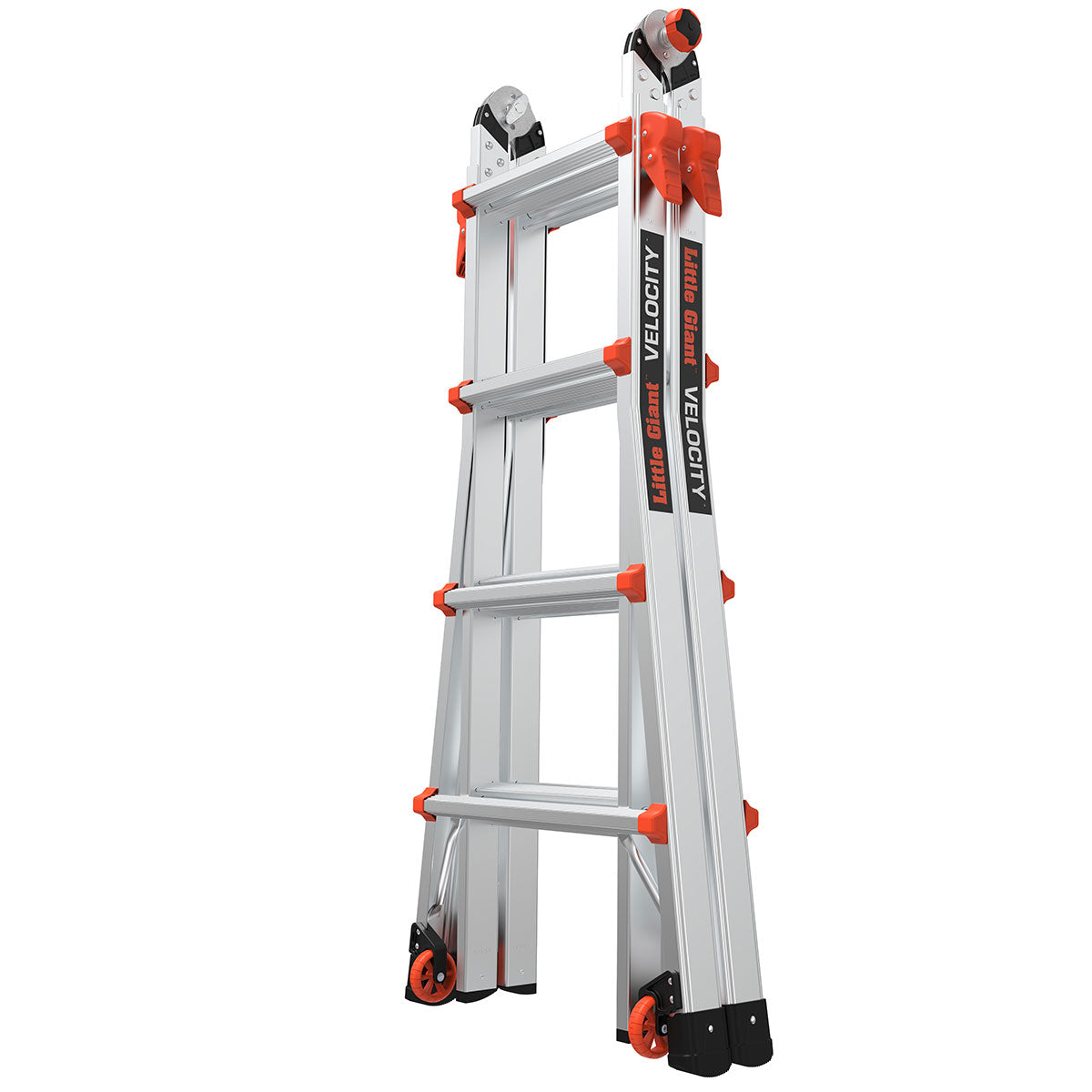

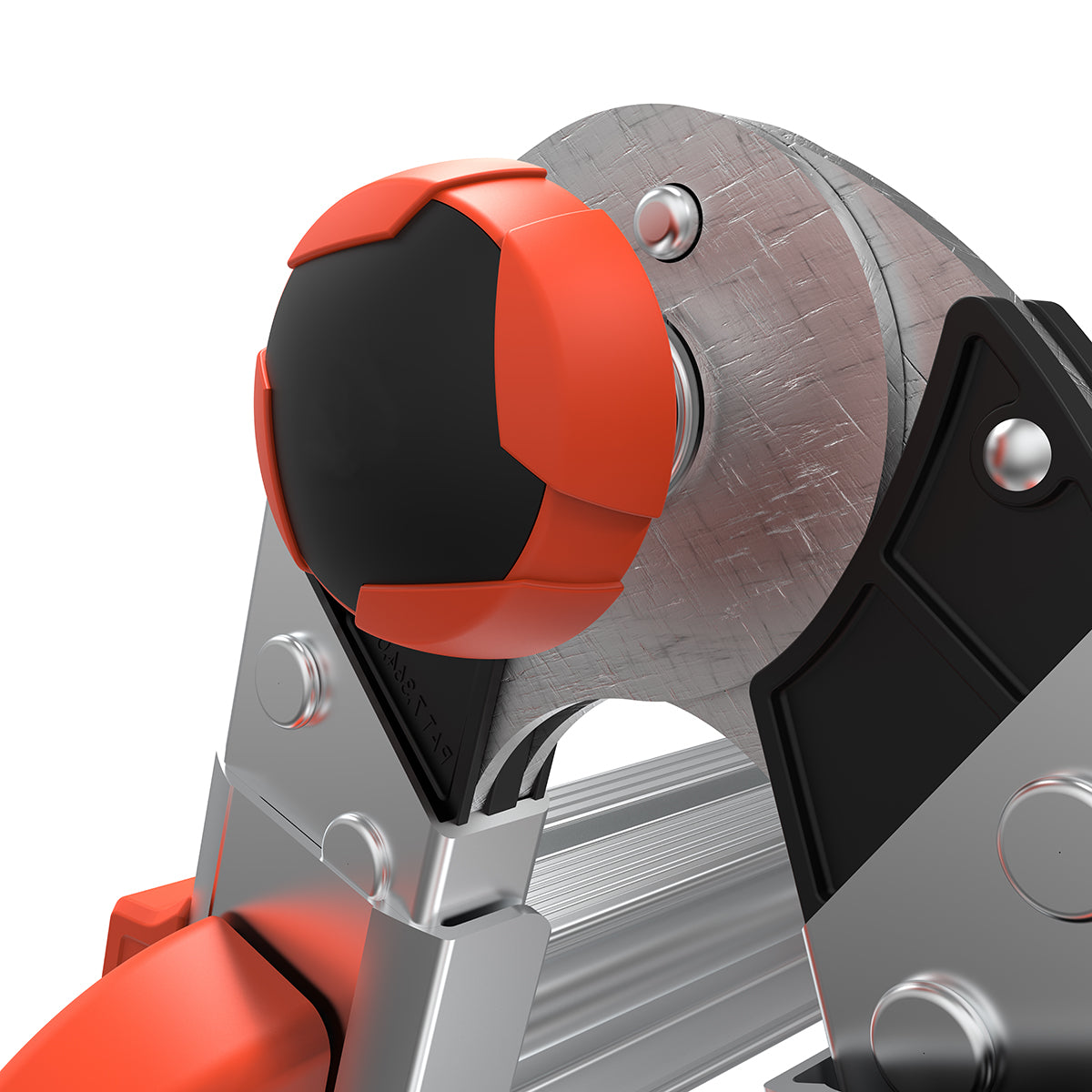

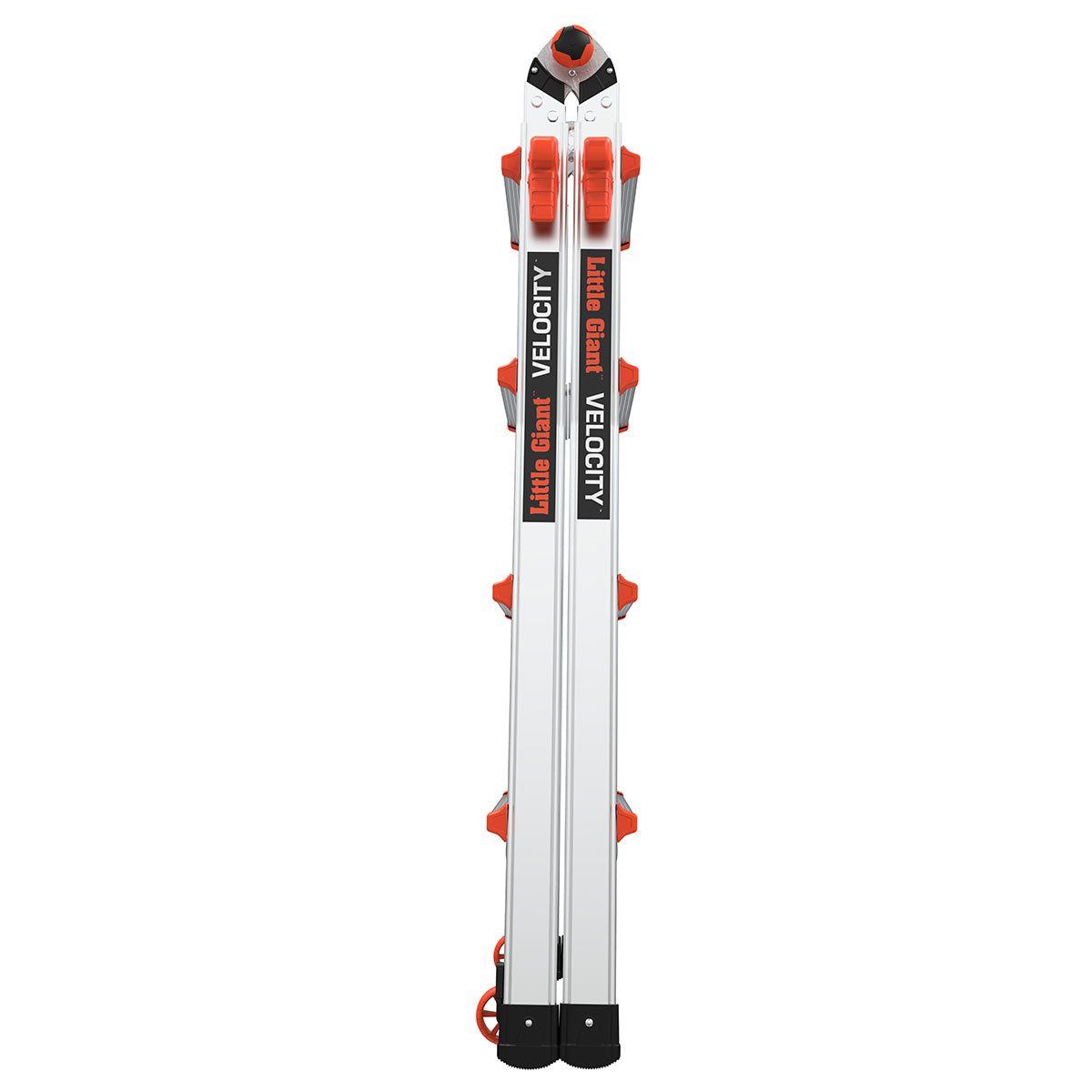

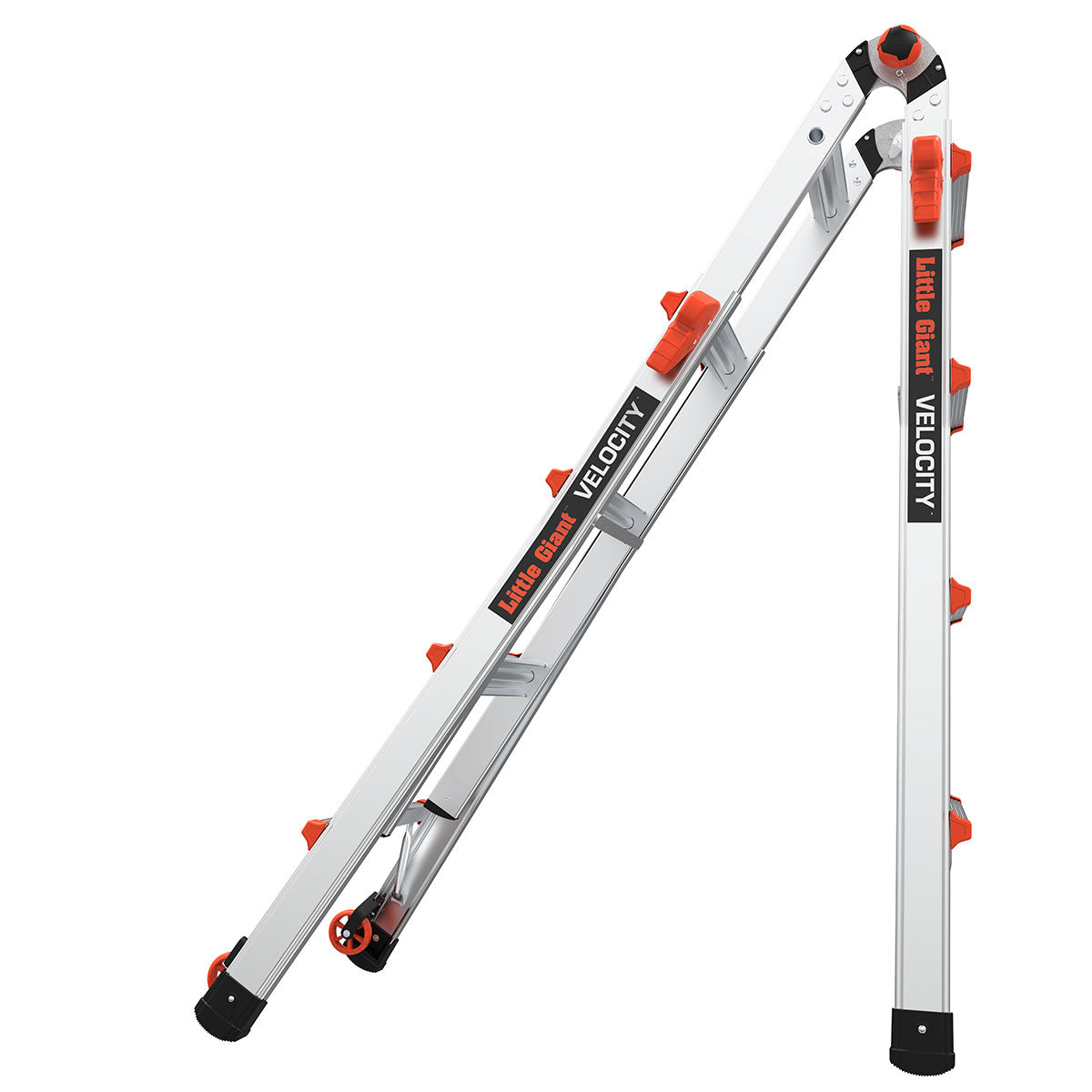

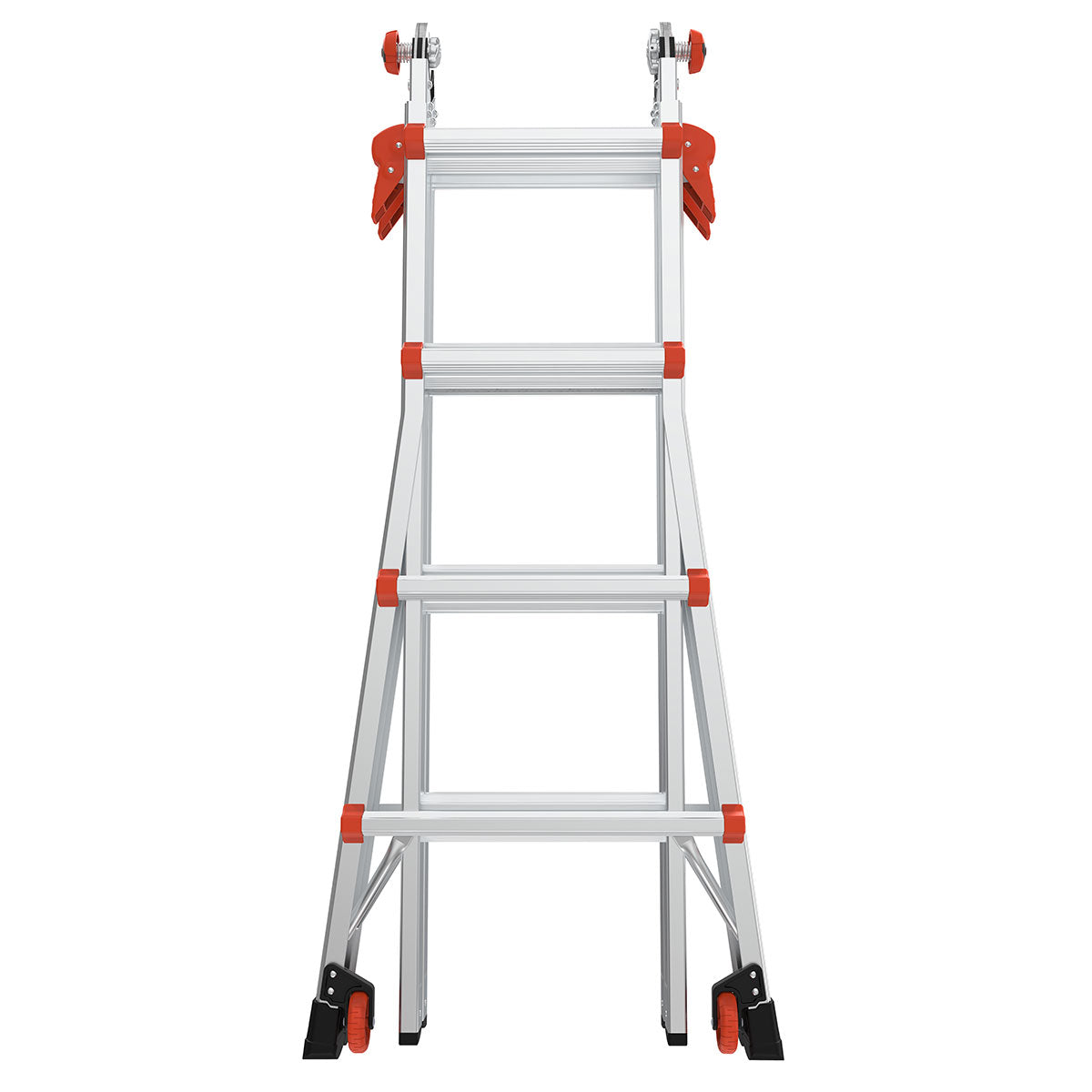

Our Velocity & Work Platform Bundle is the perfect multi-purpose tool for any job. The multi-position articulating ladder adjusts to many configurations, while the patented Rock Lock system ensures fast and secure setup. Palm buttons make adjustments quick and effortless, while the Tip & Glide wheels give superior navigation, stability, and transportability. The bundle is also rated Type IA & 300 lbs. Duty Rating, making it a reliable tool for any project.

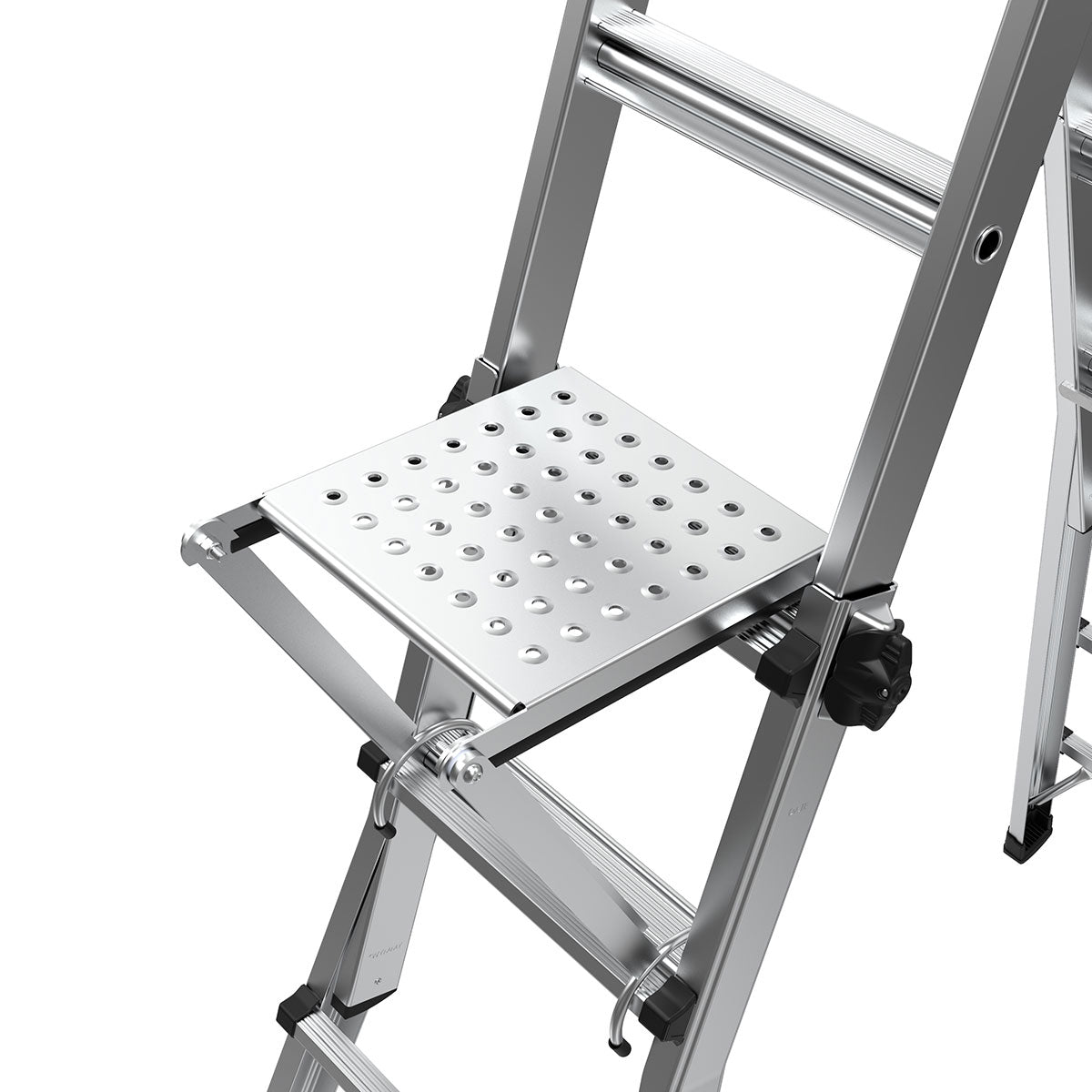

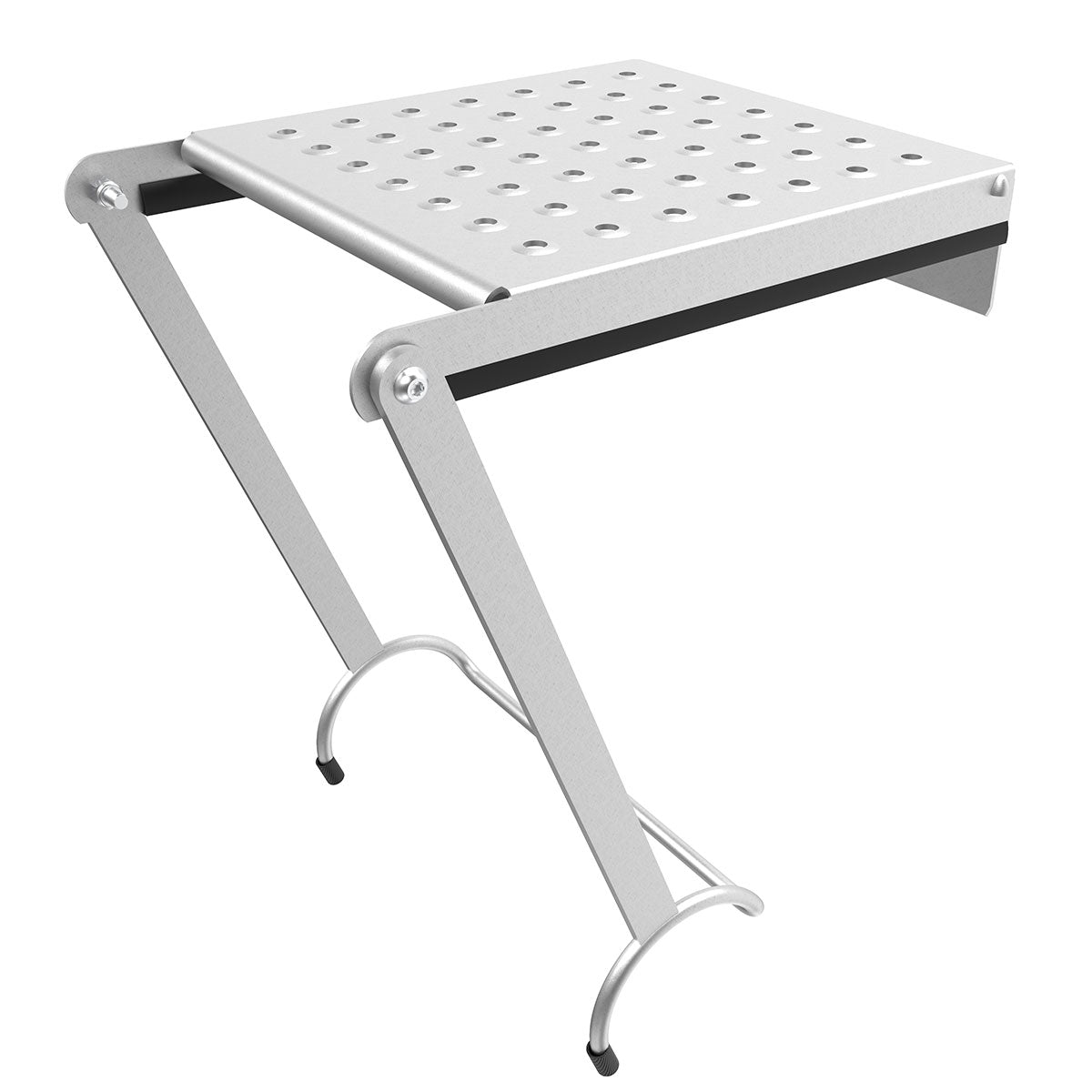

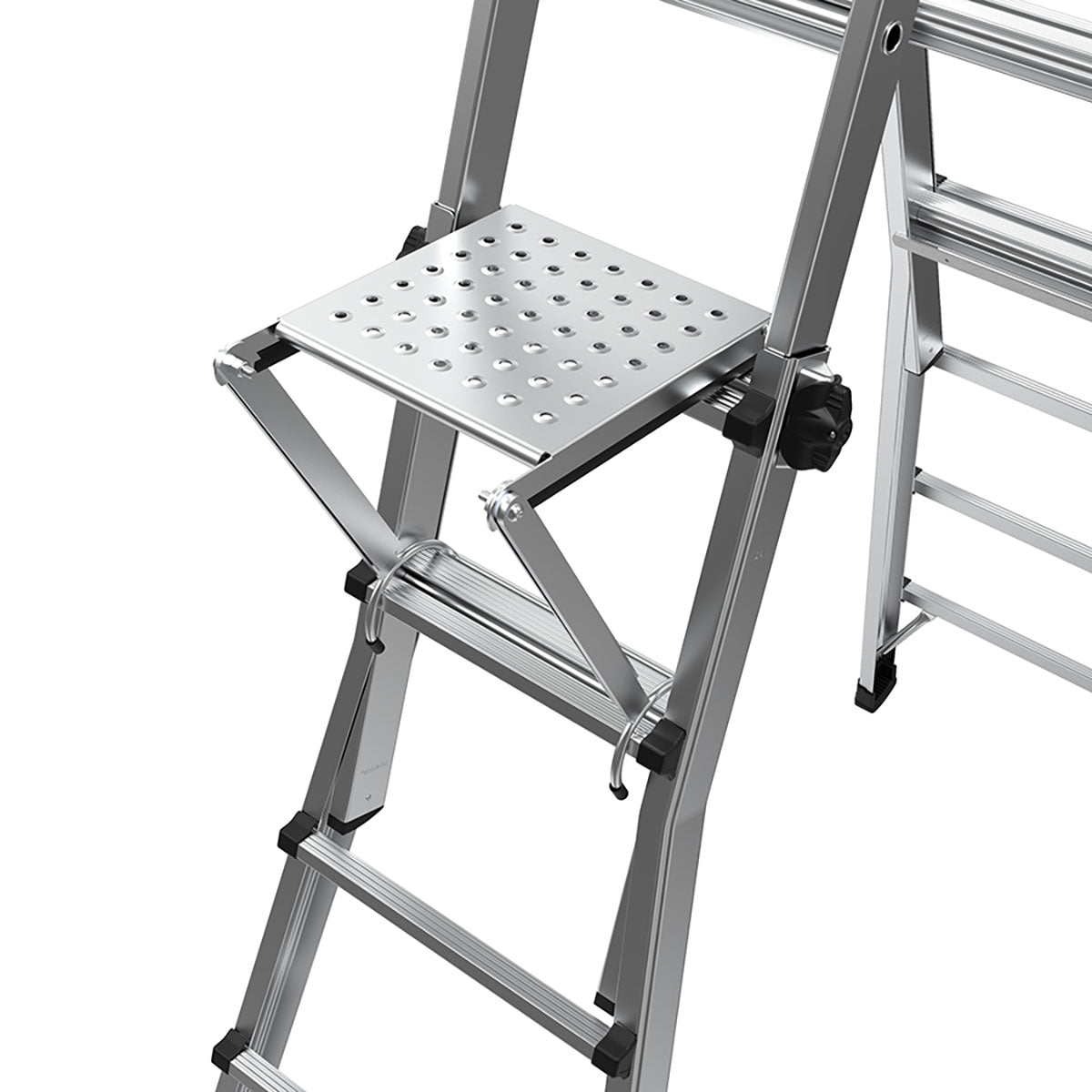

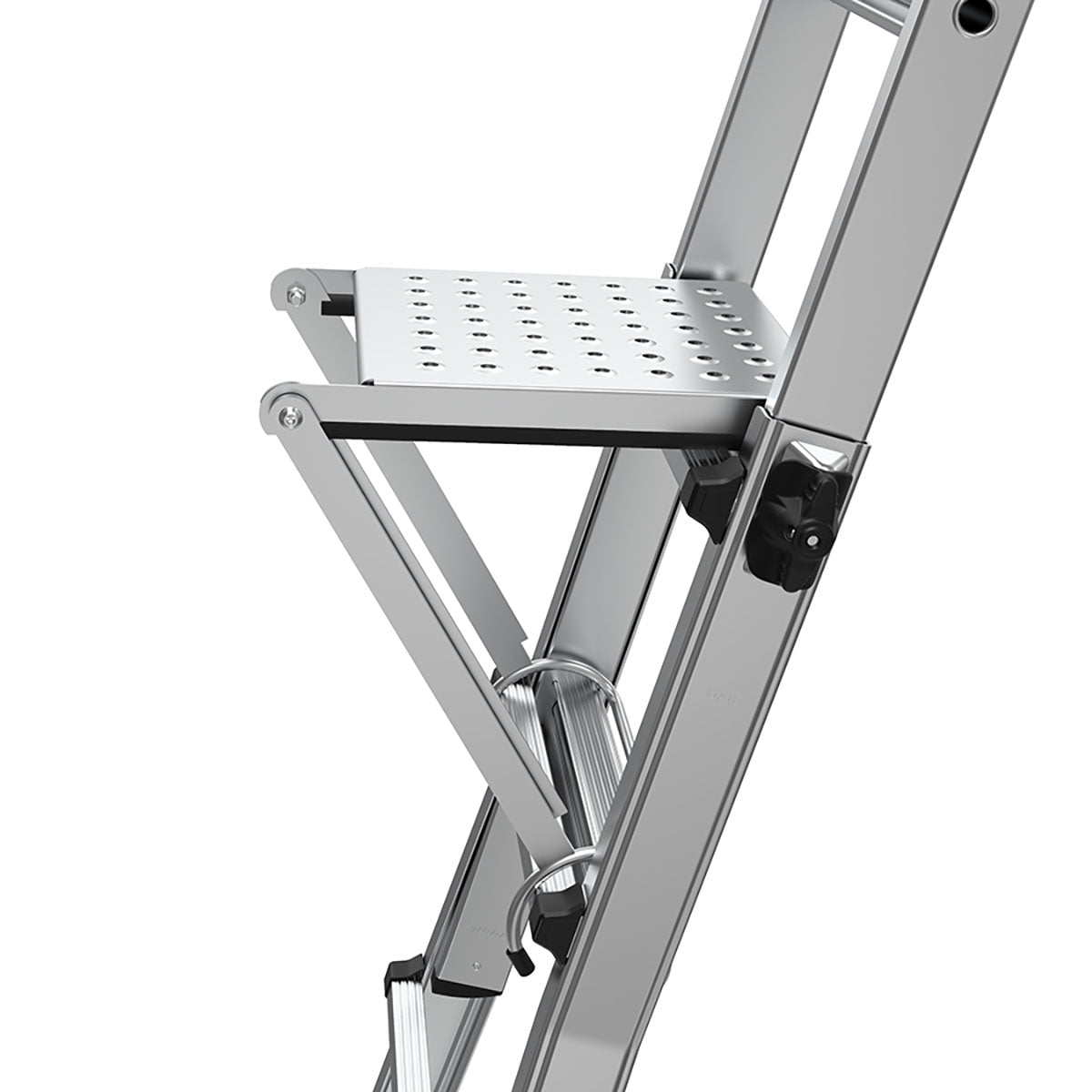

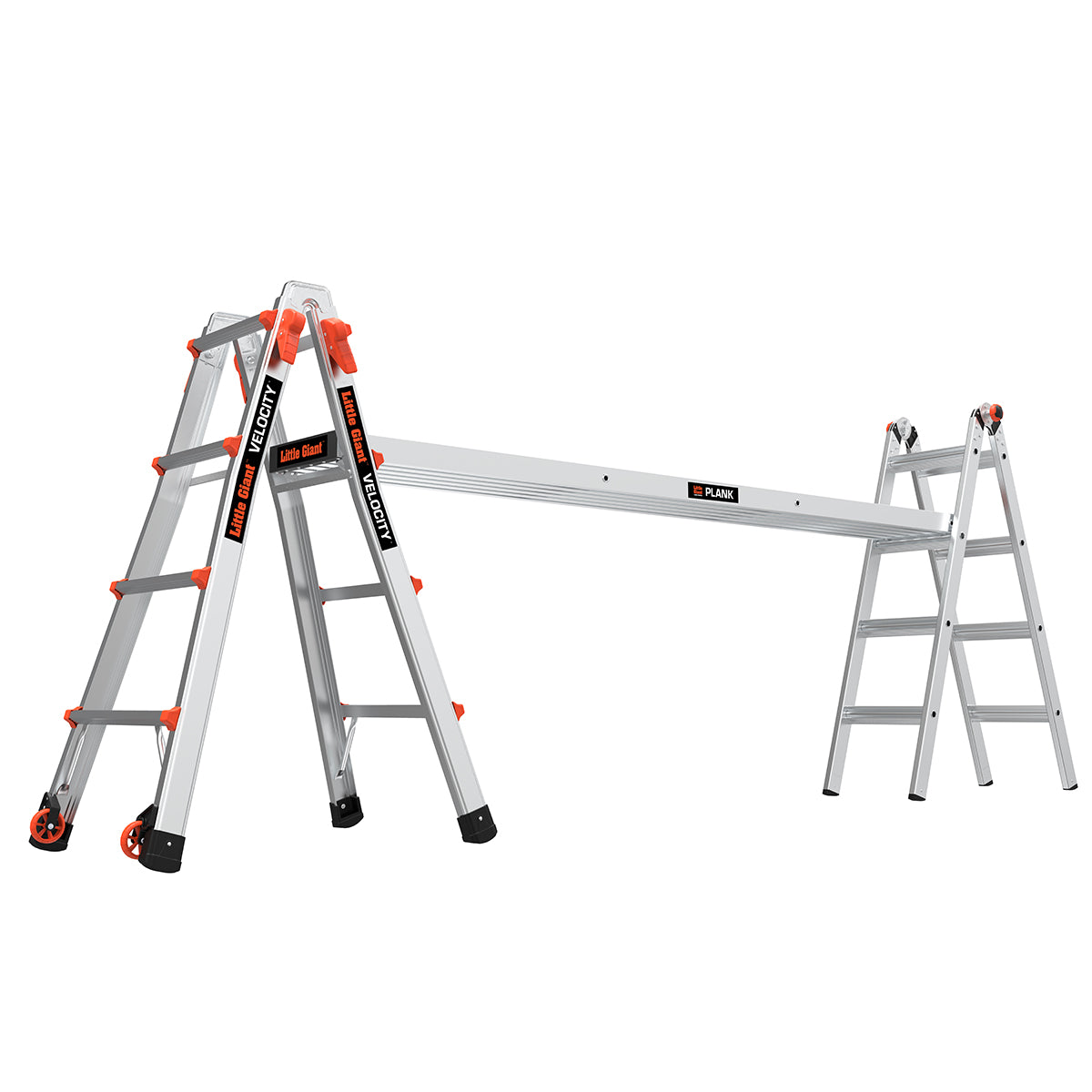

Get the ultimate job done with the Velocity & Work Platform Bundle from Little Giant. This bundle includes the Work Platform which helps you reach and work at heights safely and comfortably. The platform is built with a sturdy frame and a non-slip surface, so you can take on your toughest tasks efficiently and with confidence.
| Model Number | 15417-104 |
| ANSI Duty Rating | Type IA - Extra Heavy Duty |
| Weight Capacity | 300 lbs. |
| Product Material | Aluminum |
| Warranty | Limited Lifetime |
| Product Weight | 30.5 lb |
| Country of Origin | China |
| Storage Depth | 8.5 in |
| Storage Width at Base | 2 ft |
| Feet | Standard non-marring (riveted) |
| Spreader System | Hinge Lock |
| 90° Position | Yes |
| Tip & Glide Wheels™ | Yes |
| V-Bar | No |
| Ratchet Levelers | No |
| Ground Cue | No |
| Air Deck Ports | No |
| Claw | No |
| Stepladder Size | 90 in |
| Stepladder Highest Standing Level | 4.83 ft |
| Stepladder Maximum Footprint | 5.19 ft |
| Stepladder Max. Reach | 11.33 ft |

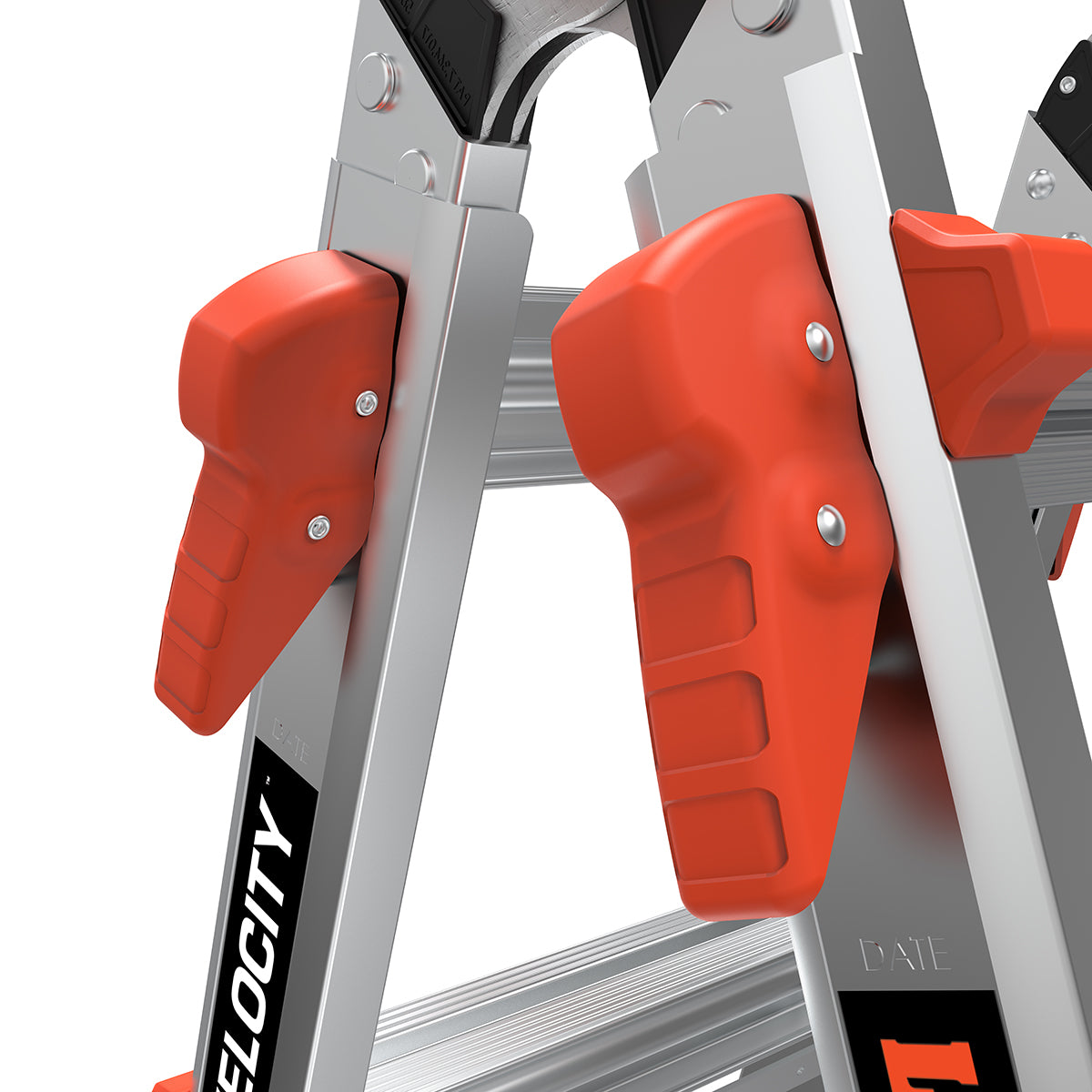

| Extension Lock | Plastic Rock Locks |
| Extension Min Reach | 8.92 ft |
| Extension Minimum Working Length | 8.92 ft |
| Extension Maximum Working Length | 14.92 ft |
| Extension Max Reach | 18.08 ft |
| Extension Total Length of Sections | 17.17 ft |
| Ship length | 4.67 ft |
| Ship Width | 2.04 ft |
| Ship Height | 9 in |
| Ship Weight | 37.5 lb |
Size refers to the ANSI definition of length. ANSI states that the size is defined by the combined length of all rail sections, with a tolerance of +/-3” on each section. Note, this does not take into account any overlap between sliding sections like those on an extension or multi-purpose ladder. This can cause a disparity in the size of the ladder versus the actual height. To determine which ladder you need, Little Giant recommends you reference maximum reach height instead of size.
The terminology for ladder duty ratings, grades, and types can sometimes be confusing. The ladder's duty rating is the maximum safe load capacity of that ladder according to ANSI standards. There are 3 types of ratings that Little Giant offers:
Type I - Made to handle everyday projects. Has a load capacity of 250 lbs.
Type IA- Designed with durability and regular use in mind. Has a load capacity of 300 lbs.
Type IAA- Built for professional performance and rugged use. Has a load capacity of 375 lbs.
Ladder specifications can be confusing due to safety regulation requirements. According to ANSI (American National Standards Institute), the ladder size is defined as the total length of each section and does not account for overlap on extension ladders. As a result, the overlapping sections reduce the total length of the ladder. When purchasing any ladder customers should pay particular attention to the maximum reach to ensure the correct product for the job.
Little Giant Ladders offers replacement parts for products manufactured by Little Giant Ladders only. Please contact Customer Service at 1 (800) 453-1192 or shop online at https://www.littlegiantladders.com/pages/ladder-parts.
When ordering replacement parts, you will need to provide the Little Giant Ladder Model Number and Mark Number or a description of the part you need.
