Model #: 17107-001

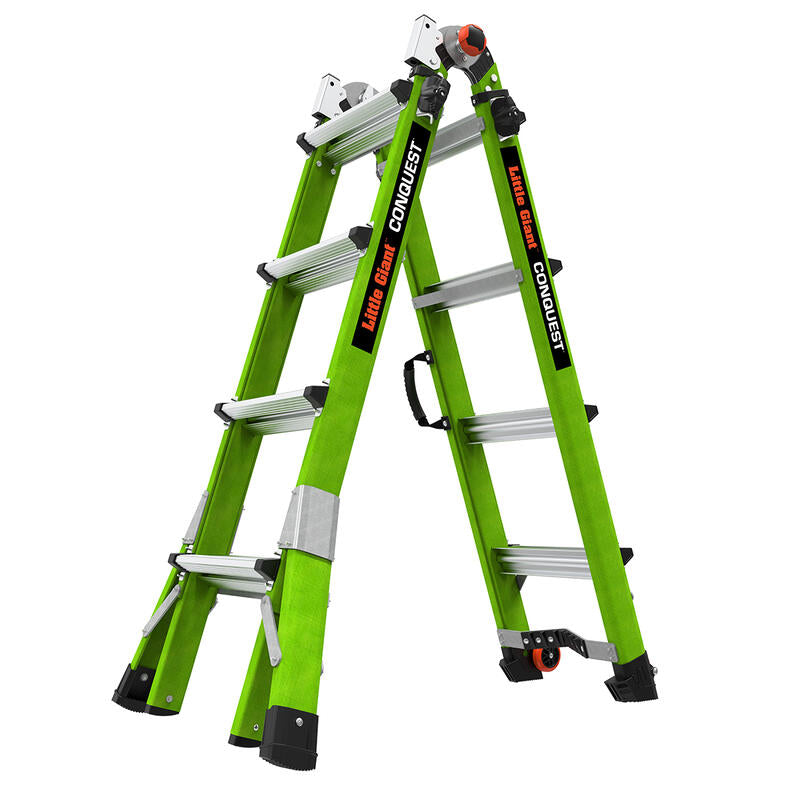

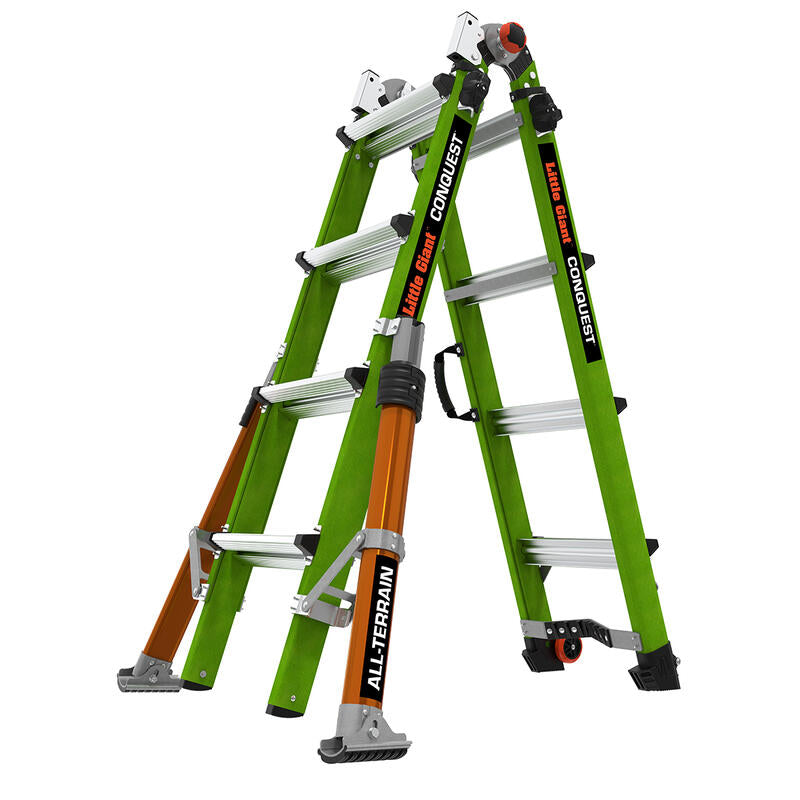

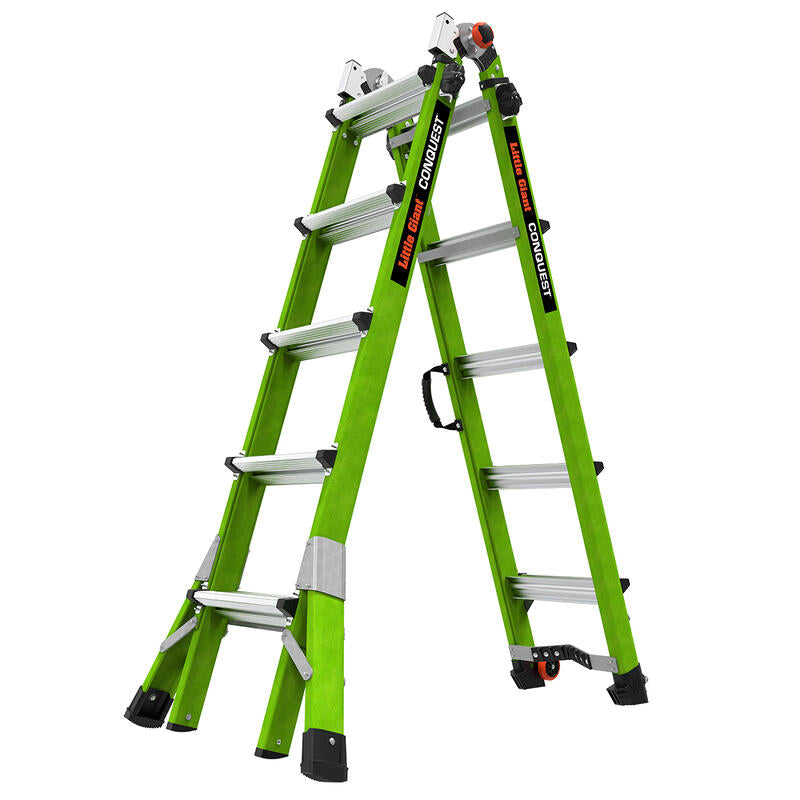

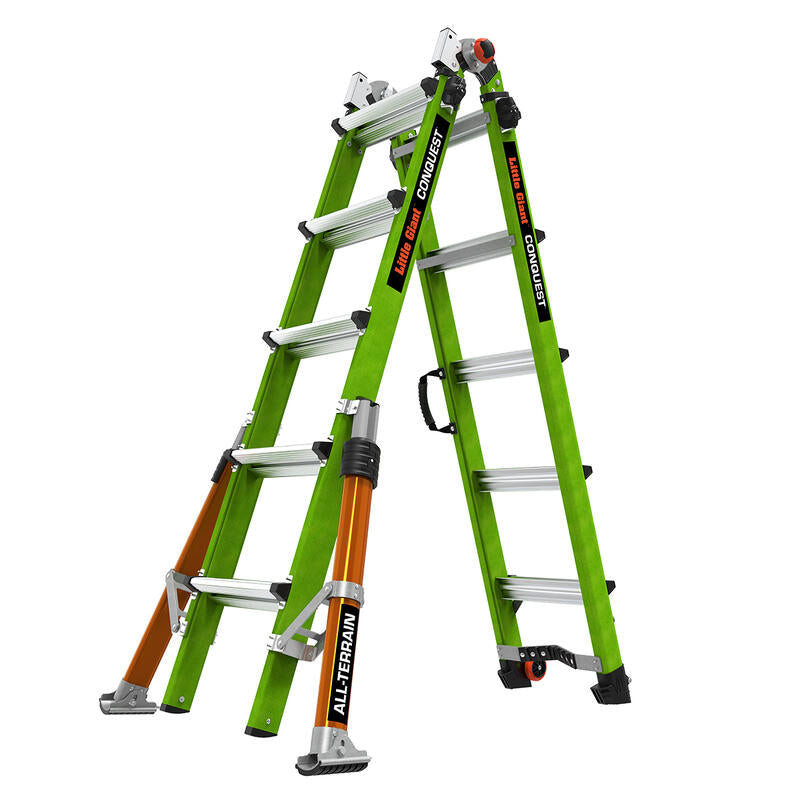

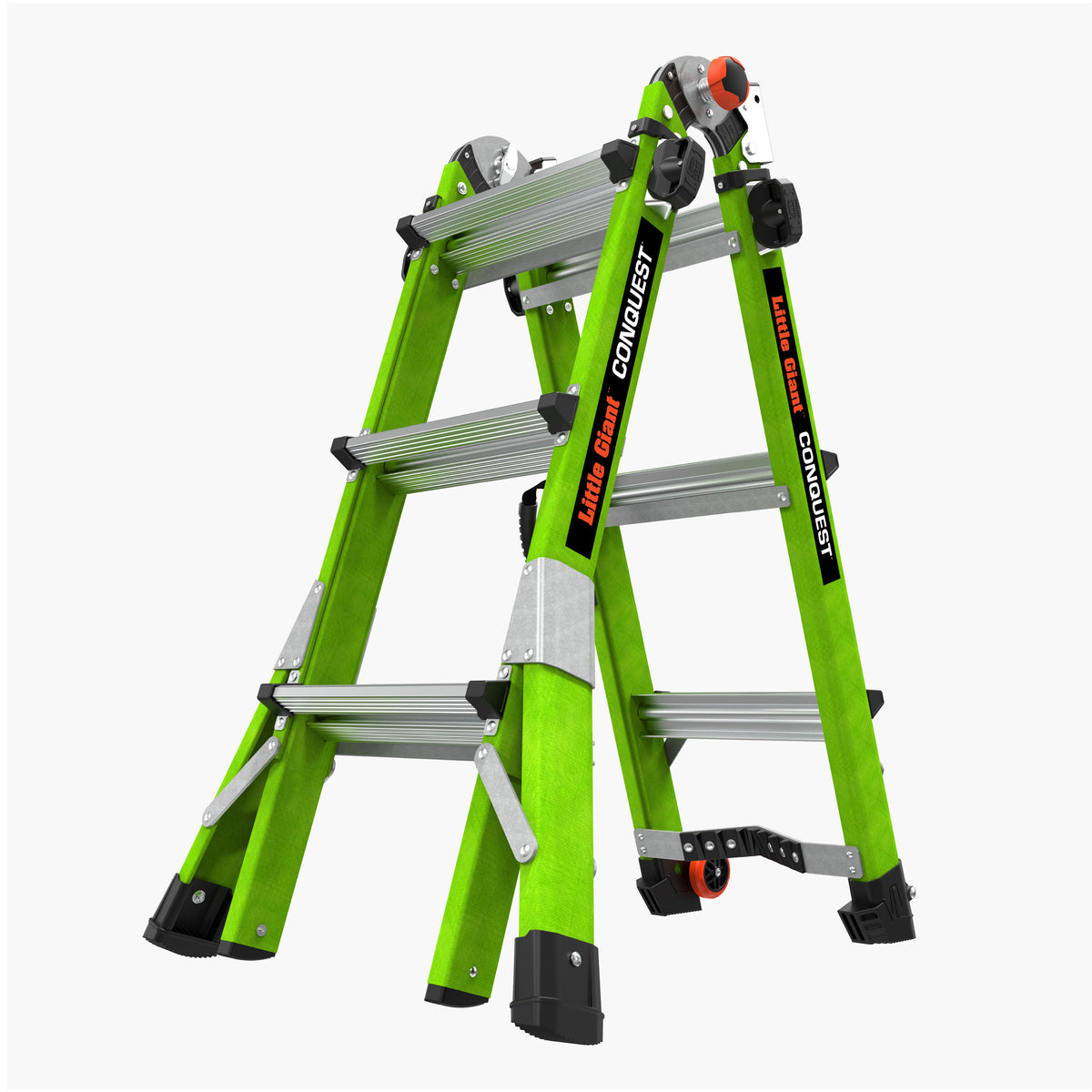

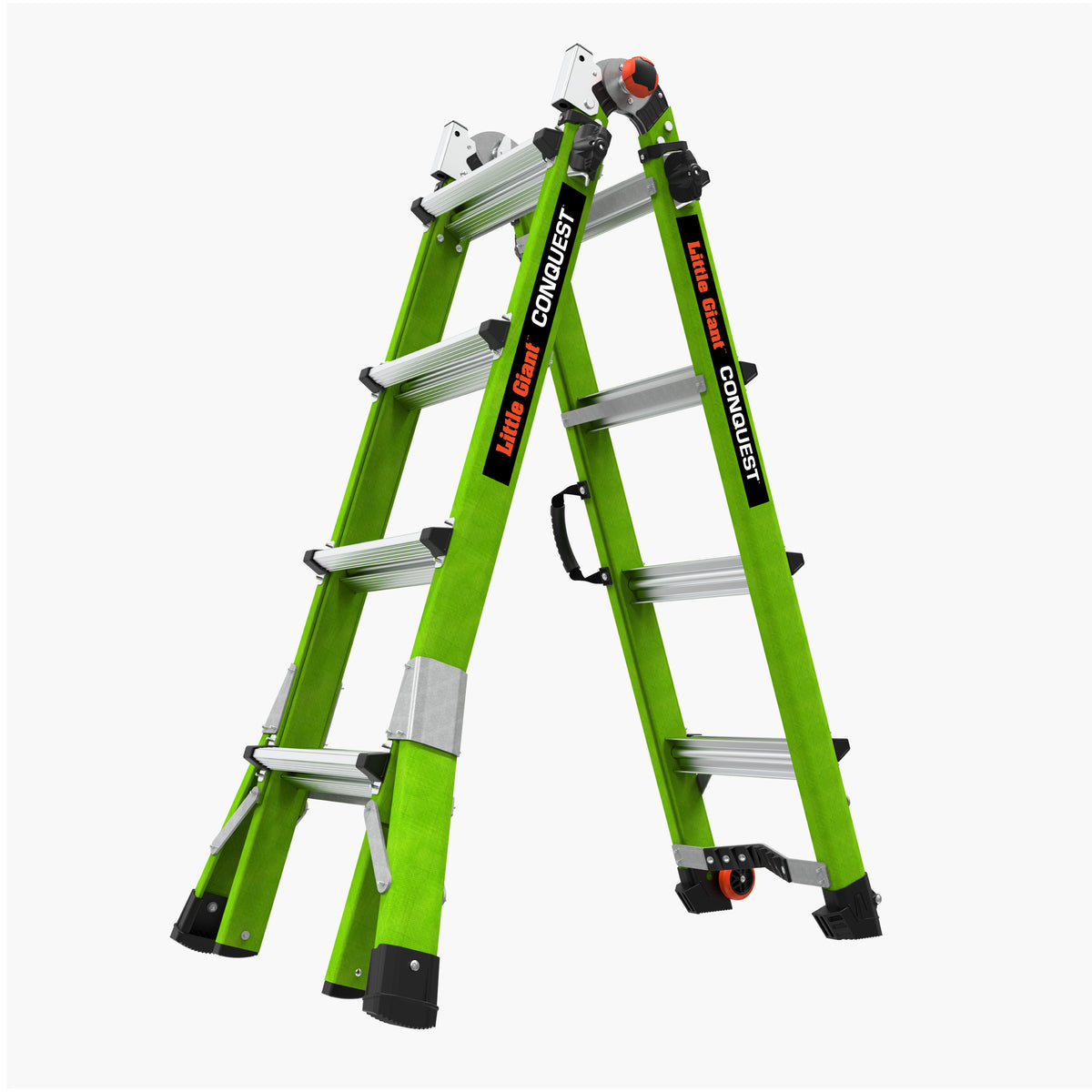

Access a variety of workspaces Little Giant® Conquest™ ladder. This versatile, multi-position ladder will help you get stuff done efficiently.

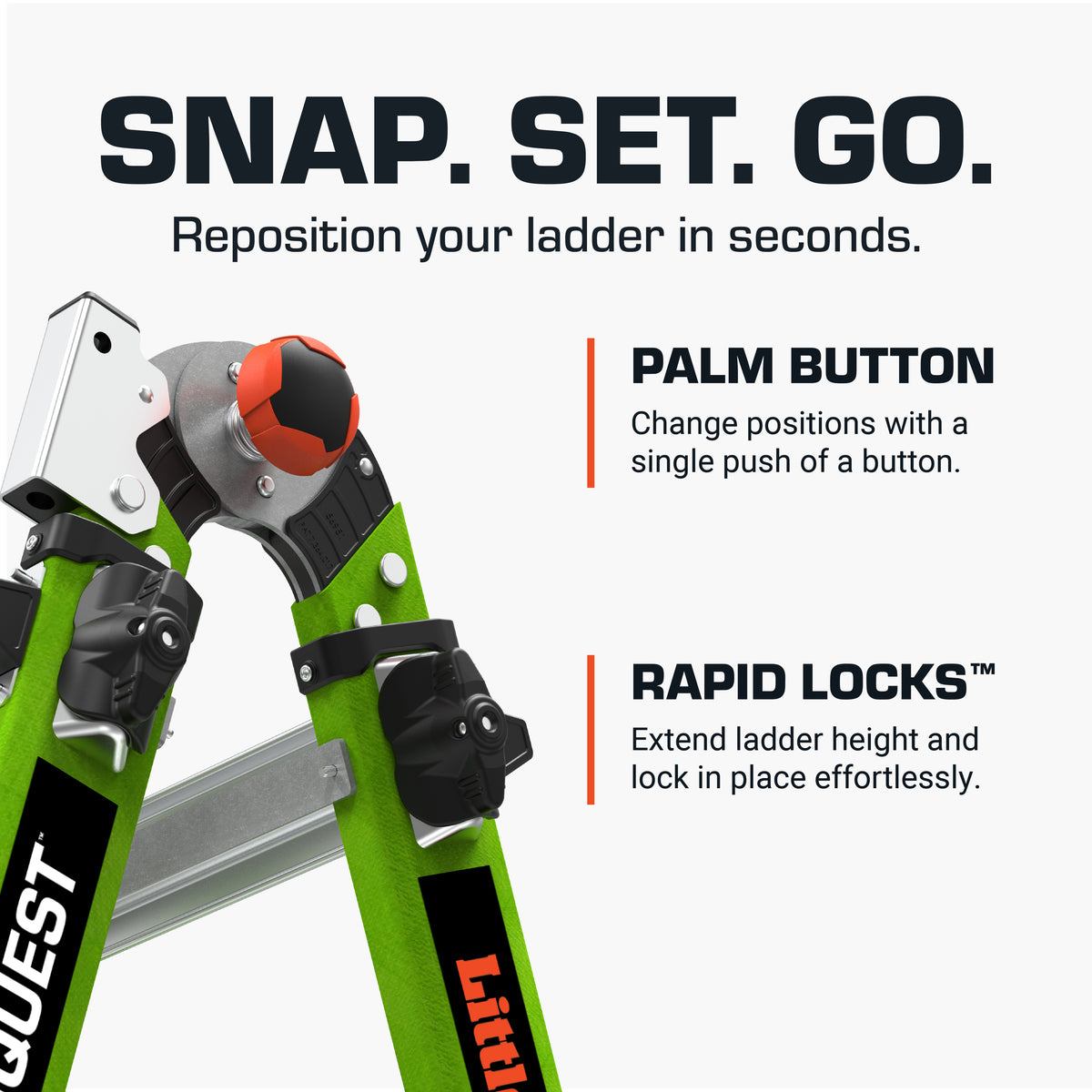

1. PATENTED RAPID LOCK
Grip and twist the Rapid Lock, and then slide the rails of the ladder to the desired size. Twist the Rapid Lock once more to lock the ladder in place.
2. PALM BUTTONS
Move from storage to A-fram, extension and 90 degree configurations by pushing in the ladder's palm buttons.

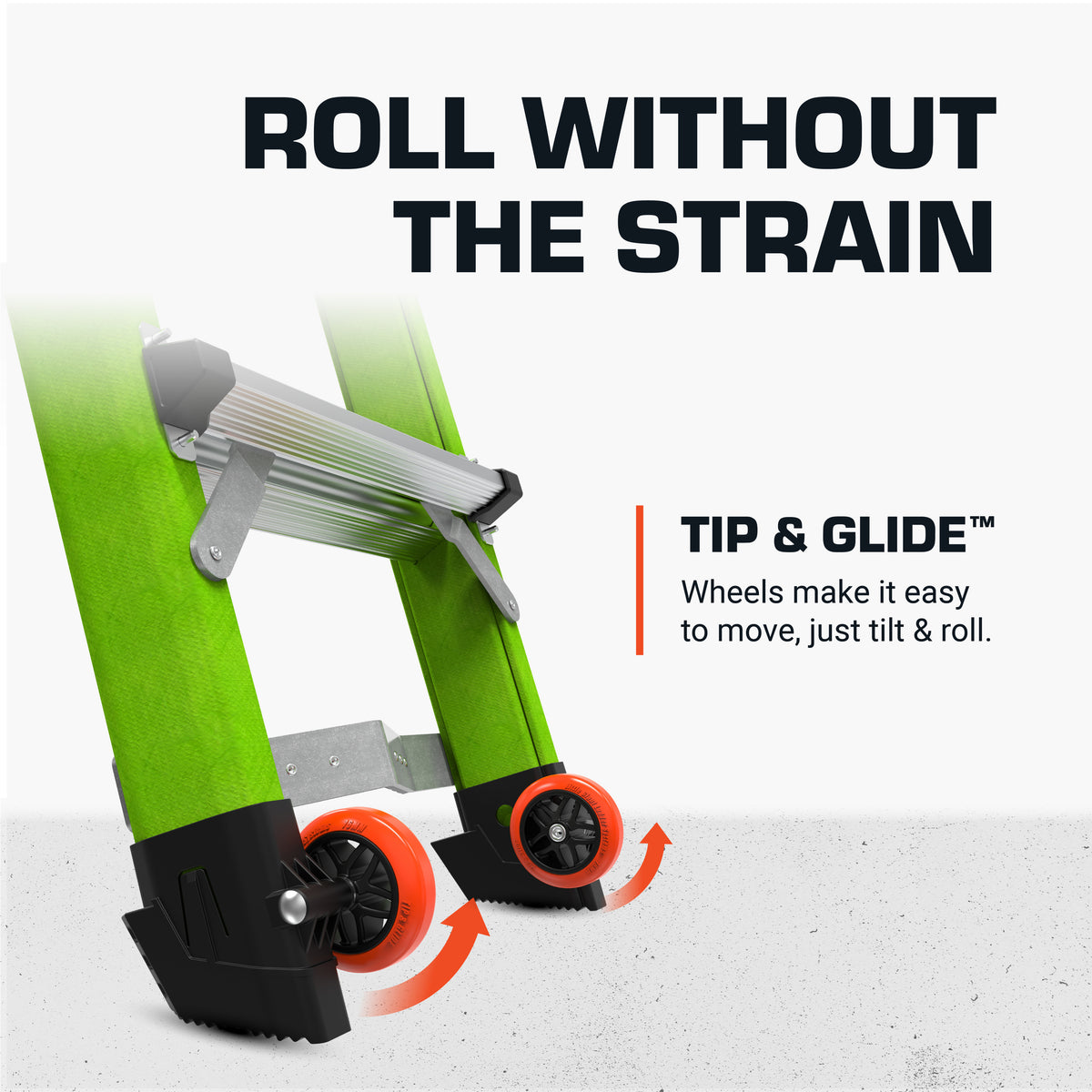

3. TIP & GLIDE WHEELS
The integrated Tip & Glide wheels help you move the ladder easily from job to job.

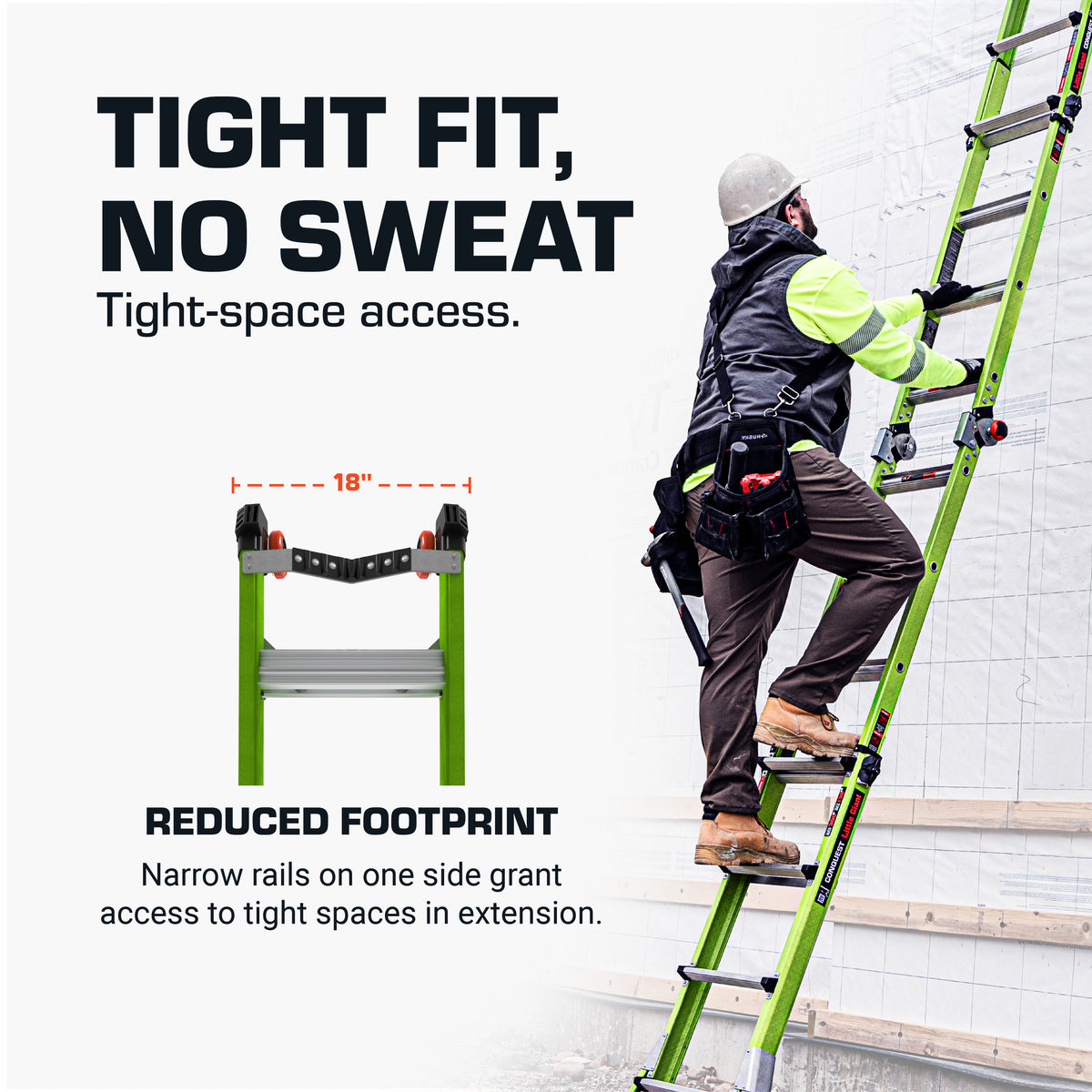

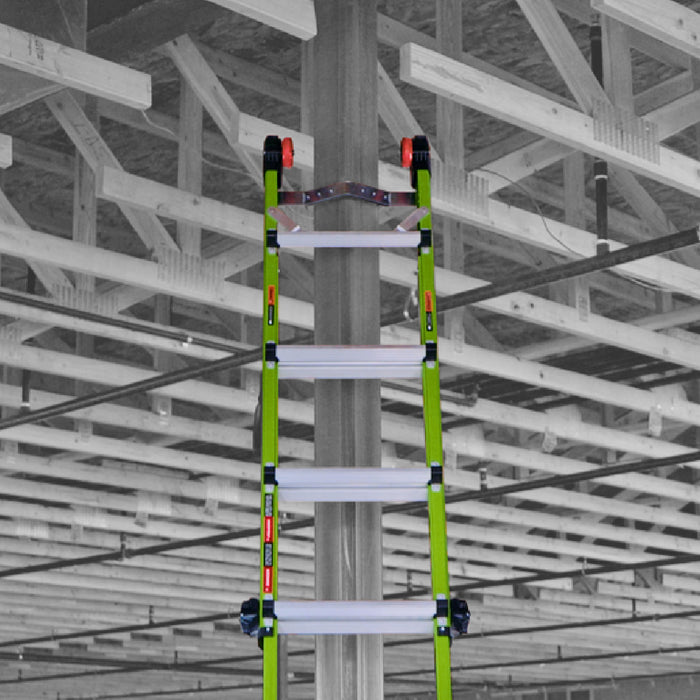

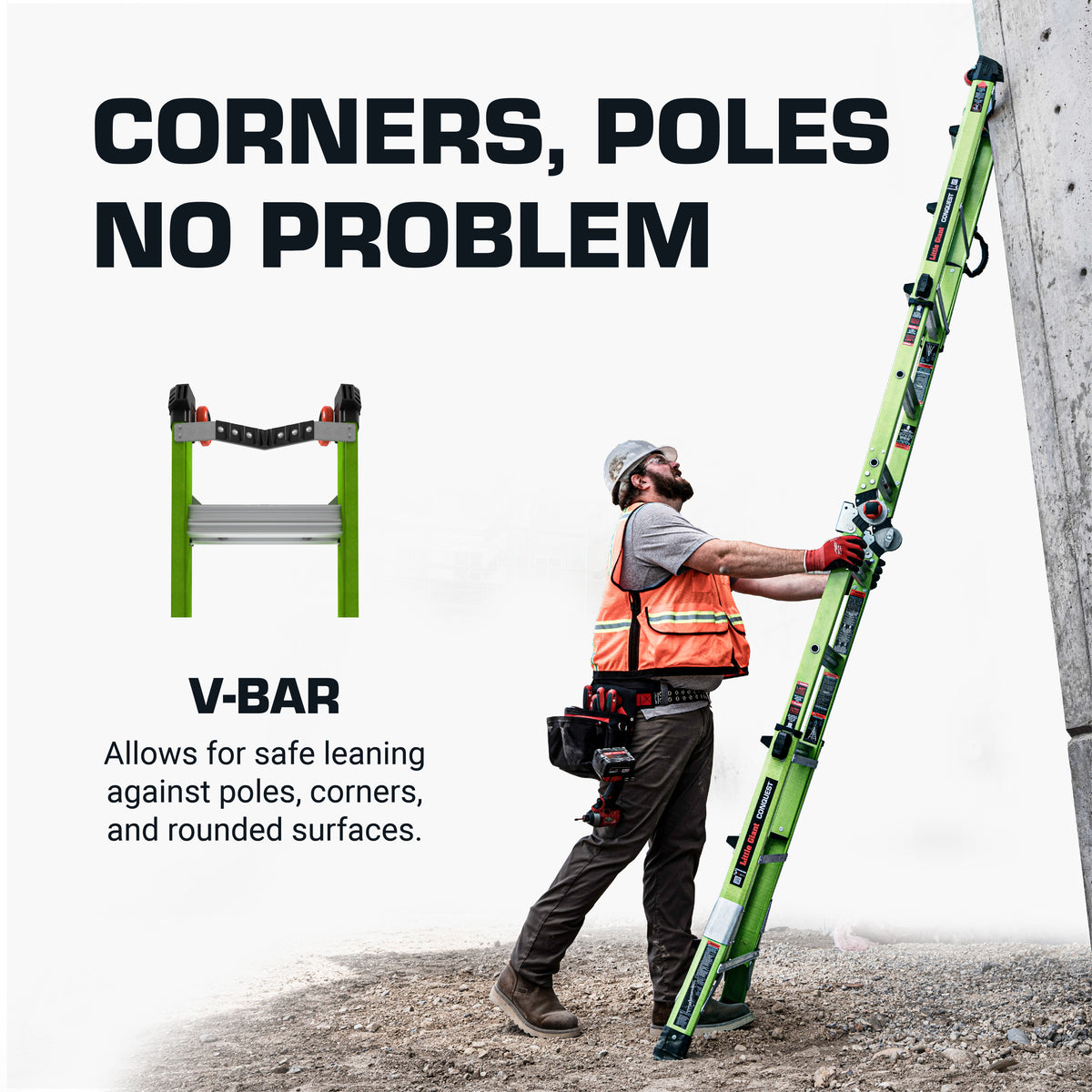

The extension side of the ladder is narrow enough to access tight spaces between wall studs, ceiling trusses and roof or attic access ports, and can be safely set up on poles or outside corners. The wall pad feet are designed for use on inside corners and flat walls without damage to the surface.

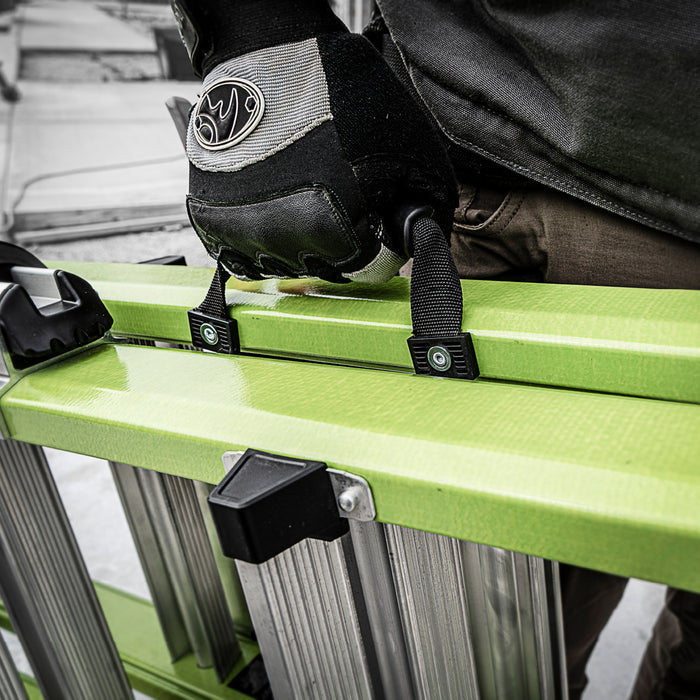

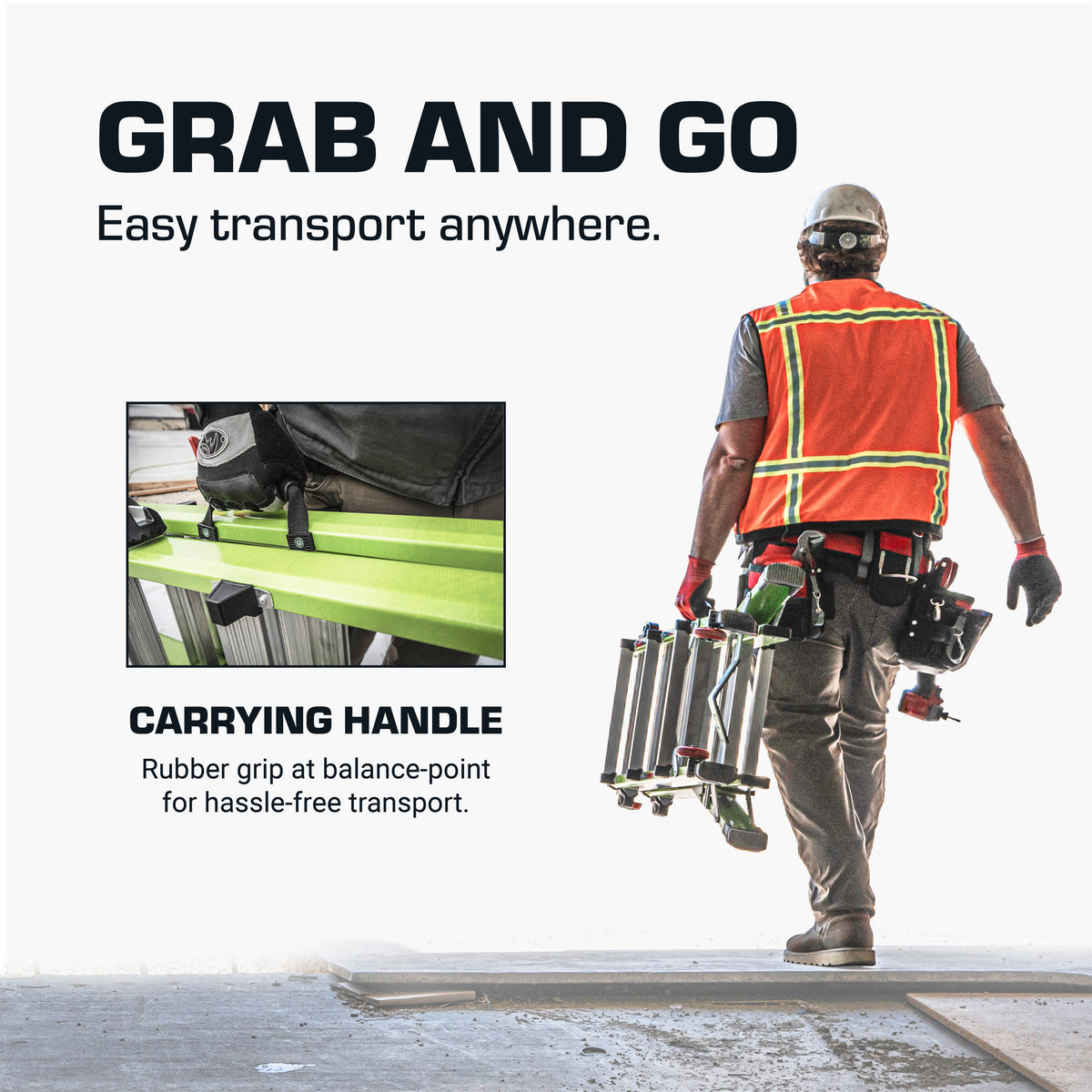

Weight-balanced carrying handle simplifies the transportation of the ladder.

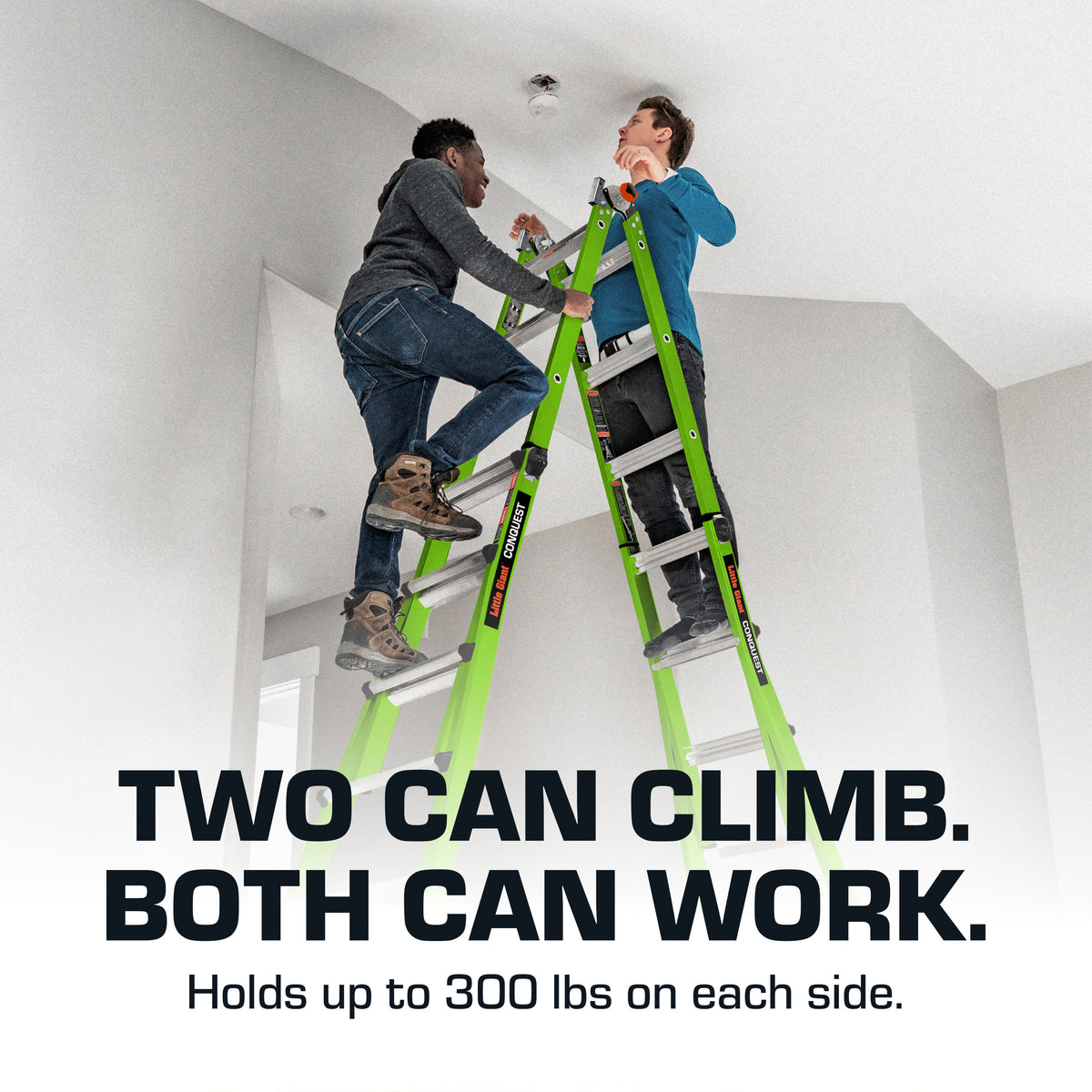

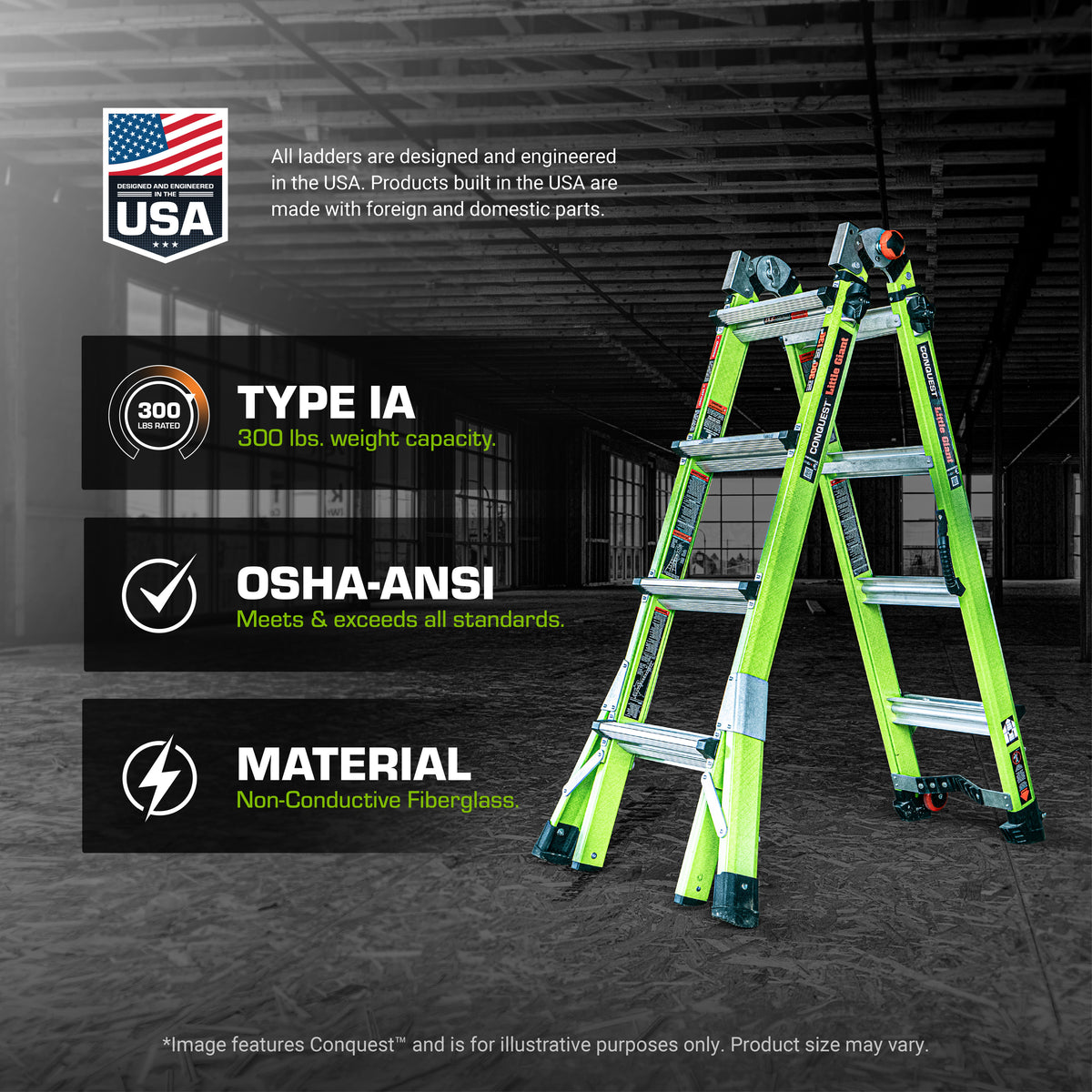

The Conquest meets or exceeds all OSHA and ANSI standards and is Type IA rated to hold 300 lbs. It is available in 17’ and 22’ sizes.
|ANSI Duty Rating||Type IA - Extra Heavy Duty|
|Weight Capacity||300 lbs.|
|Product Weight||42 lb|
|Country of Origin||China|
|Storage Depth||10 in|
|Storage Height||55 in|
|Storage Width at Base||1.71 ft|
|Feet||Standard pick foot|
|Spreader System||Hinge Lock|
|Tip & Glide Wheels™||Yes|

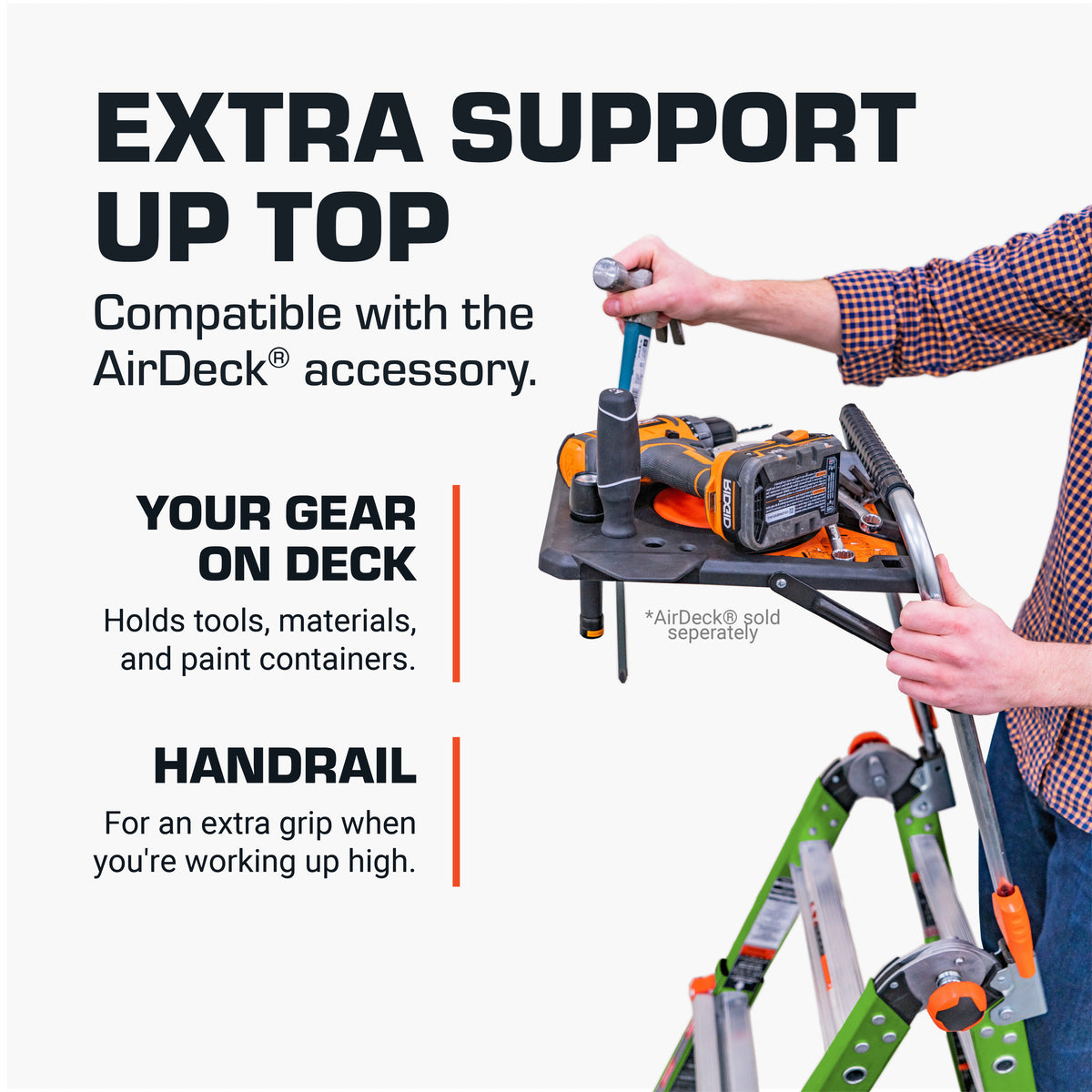

|Air Deck Ports||Yes|
|Ladder Size||15 ft|
|Palm & Hinge Lock System||Plastic / Triple Locking Hinge|
|Height Adjusting Lock||Rapid Lock|
|Inside Clear Width||1.04 ft|
|Inner Rung Depth||1.5 in|
|Outer Rung Depth||1.2 in|
|Rung Size Double Section||4 in|
|Top Width||1.5 ft|
|Highest Standing Level|
|Maximum Footprint||5.33 ft|
|Max Reach||11.33 ft|
|Extension Lock||Rapid Lock|
|Extension Min Reach||8.92 ft|
|Extension Minimum Working Length||8.92 ft|
|Extension Maximum Working Length||14.92 ft|
|Extension Max Reach||18.08 ft|
|Extension Total Length of Sections||17.17 ft|
|Ship length||4.67 ft|
|Ship Width||2.42 ft|
|Ship Height||10 in|
|Ship Weight||47.7 lb|
Size refers to the ANSI definition of length. ANSI states that the size is defined by the combined length of all rail sections, with a tolerance of +/-3” on each section. Note, this does not take into account any overlap between sliding sections like those on an extension or multi-purpose ladder. This can cause a disparity in the size of the ladder versus the actual height. To determine which ladder you need, Little Giant recommends you reference maximum reach height instead of size.
The terminology for ladder duty ratings, grades, and types can sometimes be confusing. The ladder's duty rating is the maximum safe load capacity of that ladder according to ANSI standards. There are 3 types of ratings that Little Giant offers:
Type I - Made to handle everyday projects. Has a load capacity of 250 lbs.
Type IA- Designed with durability and regular use in mind. Has a load capacity of 300 lbs.
Type IAA- Built for professional performance and rugged use. Has a load capacity of 375 lbs.
Ladder specifications can be confusing due to safety regulation requirements. According to ANSI (American National Standards Institute), the ladder size is defined as the total length of each section and does not account for overlap on extension ladders. As a result, the overlapping sections reduce the total length of the ladder. When purchasing any ladder customers should pay particular attention to the maximum reach to ensure the correct product for the job.
Little Giant Ladders offers replacement parts for products manufactured by Little Giant Ladders only. Please contact Customer Service at 1 (800) 453-1192 or shop online at https://www.littlegiantladders.com/pages/ladder-parts.
When ordering replacement parts, you will need to provide the Little Giant Ladder Model Number and Mark Number or a description of the part you need.
