Leveler

Product #: 16617-801

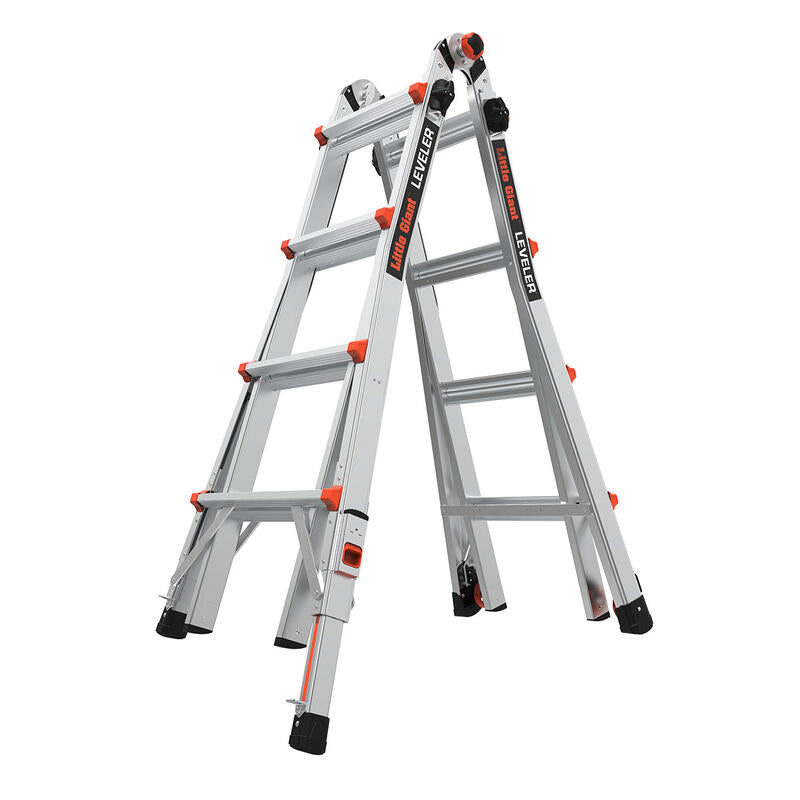

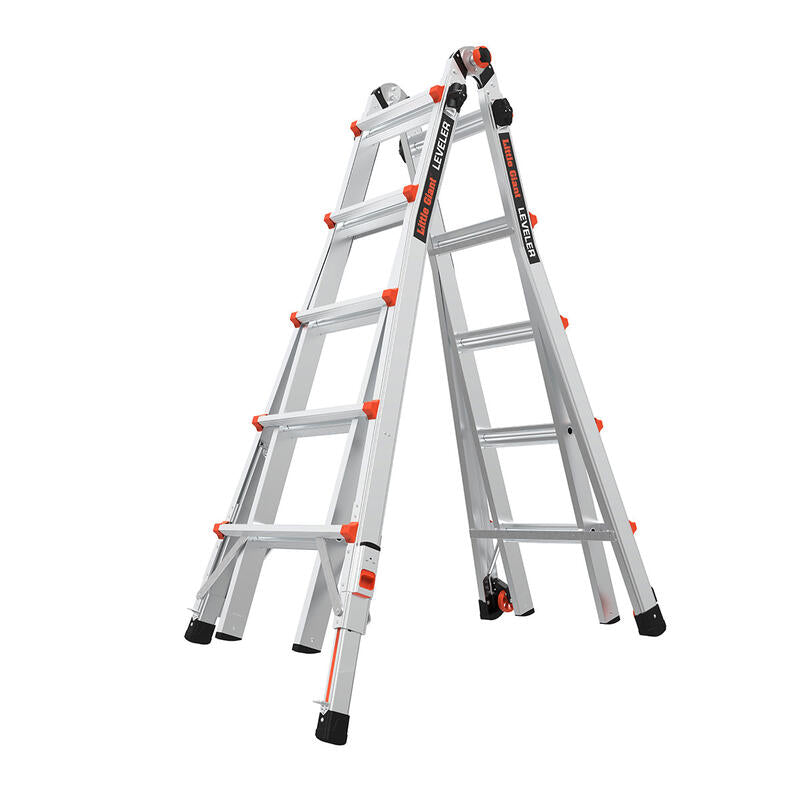

  • The Leveler

    Adjustable Leg Ladder



    Using a ladder outdoors has always had its challenges, but the Little Giant® Leveler™ is an adjustable leg ladder that changes that experience. Whether you work on uneven ground or set up your ladder on a staircase, the Leveler can handle it without the need for a leveling accessory. Meeting or exceeding all OSHA and ANSI standards, the Leveler is rated to hold 300 lbs. in all configurations. In its A-frame position, this adjustable leg ladder will hold 300 lbs. on both sides.

    The Leveler Adjustable Leg Ladder


    FEATURES

    1. PATENTED RAPID LOCKS

    The rapid locks adjusters on the ladder's rails allow for quick and easy height and position adjustment.

    2. PALM BUTTONS

    Move from storage to A-frame to extension ladder configurations by pushing in the ladder's palm buttons.

    3. NON-SLIP FEET

    The Leveler's sturdy, non-slip feet keep your adjustable leg ladder in place while you work. Complete your tasks with total confidence.

    4. ADJUSTABLE LEG LEVELING

    Uneven terrain? Not a problem. This is a ladder with adjustable legs. With the Ratchet™ leg levelers, you can adjust the ladder’s legs in seconds, allowing you to stabilize the ladder on unlevel ground. The retractable legs yield more than 7 inches of leveling adjustment.

    4. SCAFFOLDING

    The Leveler™ can be converted into a trestle-and-plank scaffolding system by removing the outer section of the ladder and using trestle brackets to connect the outer sections. By attaching a Plank between the two trestles, you can cover a larger workspace, helping you work faster. Trestle brackets and Plank sold separately.


    ACCESSORIES (Not all compatible accessories included)

    1. CARGO HOLD

    The Cargo Hold fits on the top rung of the adjustable leg ladder, giving you a space to comfortably put your tools while working.

    2. LADDER RACK

    The Ladder Rack helps you save space and stay organized, all while protecting your ladder from any potential damage.

    3. WORK PLATFORM

    The Work Platform is a ladder accessory that doubles as a comfortable standing platform or tool holder and is rated to hold up to 375 lbs.

  • Leveler Specs

    Weight Capacity 375 lbs.
    Warranty Limited Lifetime
    Model Number 16617-801
    90° Position Yes
    ANSI Duty Rating Type IAA - Special Duty
    Country of Origin China
    Feet Standard non-marring (riveted)
    Product Weight 35 lb
    Product Material Aluminum
    Palm & Hinge Lock System Plastic / Triple Locking Hinge
    Ship length 4.67 ft
    Ship Width 2.08 ft
    Ship Height 8 in
    Spreader System Hinge Lock
    Tip & Glide Wheels™ Yes
    V-Bar No
    Ratchet Levelers Yes
    Ground Cue No
    Air Deck Ports No
    Claw No
    Scaffolding Position Yes
  • What’s the difference between model size and extension height?

    You may have noticed that our model sizing is taller than the actual extension height of any telescoping Little Giant ladder. This is due to the requirements of US ladder standards, published by the American National Standards Institute (ANSI): A14.2 for aluminum ladders and A14.5 for fiberglass ladders. These standards dictate that ladder model size should be displayed as the total rail length of each section of a ladder. All US manufacturers use the same sizing system in order to comply with ANSI. Extension ladders, articulating ladders and other multipurpose ladders often have multiple sections, so the ANSI-compliant size is the sum of the lengths of each section, not the actual maximum extended height. Please refer to the individual ladder’s instruction manual for details on maximum working length, highest standing level and maximum reach. We’ve described a few of these measurements in detail below.

  • What is maximum working length?

    The final locks on any telescoping ladder sections will adhere to ANSI requirements, meaning there will be an appropriately sized overlap between inner and outer railing when fully extended. The maximum working length is the length of the ladder at its final locked extension length.

  • What is highest standing level?

    Depending on the ladder and configuration, ANSI standards dictate that certain rungs (such as the ladder top cap or top step of an A-frame ladder) should not be used as a step. The highest standing level takes those standards into consideration and measures the highest ANSI-approved standing rung when the ladder is extended to maximum working length.

  • What is maximum reach?

    Maximum reach (or “max reach”) is the combination of the ladder’s highest standing level and a common user’s reach height. The reach height addition is based on a 5'6" [1.68 m] person with a 12" [30 cm] vertical reach. The term is used in ladder merchandising throughout the climbing solutions industry to help users quickly comprehend which projects are compatible with which ladders.
