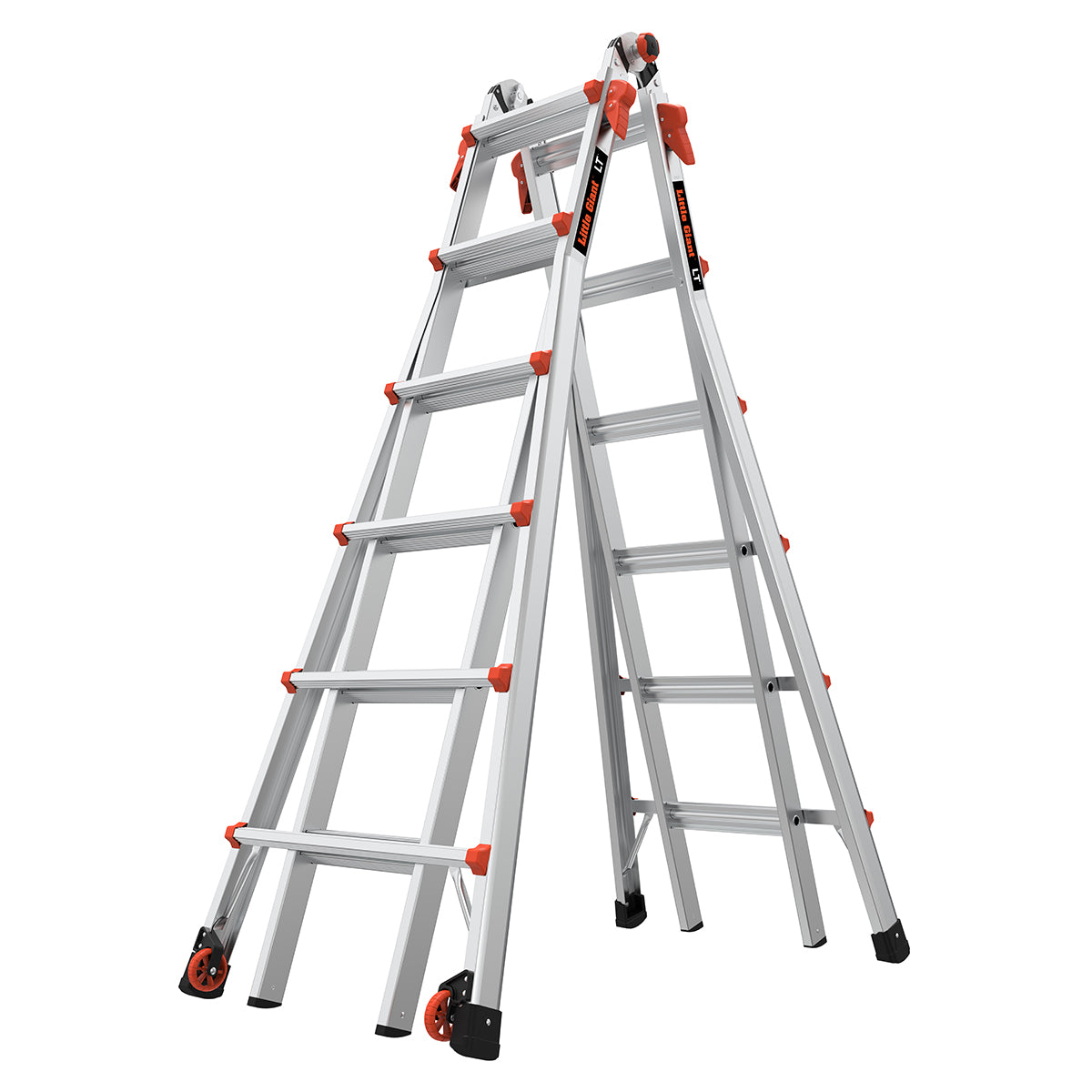

LT

Regular price $0.00
Regular price Sale price $0.00
Shipping calculated at checkout.

Model #: 14313-001

Description

The Little Giant LT multipurpose ladder system includes several innovative features such as the dual-pin hinge and the easy-to-use Rock Locks for quick adjustment. You can use LT Model in many unique configurations— an A-frame, extension, staircase and 90-degree ladder, and with Trestle Brackets (sold separately) to form a trestle-and-plank scaffolding system. The LT’s wide-flared legs and aerospace-grade aluminum construction provide an unmatched feeling of safety and stability. The Little Giant LT is rated to hold 300 pounds on both sides and is a true two-person ladder. The wide-flared legs offer improved side-tip stability and create a wide, stabile footprint at the top of your extension ladder. The LT meets or exceeds all OSHA, ANSI, and CSA standards and is rated Type IA – 300 lbs.

Specs

Specifications

Model Number 14313-001
ANSI Duty Rating Type IA - Extra Heavy Duty
Weight Capacity 300 lbs.
Product Material Aluminum
Warranty Limited Lifetime
Product Weight 25 lb
Country of Origin China
Storage Depth 8 in
Storage Height 43 in
Storage Width at Base 1.92 ft
Feet Standard non-marring (riveted)
Spreader System Hinge Lock

Features

90° Position Yes
Tip & Glide Wheels™ No
V-Bar No
Ratchet Levelers No
Ground Cue No
Air Deck Ports No
Claw No
Scaffolding Position Yes

A-Frame

Ladder Size 11.08 ft
Palm & Hinge Lock System Plastic / Triple Locking Hinge
Height Adjusting Lock Plastic Rock Locks
Inside Clear Width 1.04 ft
Inner Rung Depth 1.4 in
Outer Rung Depth 1 in
Rung Size Double Section 3 in
Top Width 1.5 ft
Highest Standing Level
Maximum Footprint 3.94 ft
Max Reach 9.42 ft

Extension

Extension Lock Plastic Rock Locks
Extension Min Reach 6.92 ft
Extension Minimum Working Length 6.92 ft
Extension Maximum Working Length 10.92 ft
Extension Max Reach 14.25 ft
Extension Total Length of Sections 13.17 ft


Shipping Specifications

Ship length 3.75 ft
Ship Width 2 ft
Ship Height 9 in
Ship Weight 29 lb

Multi-Position Ladder Allows You to Work on Stairs and Slopes

24 ladders in 1

300 lbs Rated on Both Sides for Jobs That Need Extra Hands

Work safely, at height

Converts to a Trestle and Plank Scaffold System (Plank and Trestle Brackets Not Included)

3-in-1 ladder

Multi-Position Ladder Allows You to Work on Stairs and Slopes

24 ladders in 1

300 lbs Rated on Both Sides for Jobs That Need Extra Hands

Work safely, at height

Converts to a Trestle and Plank Scaffold System (Plank and Trestle Brackets Not Included)

3-in-1 ladder

FAQs
What size ladder do I need?

Size refers to the ANSI definition of length. ANSI states that the size is defined by the combined length of all rail sections, with a tolerance of +/-3” on each section. Note, this does not take into account any overlap between sliding sections like those on an extension or multi-purpose ladder. This can cause a disparity in the size of the ladder versus the actual height. To determine which ladder you need, Little Giant recommends you reference maximum reach height instead of size.

What is Duty Rating?

The terminology for ladder duty ratings, grades, and types can sometimes be confusing. The ladder's duty rating is the maximum safe load capacity of that ladder according to ANSI standardsThere are 3 types of ratings that Little Giant offers:

Type I - Made to handle everyday projects. Has a load capacity of 250 lbs.

Type IA- Designed with durability and regular use in mind. Has a load capacity of 300 lbs.

Type IAA- Built for professional performance and rugged use. Has a load capacity of 375 lbs.

What is the difference between SIZE and MAXIMUM REACH HEIGHT?

Ladder specifications can be confusing due to safety regulation requirements. According to ANSI (American National Standards Institute), the ladder size is defined as the total length of each section and does not account for overlap on extension ladders. As a result, the overlapping sections reduce the total length of the ladder. When purchasing any ladder customers should pay particular attention to the maximum reach to ensure the correct product for the job.

Where Can I Purchase Replacement Parts For My Little Giant Ladder?

Little Giant Ladders offers replacement parts for products manufactured by Little Giant Ladders only. Please contact Customer Service at 1 (800) 453-1192 or shop online at https://www.littlegiantladders.com/pages/ladder-parts.

When ordering replacement parts, you will need to provide the Little Giant Ladder Model Number and Mark Number or a description of the part you need.
