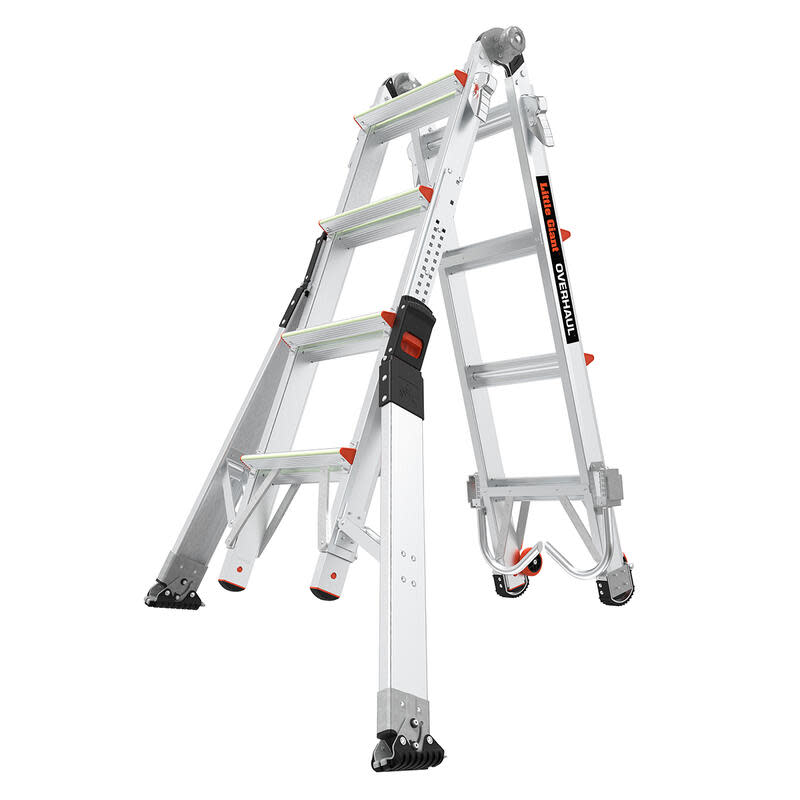

Firemans Overhaul

No reviews
Regular price $0.00
Regular price Sale price $0.00
Shipping calculated at checkout.

Model #: 15197-303

Description

Overhaul™

Each job requires different ladder features to help you be successful. Your needs as a firefighter are drastically different than the needs of someone working in the electrical field, which is why Little Giant Ladder Systems® created the Overhaul™ firefighting ladder.



Firefighting Ladder

The Overhaul™ was designed with a firefighter’s specific needs in mind. It uses Rock Locks® for easy adjustment while wearing gloves. With Safety Insight™ photoluminescent strips on each rung, you can easily climb through the dark without fear. The durable material is integrated into the rung, not pasted on as an after-market add-on, and it glows for up to 16 hours on each rung when fully charged.



Working in high-heat environments also means that your ladder is exposed to extreme elements often. The Overhaul uses heat-sensing labels that indicate when the ladder has experienced too much heat damage and should be removed from service.



Multi-Position Ladder

The Overhaul helps you complete any given task with ease. Set up the ladder in different configurations that suit the project at hand, like stepladder, extension, staircase or 90-degree. Plus, with the equipped roof and rafter hooks, the Overhaul can be attached to a rafter or truss to prevent the ladder from sliding during work.



Spike Feet

The rubberized feet provide stability on wet or slippery surfaces and the flip-down spike feet improve stability on grass, carpet and other soft surfaces.



NFPA

The Little Giant Overhaul ladder system is designed to meet the requirements of NFPA 1931-2015, Standard for Manufacturer’s Design of Fire Department Ground Ladders, and has been tested to the requirements of NFPA 1932-2015, Standard on Use, Maintenance, and Service Testing of In-Service Fire Department Ground Ladders.



Little Giant’s Overhaul and Defender ladders are the only articulating ladder systems that meet the requirements of NFPA 1901-2009, Standard for Automotive Fire Apparatus, section 5.7.1.3 for pumpers, section 8.7.5 for ladder trucks, and section 9.7.1.3 for quints.



Insurance Services Office

The Little Giant Overhaul Ladder meets ISO requirements for credit on pumper and ladder apparatus.



GSA Number: GS-07F-475AA



The Overhaul Ladder is available in a 17-foot size.

Specs

Specifications

Model Number 15197-303
ANSI Duty Rating Type IAA - Special Duty
Weight Capacity 375 lbs.
Product Material Aluminum
Warranty 5-Year
Product Weight 54 lb
Country of Origin USA
Storage Depth 9.5 in
Storage Height 55 in
Storage Width at Base 1.65 ft
Feet Standard non-marring (screw-on)
Spreader System Hinge Lock

Features

90° Position Yes
Tip & Glide Wheels™ Yes
V-Bar No
Ratchet Levelers No
Ground Cue No
Air Deck Ports No
Claw No
Scaffolding Position Yes

A-Frame

Ladder Size 15 ft
Palm & Hinge Lock System None
Height Adjusting Lock Cast Aluminum Rock Locks
Inside Clear Width 1.04 ft
Inner Rung Depth 1.4 in
Outer Rung Depth 1.5 in
Rung Size Double Section 4 in
Top Width 1.5 ft
Highest Standing Level
Maximum Footprint 9999 in
Max Reach 11.33 ft

Extension

Extension Lock Cast Aluminum Rock Locks
Extension Min Reach 8.92 ft
Extension Minimum Working Length 8.92 ft
Extension Maximum Working Length 14.92 ft
Extension Max Reach 18.08 ft
Extension Total Length of Sections 17.17 ft


Shipping Specifications

Ship length 4.67 ft
Ship Width 2 ft
Ship Height 8 in
Ship Weight 59 lb

Leveling Outriggers with Adjustable Feet Keep the Ladder Level On Any Terrain

24 ladders in 1

Hooks and Rugged Feet for Sturdy Climbing

Work safely, at height

Glow-in-the-Dark Light Strips on the Rungs

3-in-1 ladder

Leveling Outriggers with Adjustable Feet Keep the Ladder Level On Any Terrain

24 ladders in 1

Hooks and Rugged Feet for Sturdy Climbing

Work safely, at height

Glow-in-the-Dark Light Strips on the Rungs

3-in-1 ladder

FAQs
What size ladder do I need?

Size refers to the ANSI definition of length. ANSI states that the size is defined by the combined length of all rail sections, with a tolerance of +/-3” on each section. Note, this does not take into account any overlap between sliding sections like those on an extension or multi-purpose ladder. This can cause a disparity in the size of the ladder versus the actual height. To determine which ladder you need, Little Giant recommends you reference maximum reach height instead of size.

What is Duty Rating?

The terminology for ladder duty ratings, grades, and types can sometimes be confusing. The ladder's duty rating is the maximum safe load capacity of that ladder according to ANSI standardsThere are 3 types of ratings that Little Giant offers:

Type I - Made to handle everyday projects. Has a load capacity of 250 lbs.

Type IA- Designed with durability and regular use in mind. Has a load capacity of 300 lbs.

Type IAA- Built for professional performance and rugged use. Has a load capacity of 375 lbs.

What is the difference between SIZE and MAXIMUM REACH HEIGHT?

Ladder specifications can be confusing due to safety regulation requirements. According to ANSI (American National Standards Institute), the ladder size is defined as the total length of each section and does not account for overlap on extension ladders. As a result, the overlapping sections reduce the total length of the ladder. When purchasing any ladder customers should pay particular attention to the maximum reach to ensure the correct product for the job.

Where Can I Purchase Replacement Parts For My Little Giant Ladder?

Little Giant Ladders offers replacement parts for products manufactured by Little Giant Ladders only. Please contact Customer Service at 1 (800) 453-1192 or shop online at https://www.littlegiantladders.com/pages/ladder-parts.

When ordering replacement parts, you will need to provide the Little Giant Ladder Model Number and Mark Number or a description of the part you need.
