Model #: 13117-801
Get your projects done faster, safer and more efficiently by using an ultra-versatile ladder. The Revolution™ 2.0 from Little Giant Ladder Systems® has been engineered to be the perfect “get stuff done” ladder.

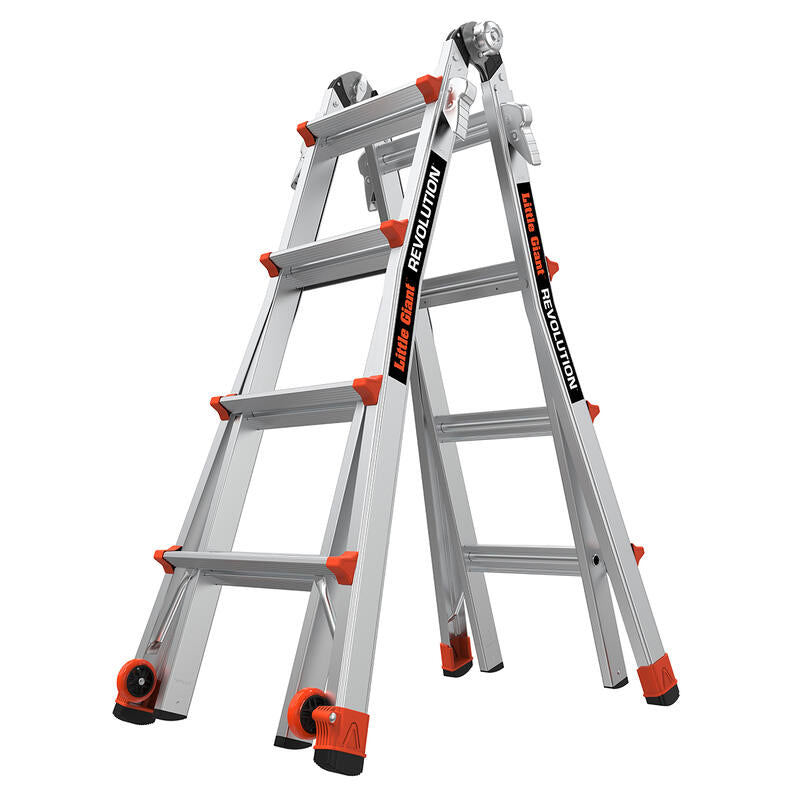

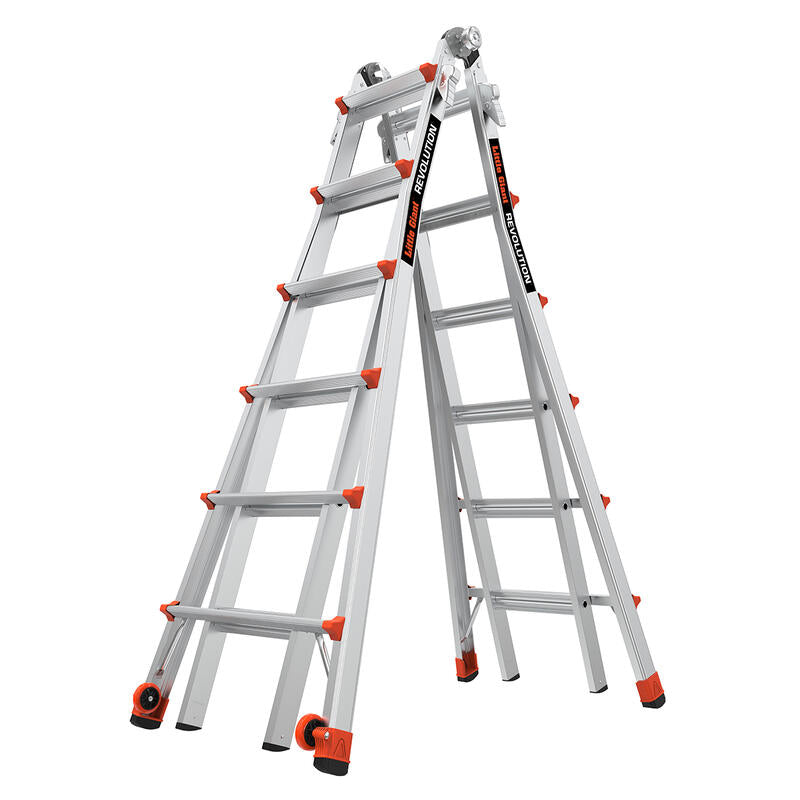

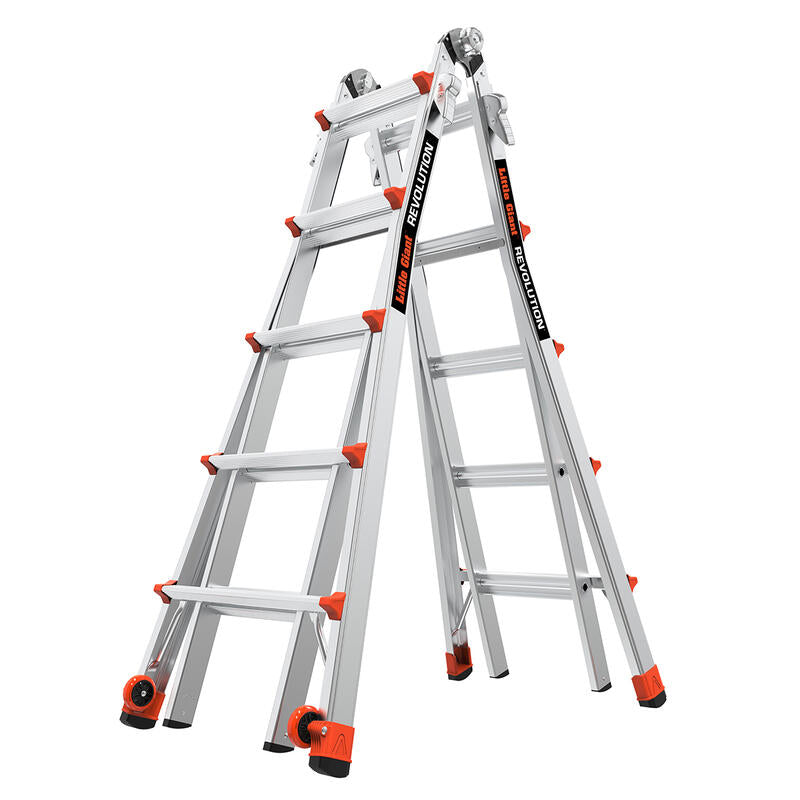

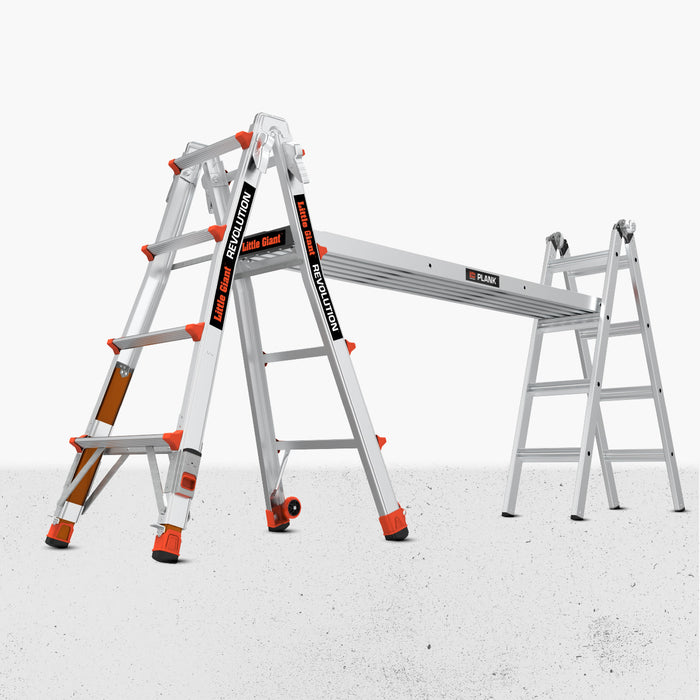

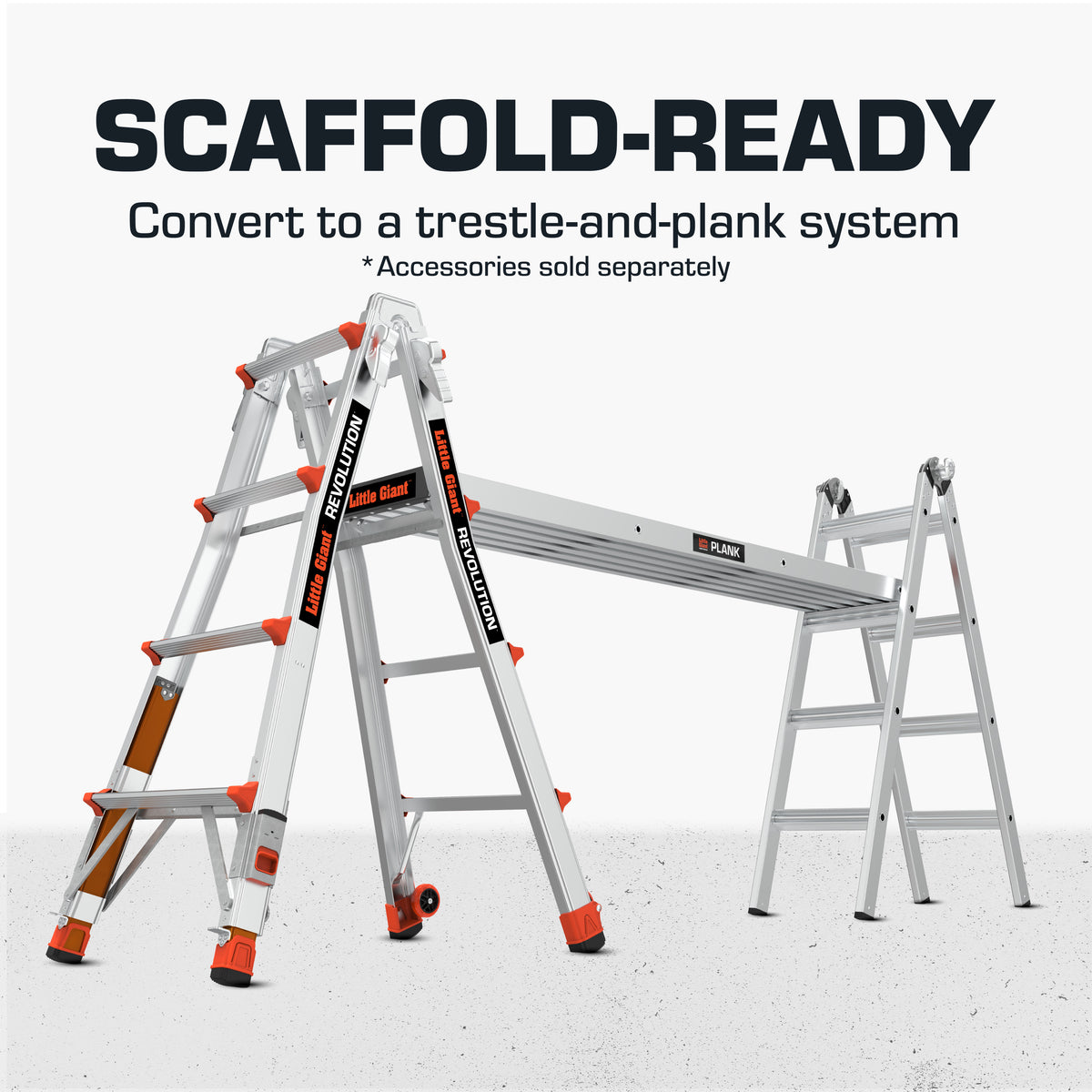

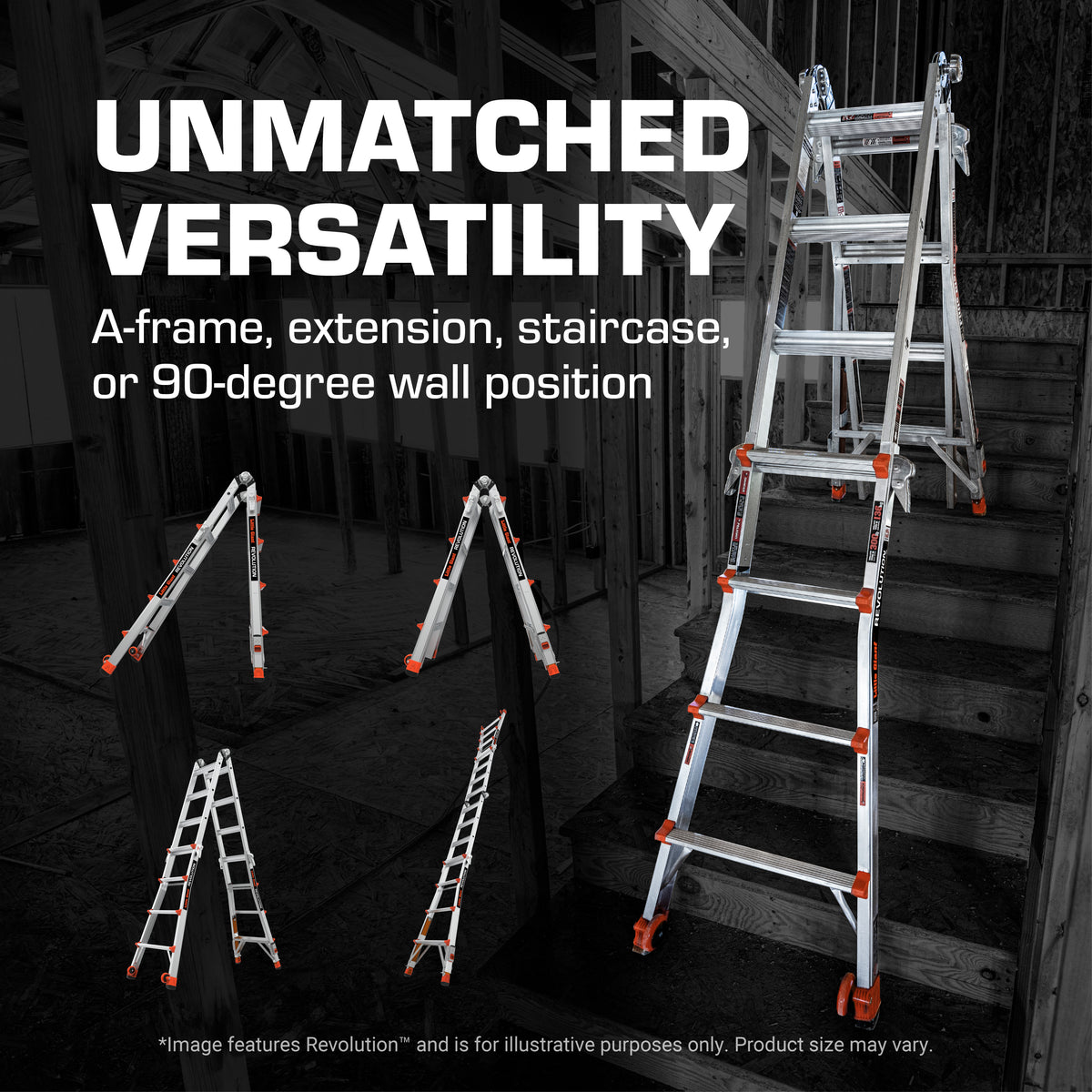

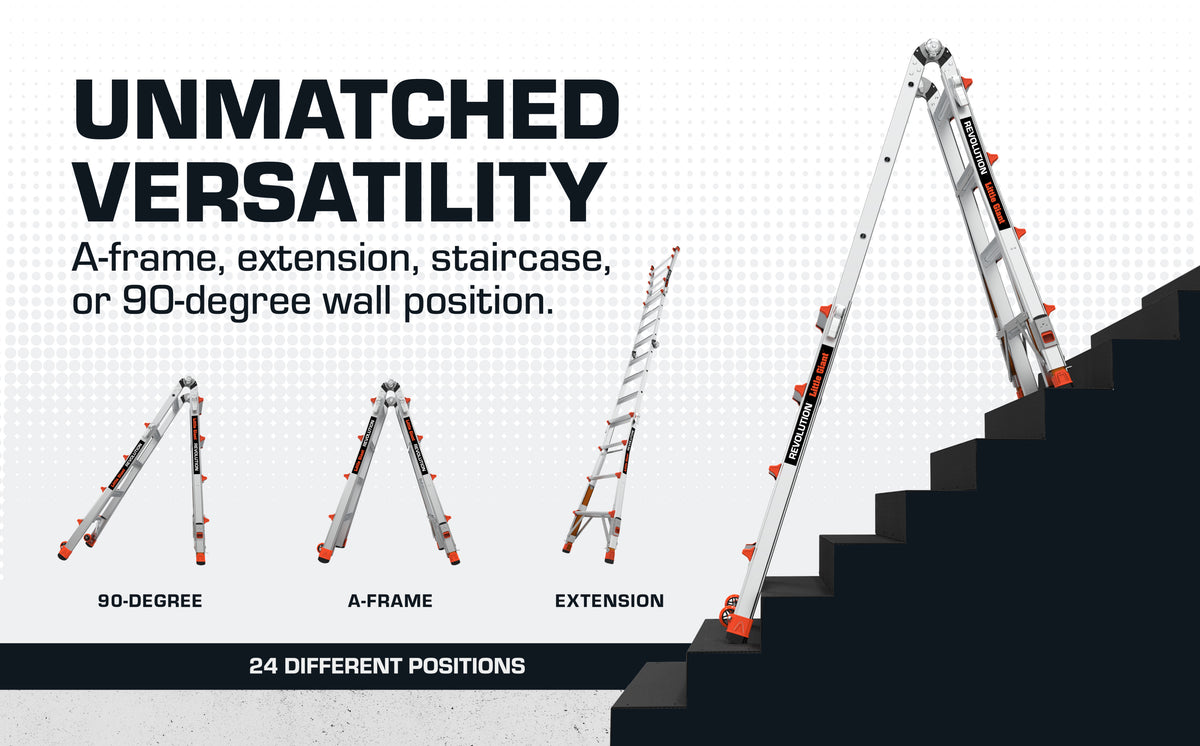

With a multi-position ladder, you’ll always have the right size and style of ladder, no matter where the job takes you. The Revolution 2.0 can easily be used as an A-frame, extension, 90-degree, staircase or trestle-and-plank* scaffolding. Engineered with lightweight and durable aircraft-grade aluminum, it’s light enough to carry and sturdy enough to rely on.

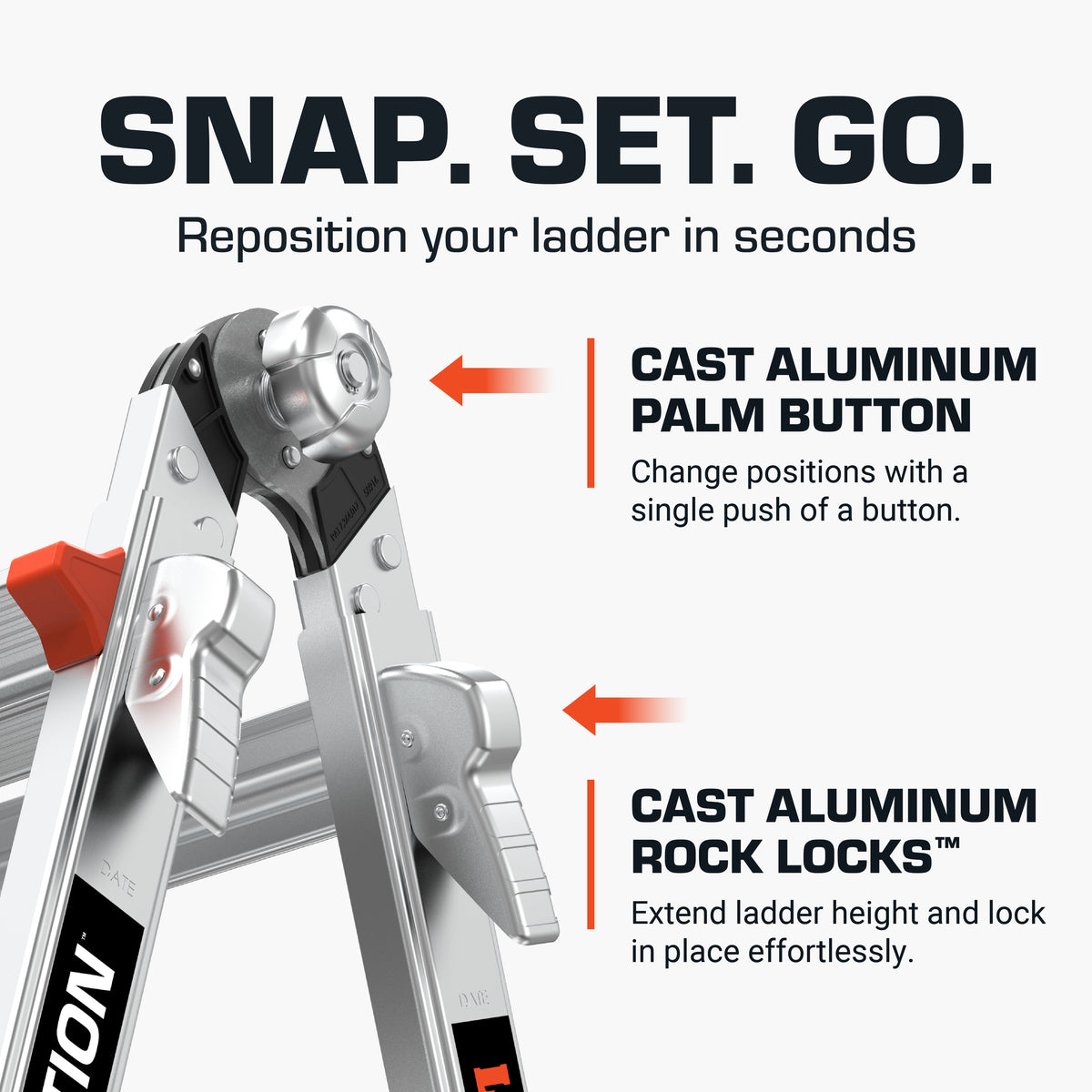

The patented Rock Lock® adjusters and press-in palm buttons allow for easy size and configuration adjustments and are made with cast aluminum for added durability and impact resistance. An improved Rock Lock adjuster design makes for a smooth transition from position to position.
Work in Comfort
For added comfort, the outer rungs are engineered to be wider than standard ladder rungs. Work for extended periods without unnecessary foot fatigue.

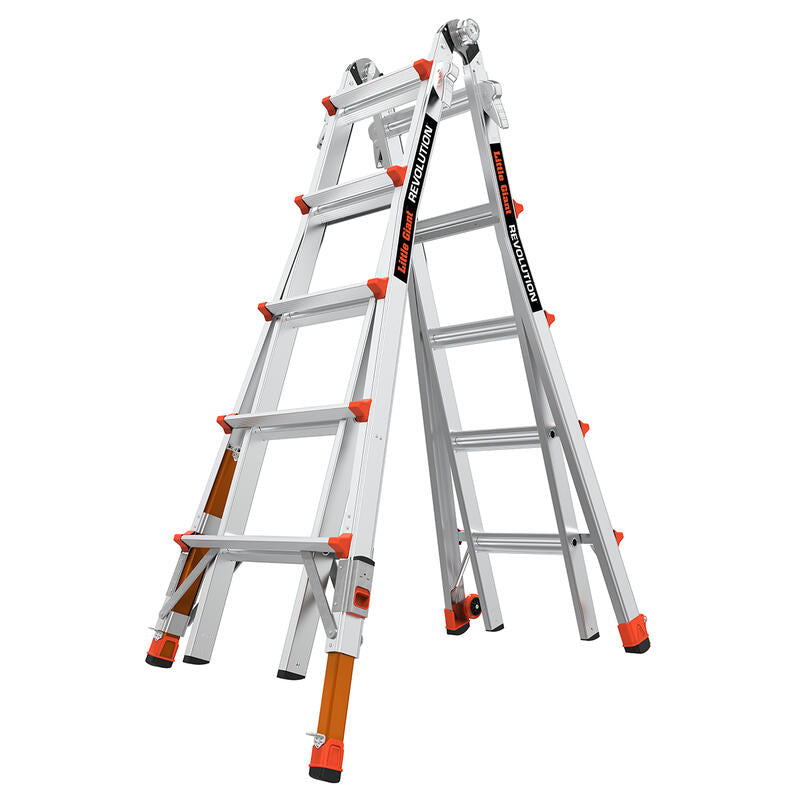

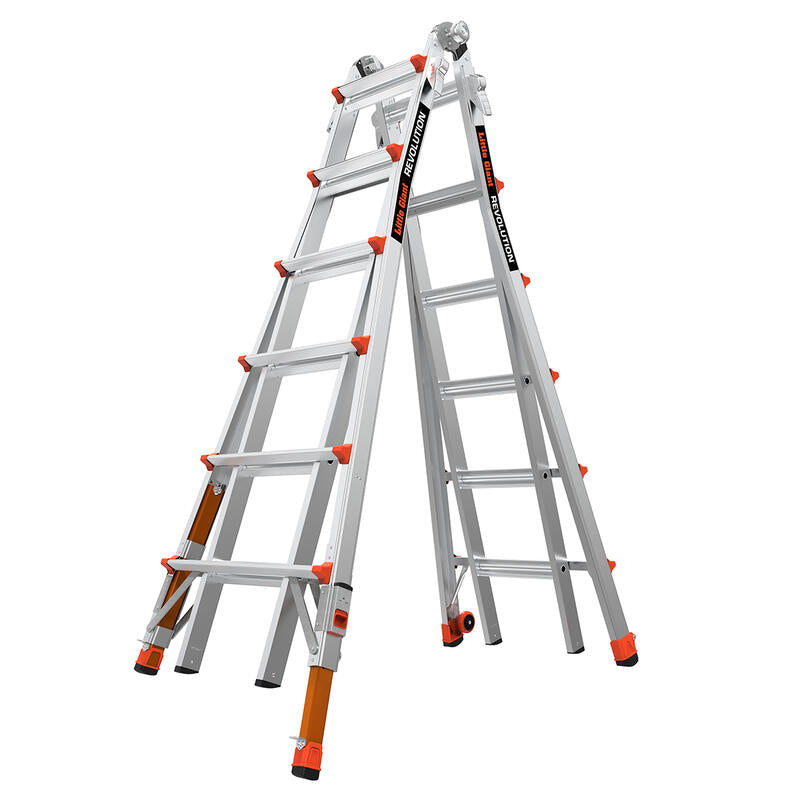

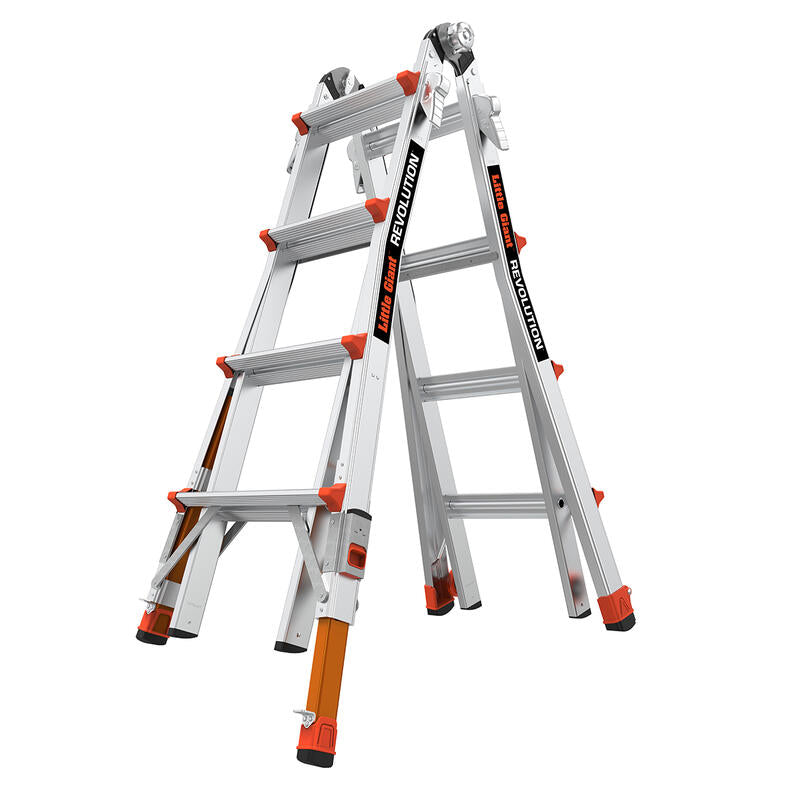

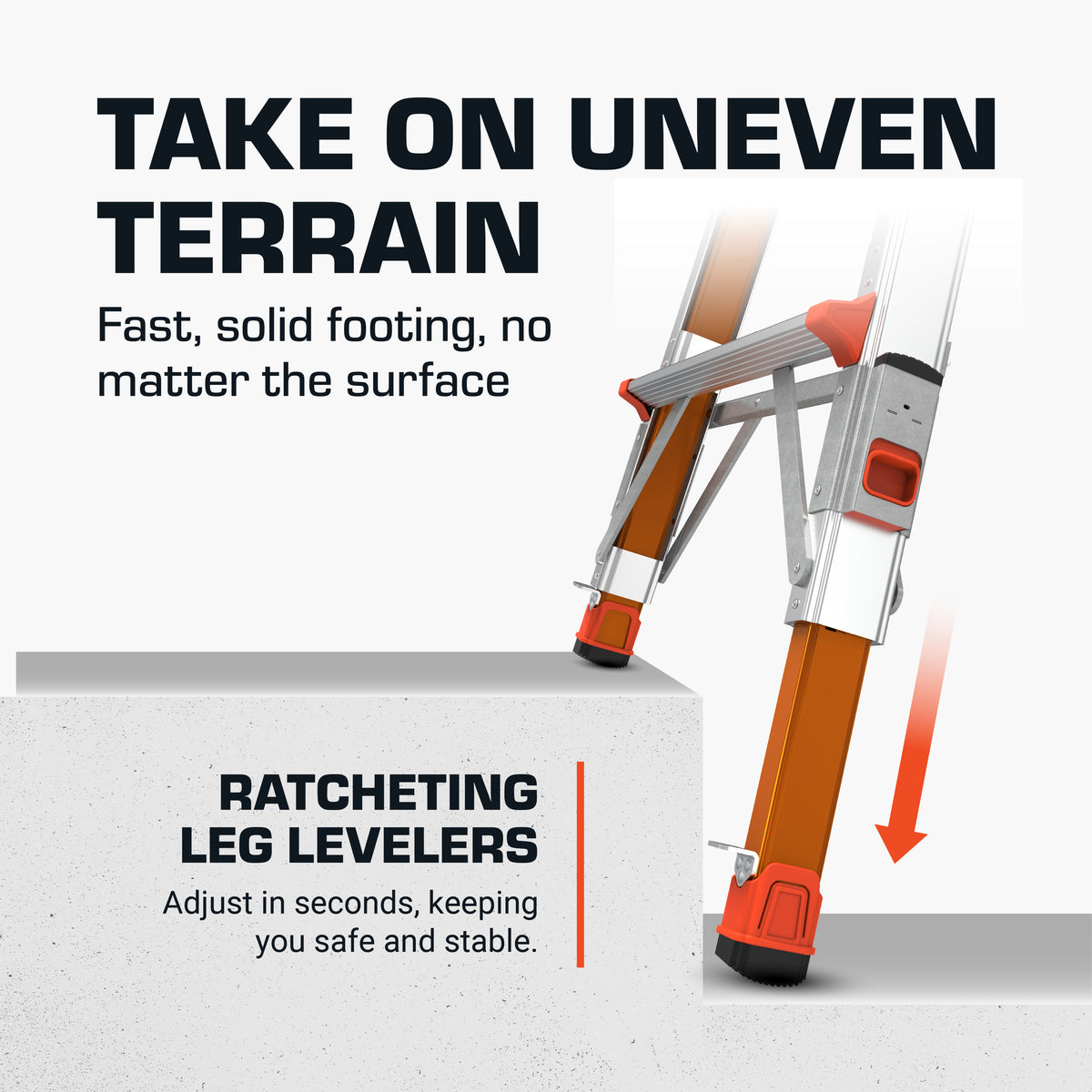

Working on an uneven surface while using a ladder can be dangerous, which is why the Revolution 2.0 has integrated Ratchet® leg levelers**. This improved leg leveling system is easy to extend and retract, so you can have a safer, more level climb.

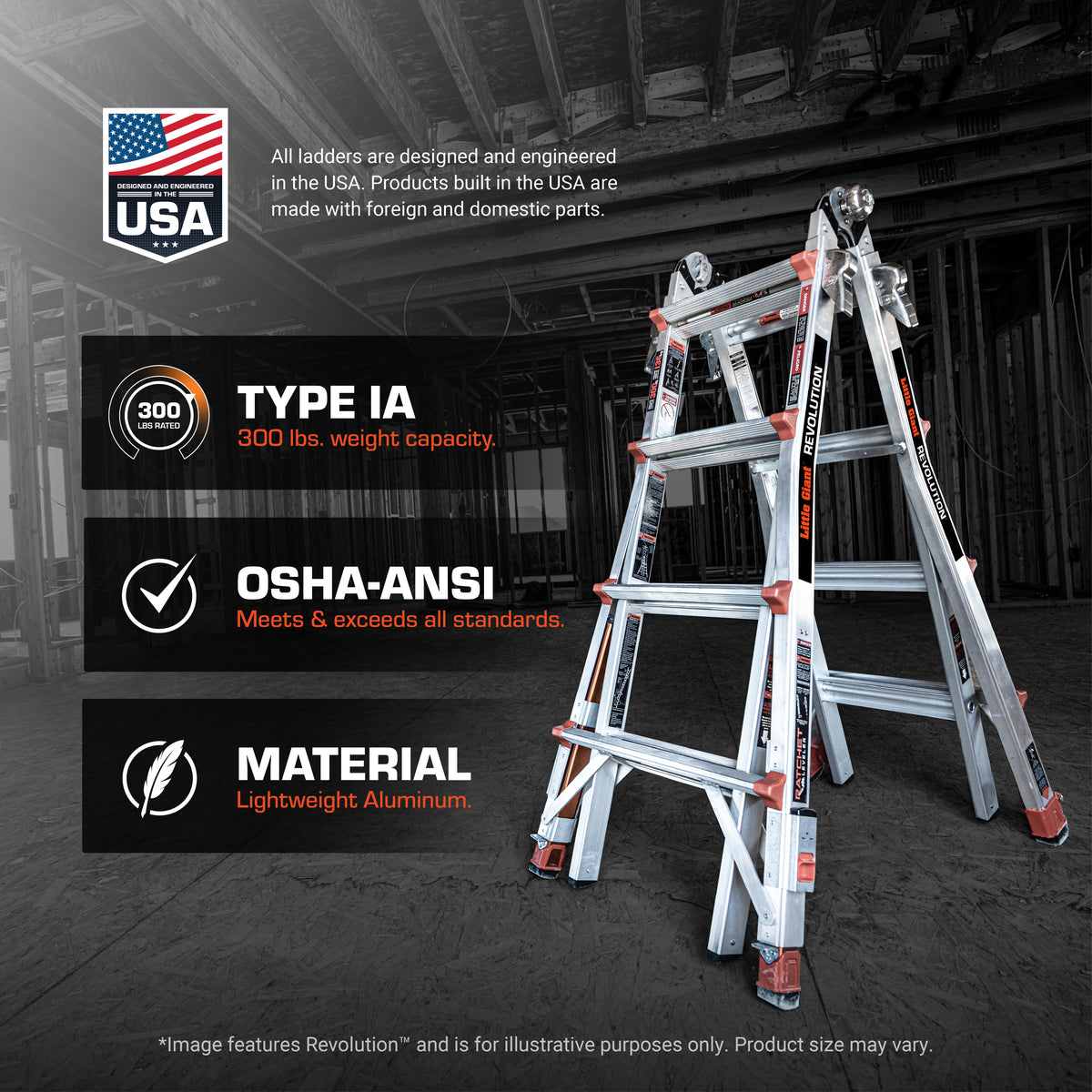

The Revolution™ 2.0 from Little Giant Ladder Systems® meets or exceeds all OSHA and ANSI standards and has a Type IA rating to hold 300 lbs.
*Trestle brackets and Plank not included
**Available on select models
|ANSI Duty Rating||Type IA - Extra Heavy Duty|
|Weight Capacity||300 lbs.|
|Product Weight||35 lb|
|Country of Origin||China|
|Storage Depth||9 in|
|Storage Height||123 in|
|Storage Width at Base||2 ft|
|Spreader System||Hinge Lock|

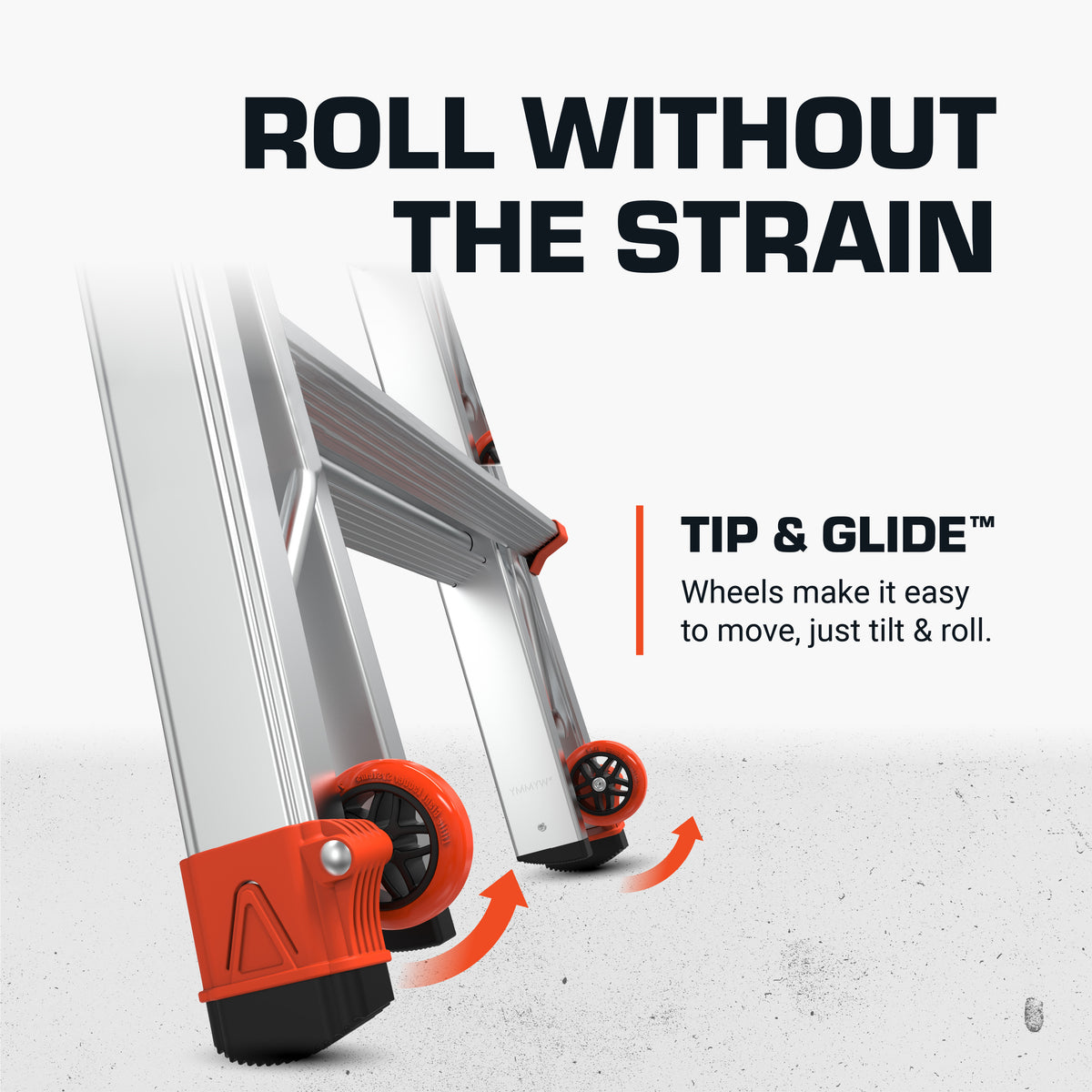

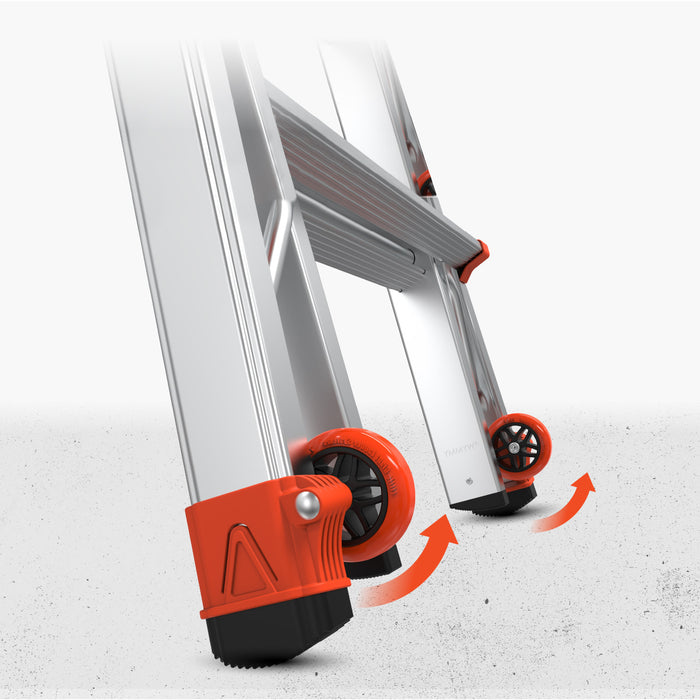

|Tip & Glide Wheels™||Yes|
|Air Deck Ports||No|
|Ladder Size||15 ft|
|Palm & Hinge Lock System||Cast Aluminum / Triple Locking Hinge|
|Height Adjusting Lock||Cast Aluminum Rock Locks|
|Inside Clear Width||1.04 ft|
|Inner Rung Depth||1.4 in|
|Outer Rung Depth||1.5 in|
|Rung Size Double Section||4 in|
|Top Width||1.5 ft|
|Highest Standing Level||4.83 ft|
|Maximum Footprint||5.19 ft|
|Max Reach||11.33 ft|
|Extension Lock||Cast Aluminum Rock Locks|
|Extension Min Reach||8.92 ft|
|Extension Minimum Working Length||8.92 ft|
|Extension Maximum Working Length||14.92 ft|
|Extension Max Reach||18.08 ft|
|Extension Total Length of Sections||17.17 ft|
|Ship length||4.67 ft|
|Ship Width||2 ft|
|Ship Height||8 in|
|Ship Weight||40 lb|
Size refers to the ANSI definition of length. ANSI states that the size is defined by the combined length of all rail sections, with a tolerance of +/-3” on each section. Note, this does not take into account any overlap between sliding sections like those on an extension or multi-purpose ladder. This can cause a disparity in the size of the ladder versus the actual height. To determine which ladder you need, Little Giant recommends you reference maximum reach height instead of size.
The terminology for ladder duty ratings, grades, and types can sometimes be confusing. The ladder's duty rating is the maximum safe load capacity of that ladder according to ANSI standards. There are 3 types of ratings that Little Giant offers:
Type I - Made to handle everyday projects. Has a load capacity of 250 lbs.
Type IA- Designed with durability and regular use in mind. Has a load capacity of 300 lbs.
Type IAA- Built for professional performance and rugged use. Has a load capacity of 375 lbs.
Ladder specifications can be confusing due to safety regulation requirements. According to ANSI (American National Standards Institute), the ladder size is defined as the total length of each section and does not account for overlap on extension ladders. As a result, the overlapping sections reduce the total length of the ladder. When purchasing any ladder customers should pay particular attention to the maximum reach to ensure the correct product for the job.
Little Giant Ladders offers replacement parts for products manufactured by Little Giant Ladders only. Please contact Customer Service at 1 (800) 453-1192 or shop online at https://www.littlegiantladders.com/pages/ladder-parts.
When ordering replacement parts, you will need to provide the Little Giant Ladder Model Number and Mark Number or a description of the part you need.
