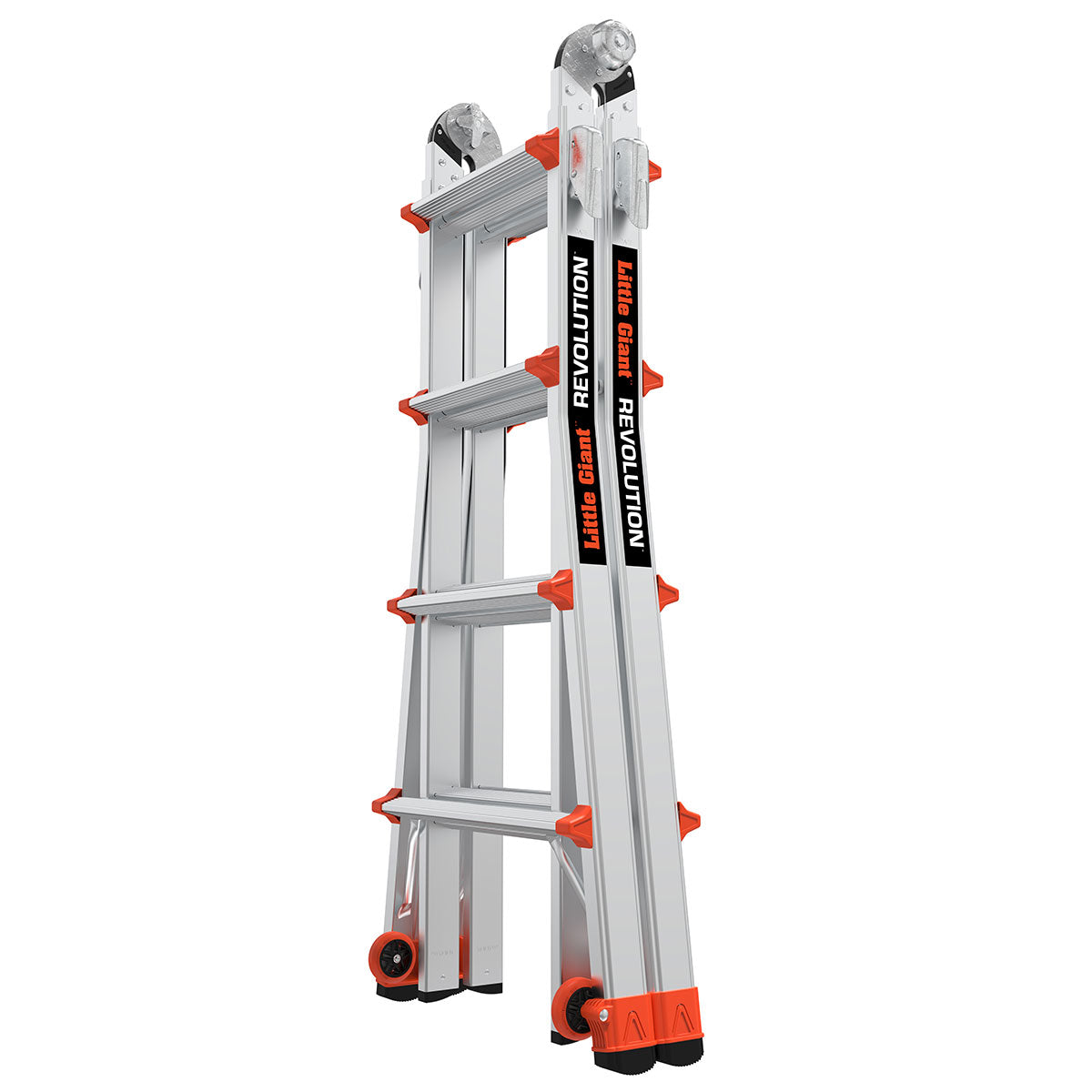

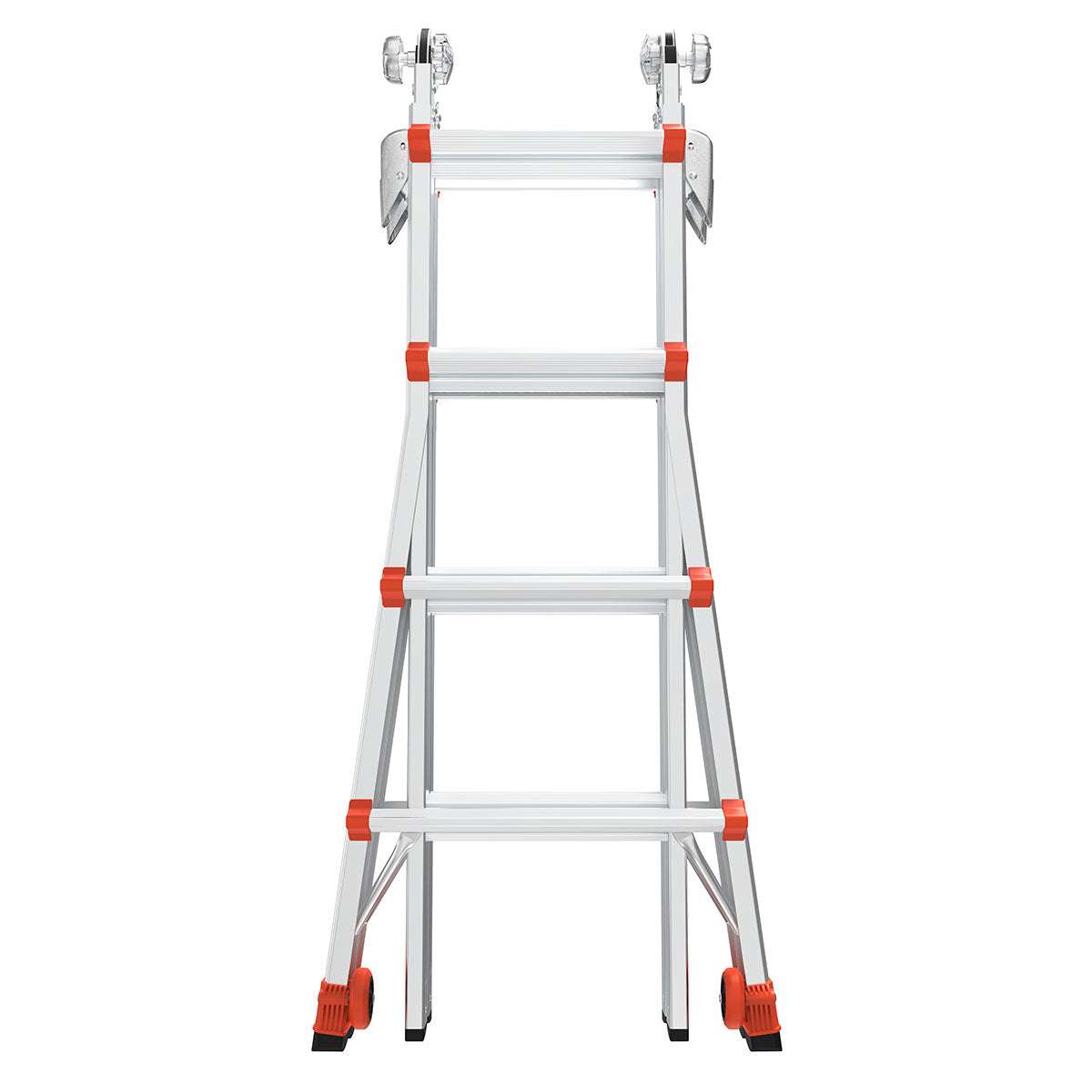

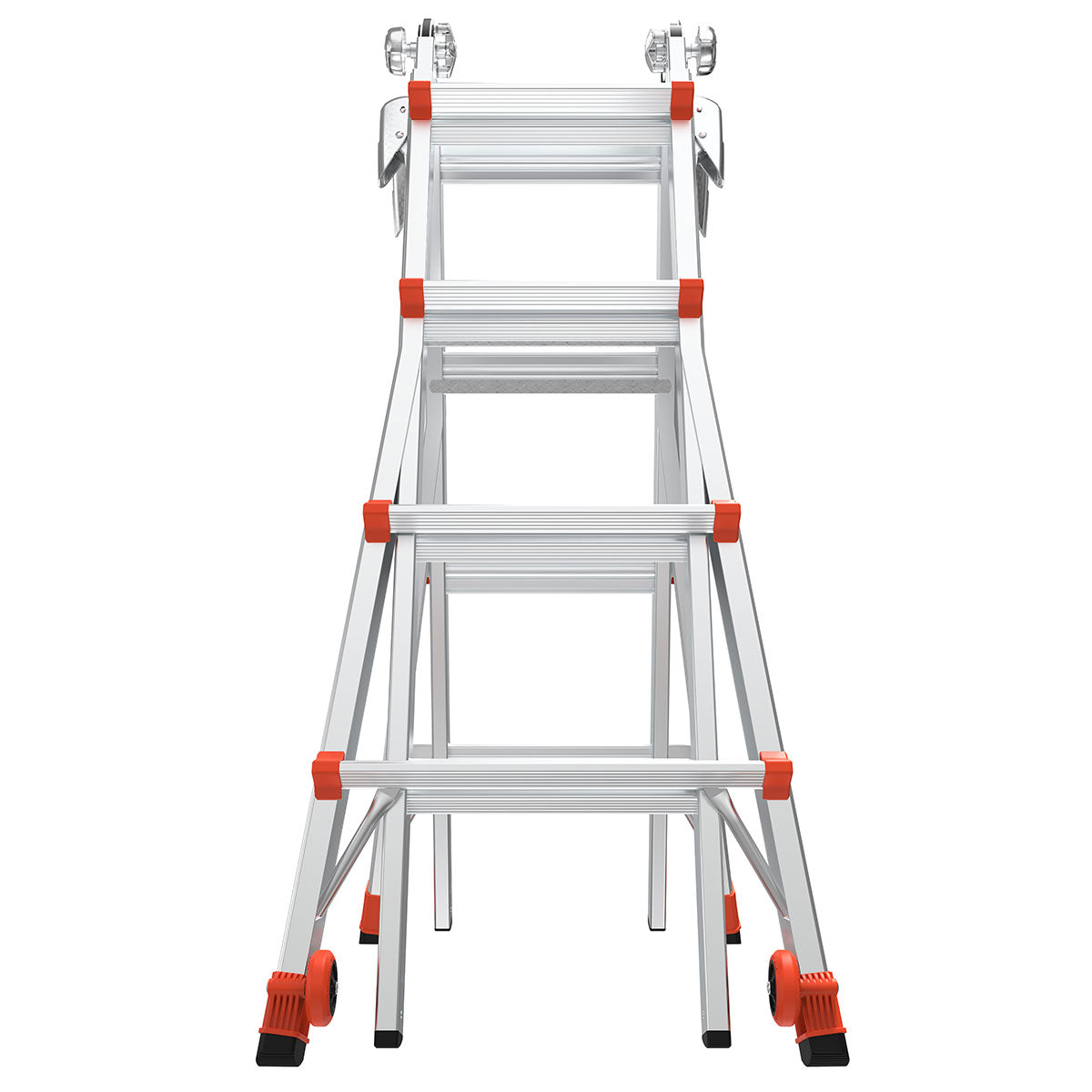

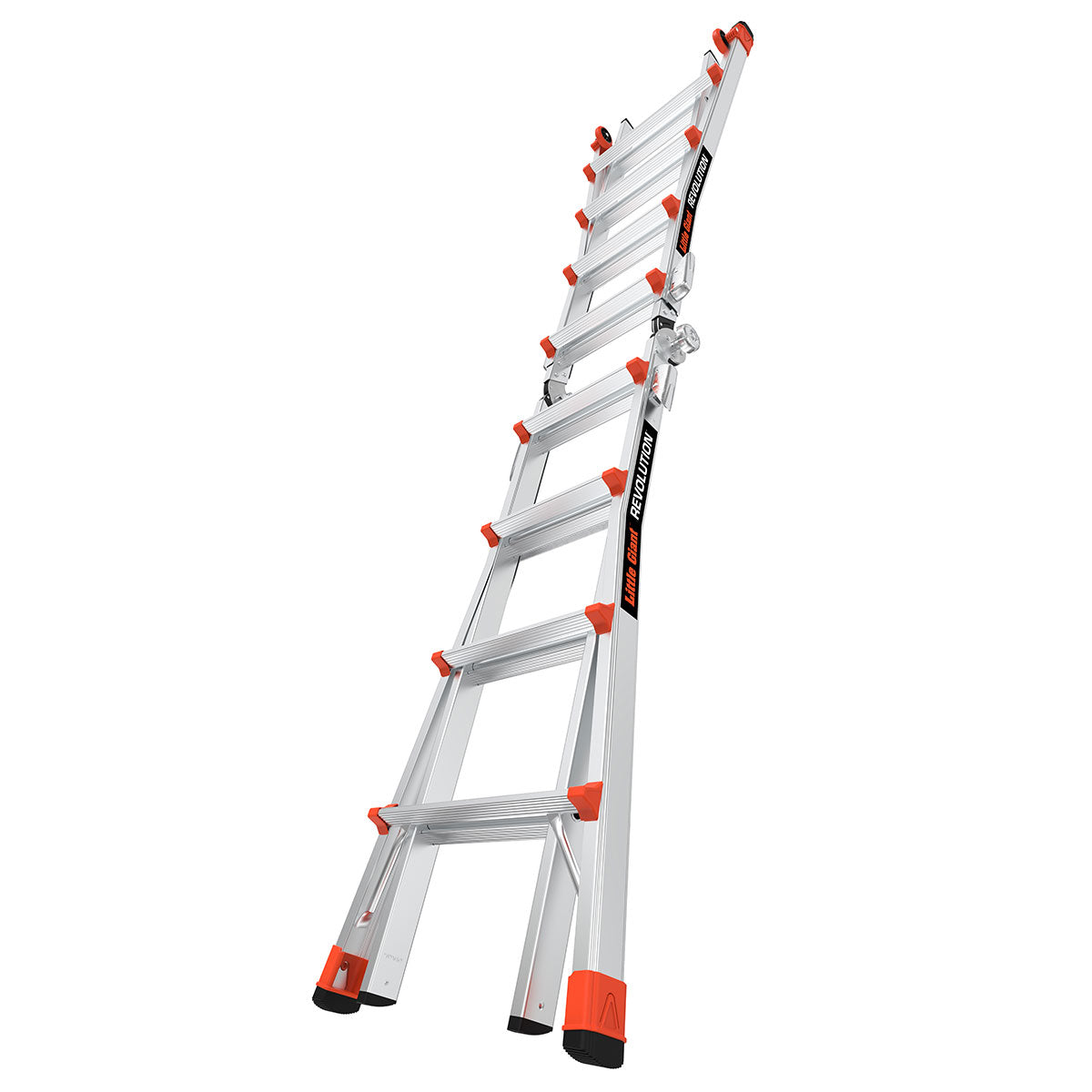

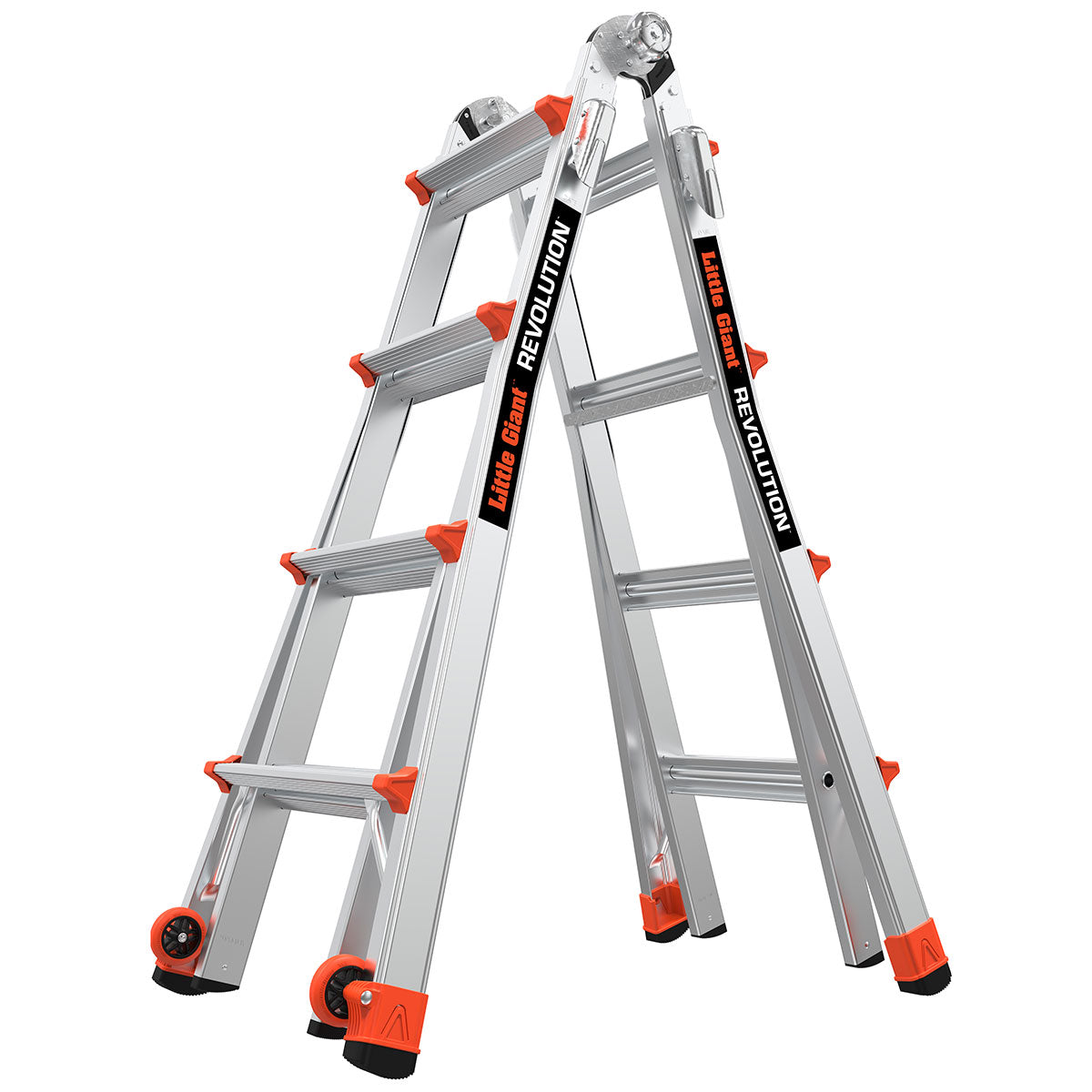

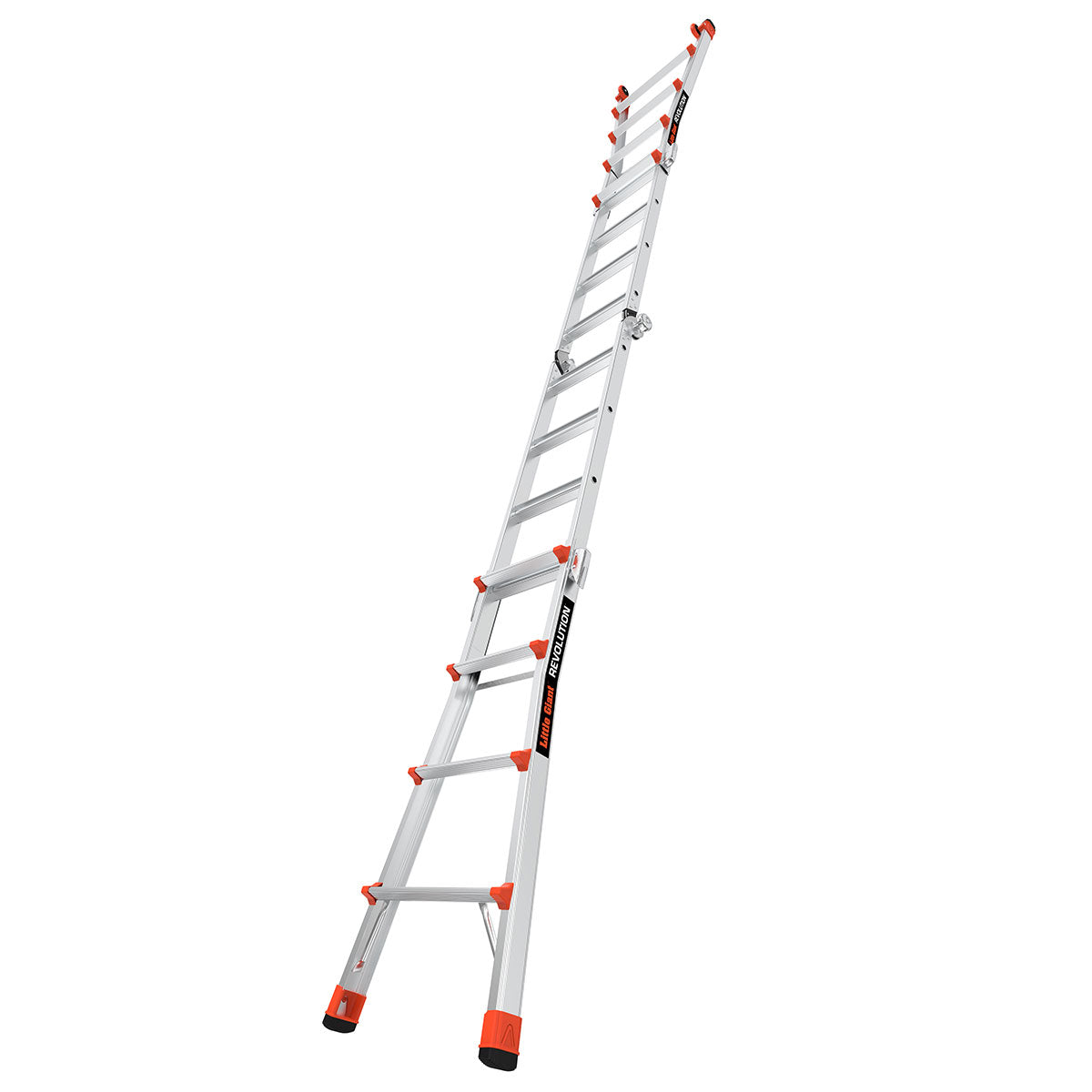

Model #: 12017

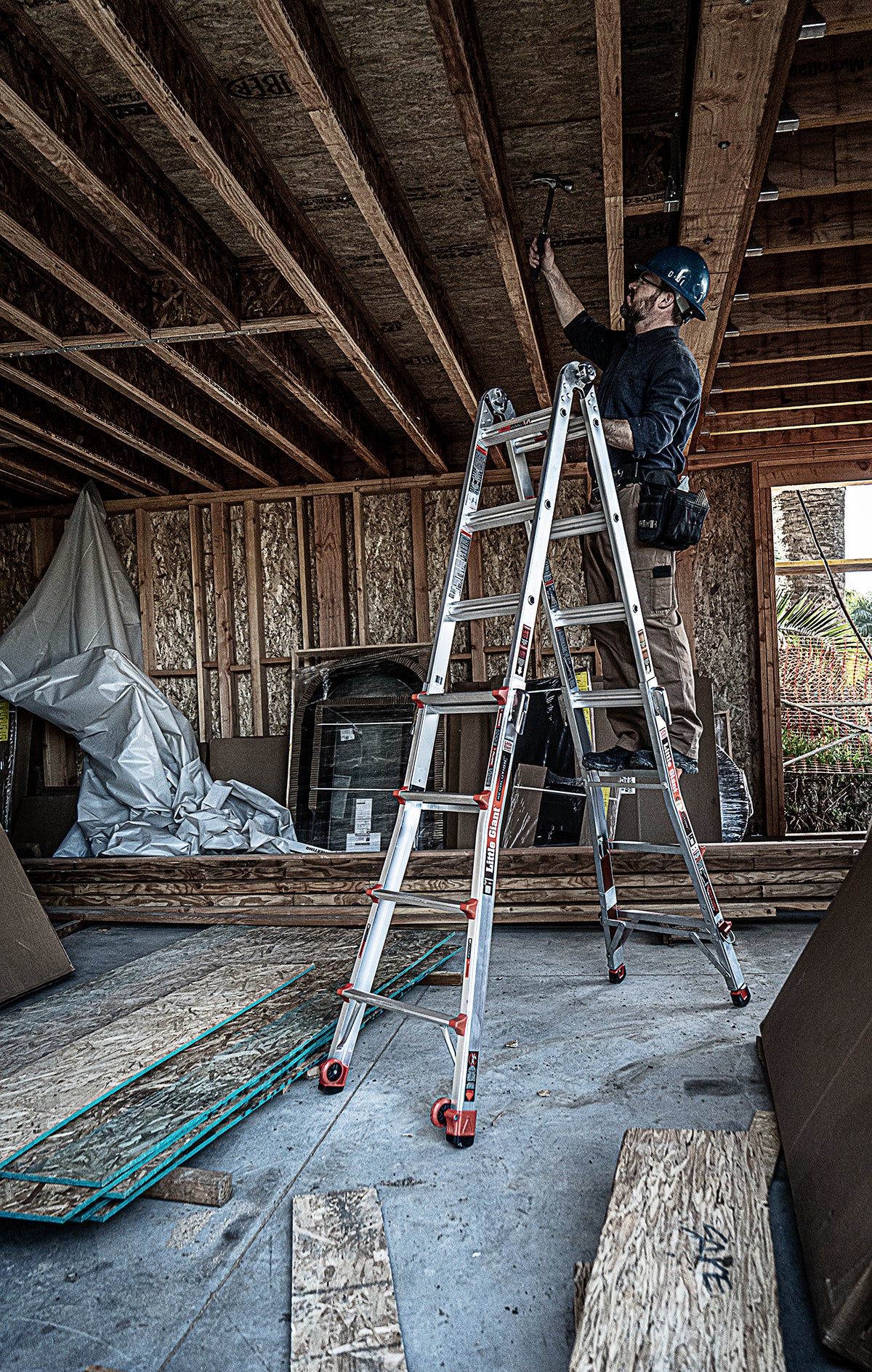

An intense job calls for an intense tool. The Little Giant® Revolution™ ladder helps you complete those heavy-duty tasks. From roofing, to tinning, to general maintenance, the Revolution is the ladder to help you get stuff done.

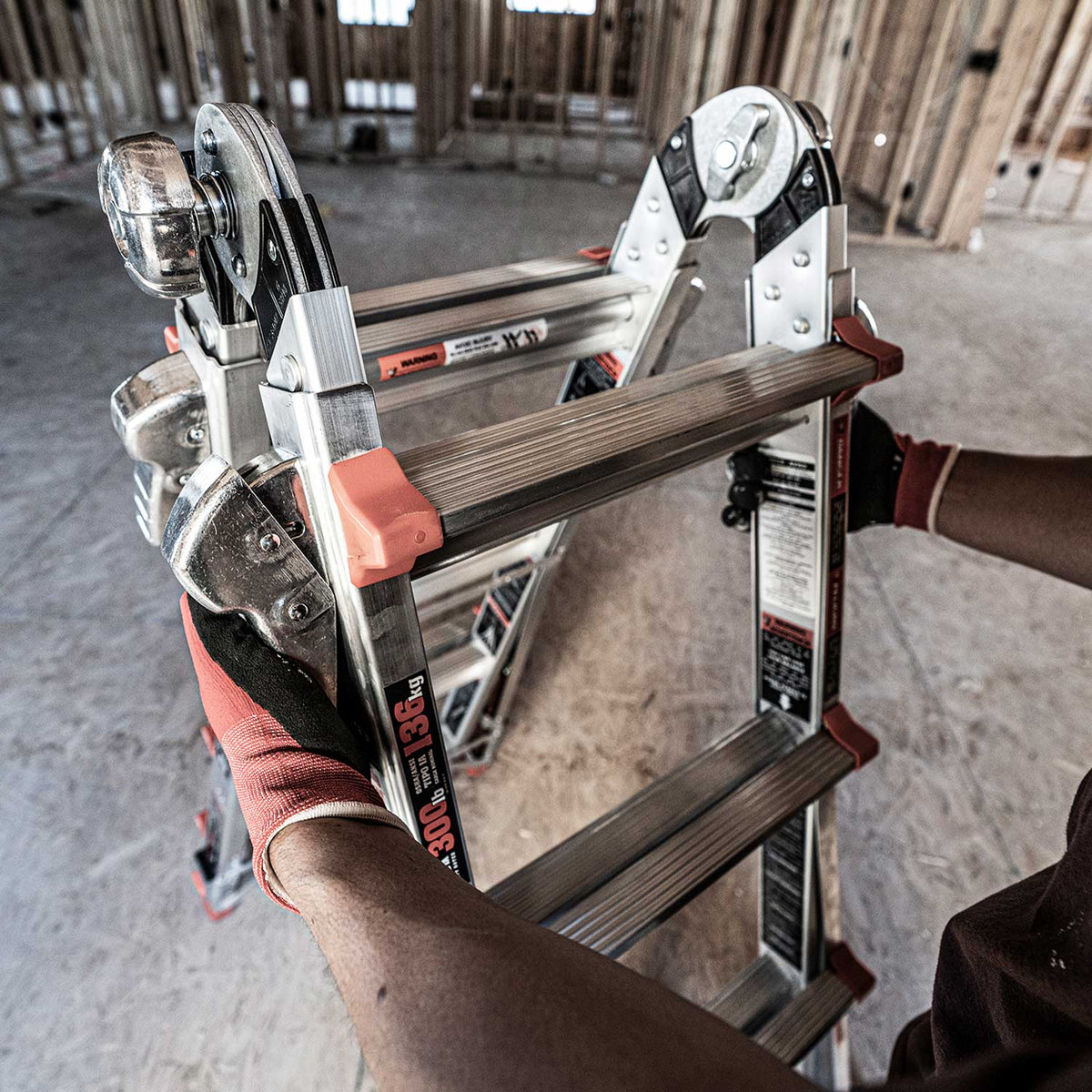

1. PALM BUTTONS

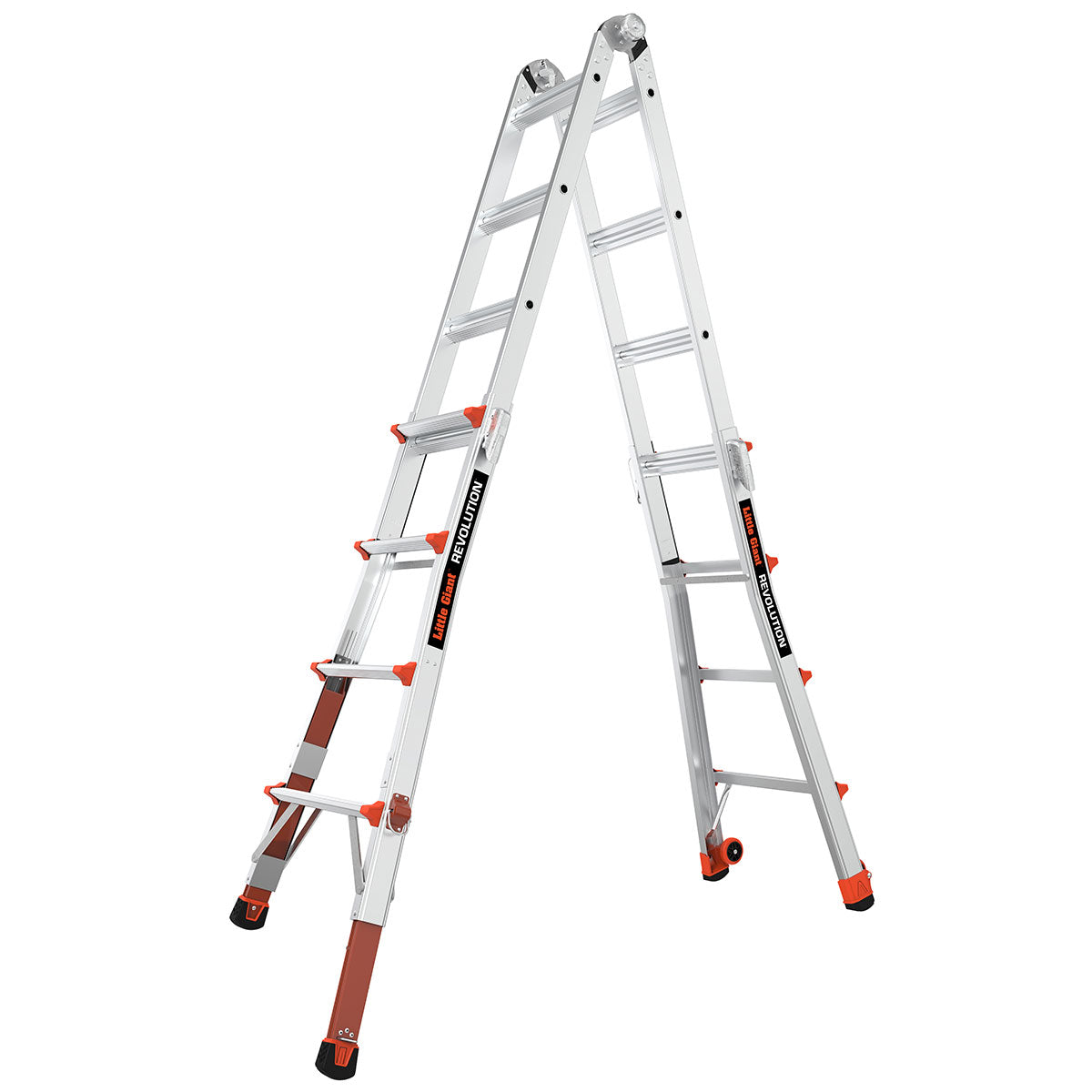

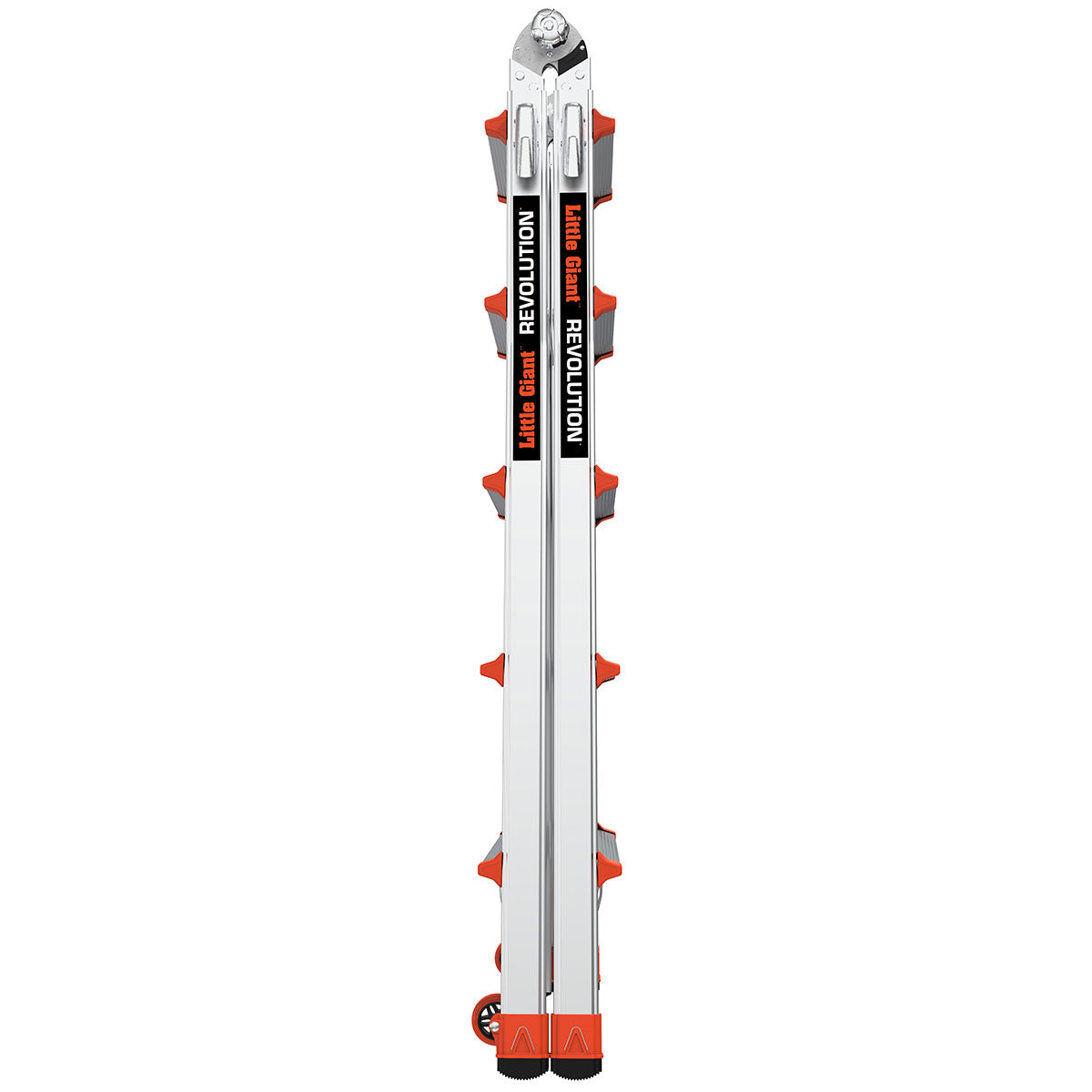

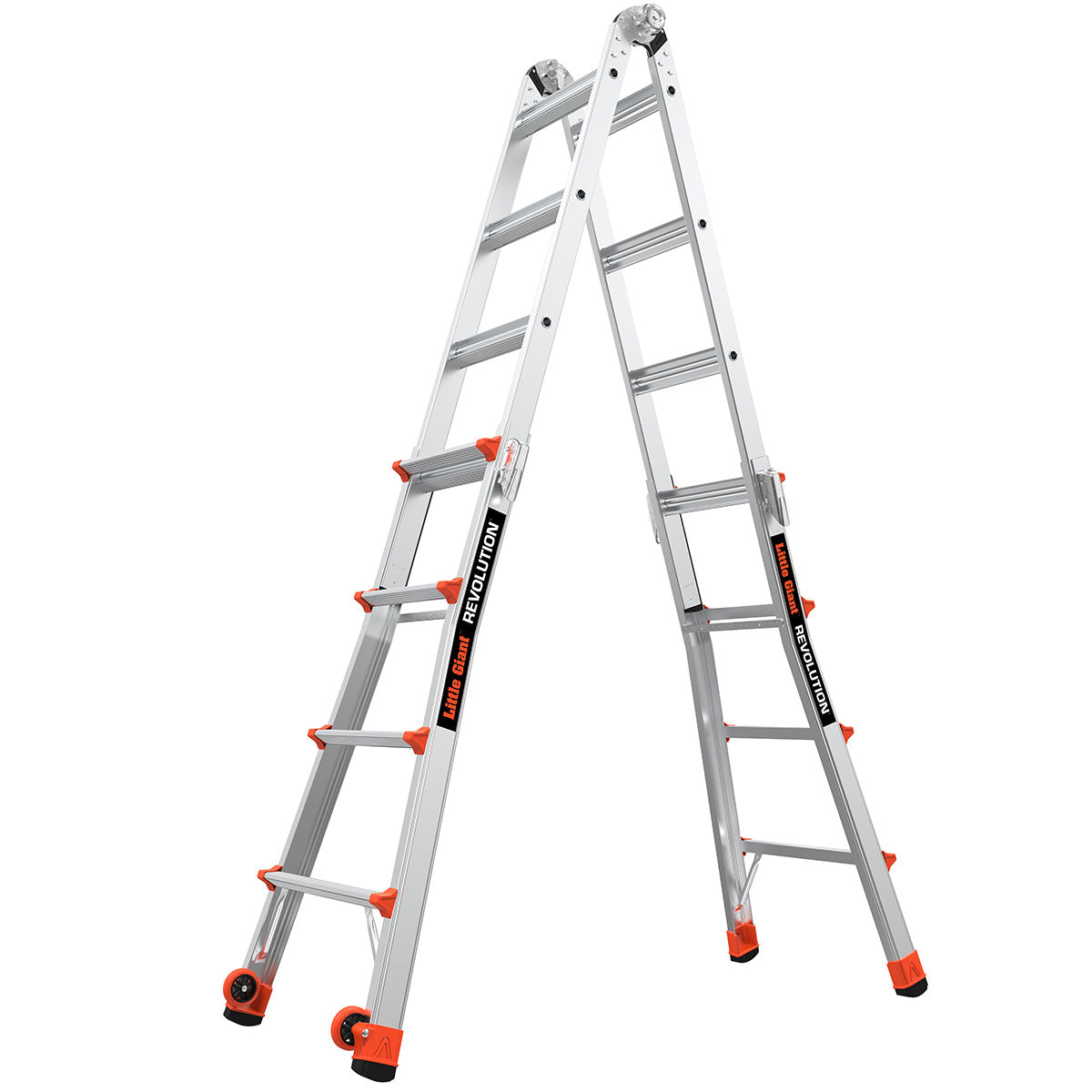

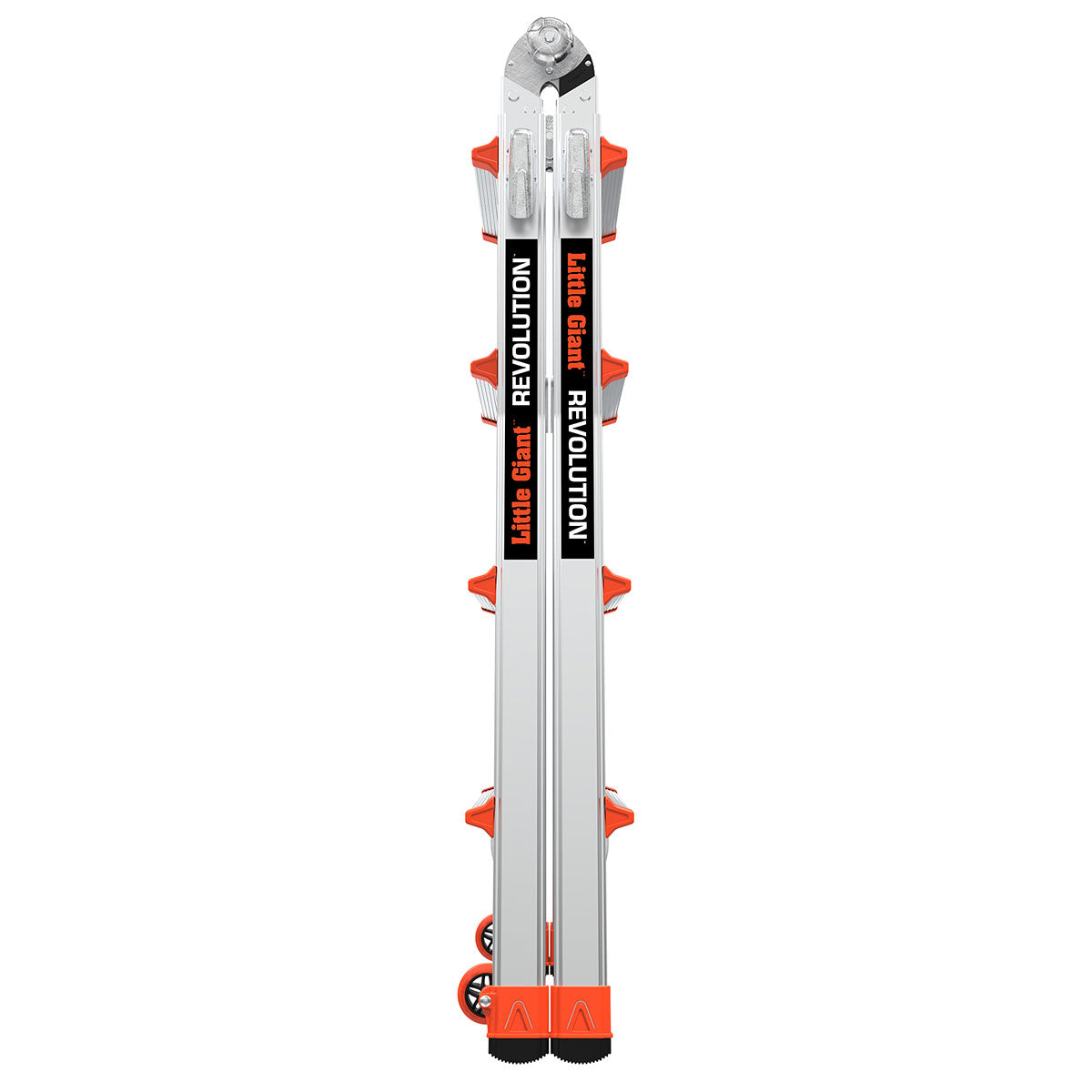

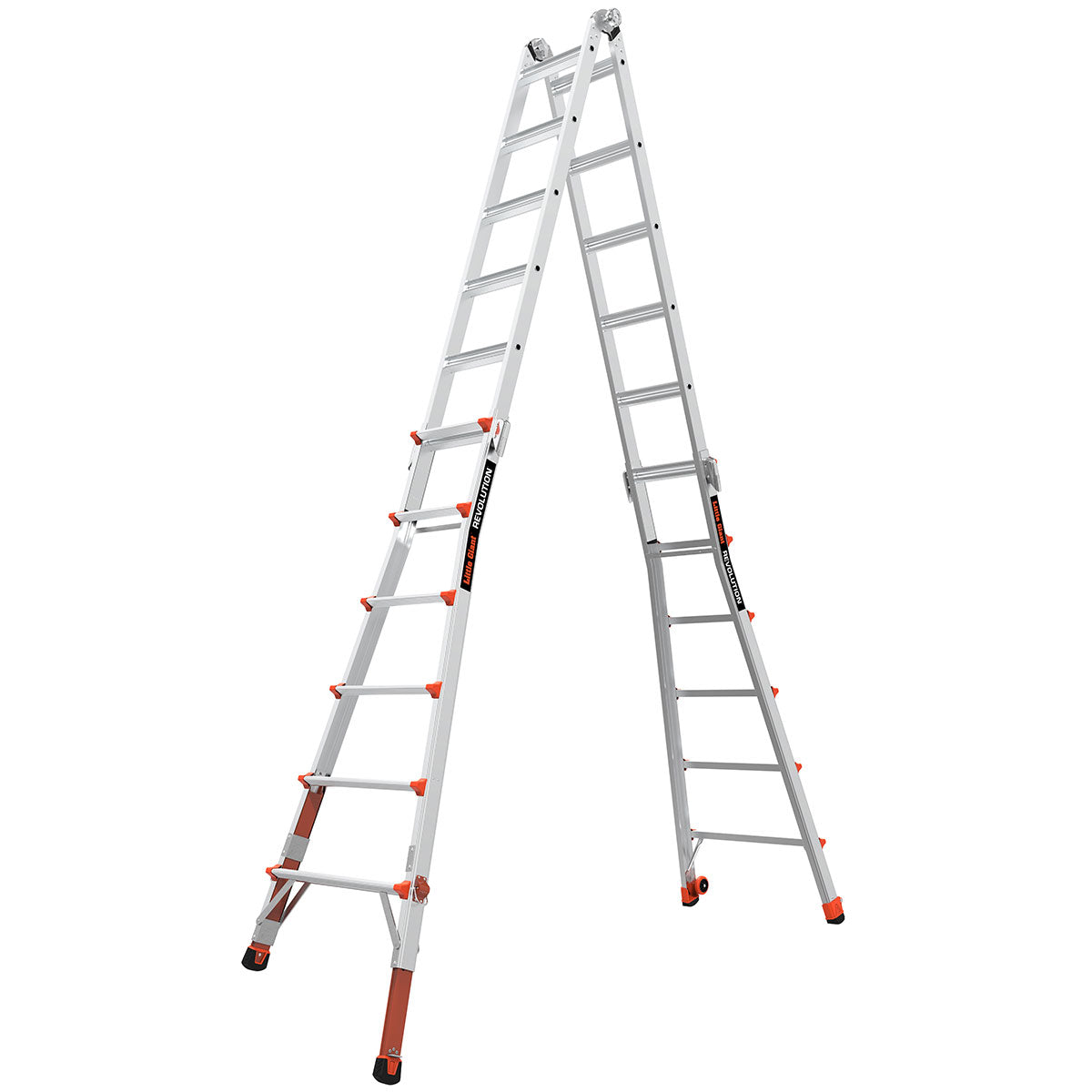

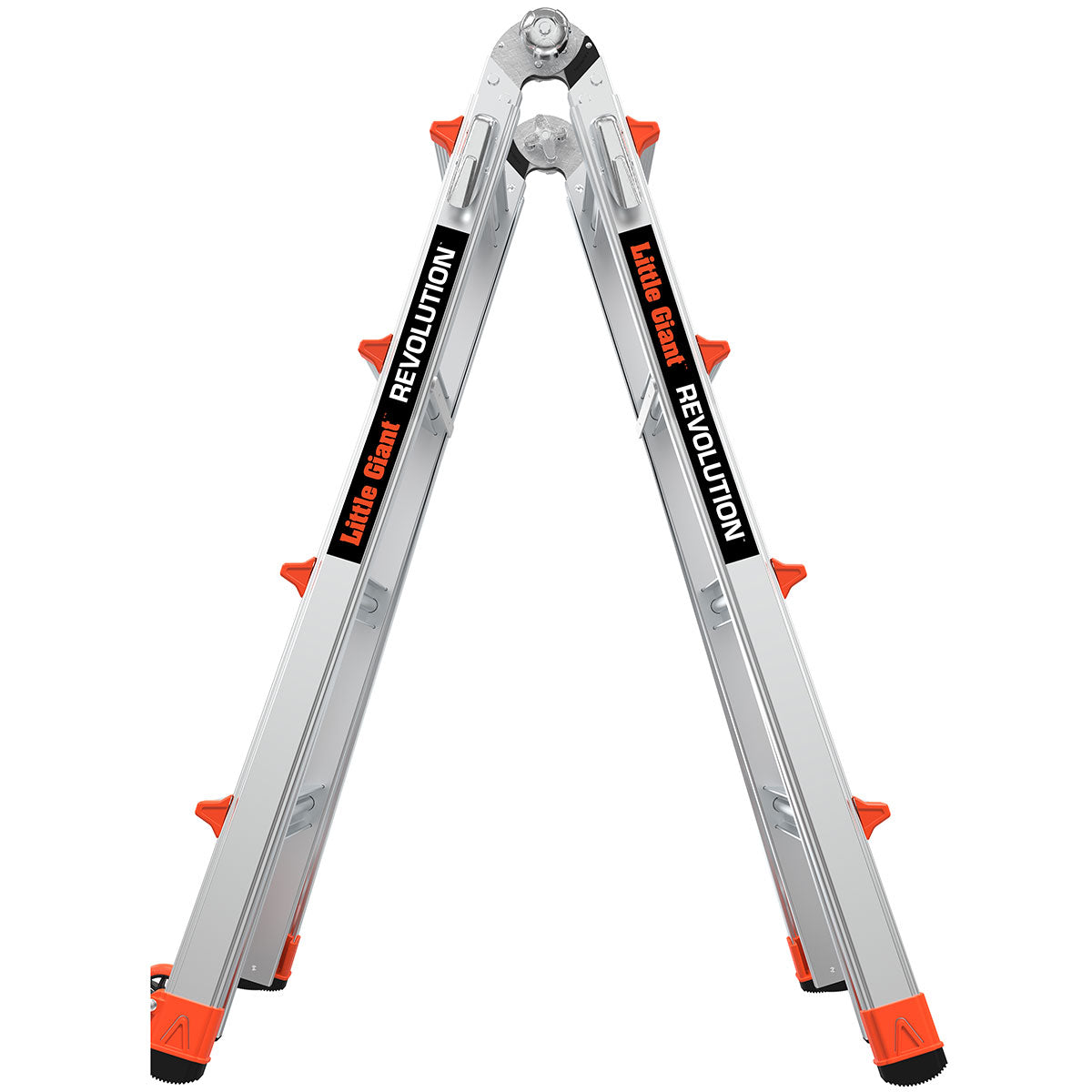

Move from storage to A-frame to extension ladder configurations by pushing in the ladder's palm buttons.

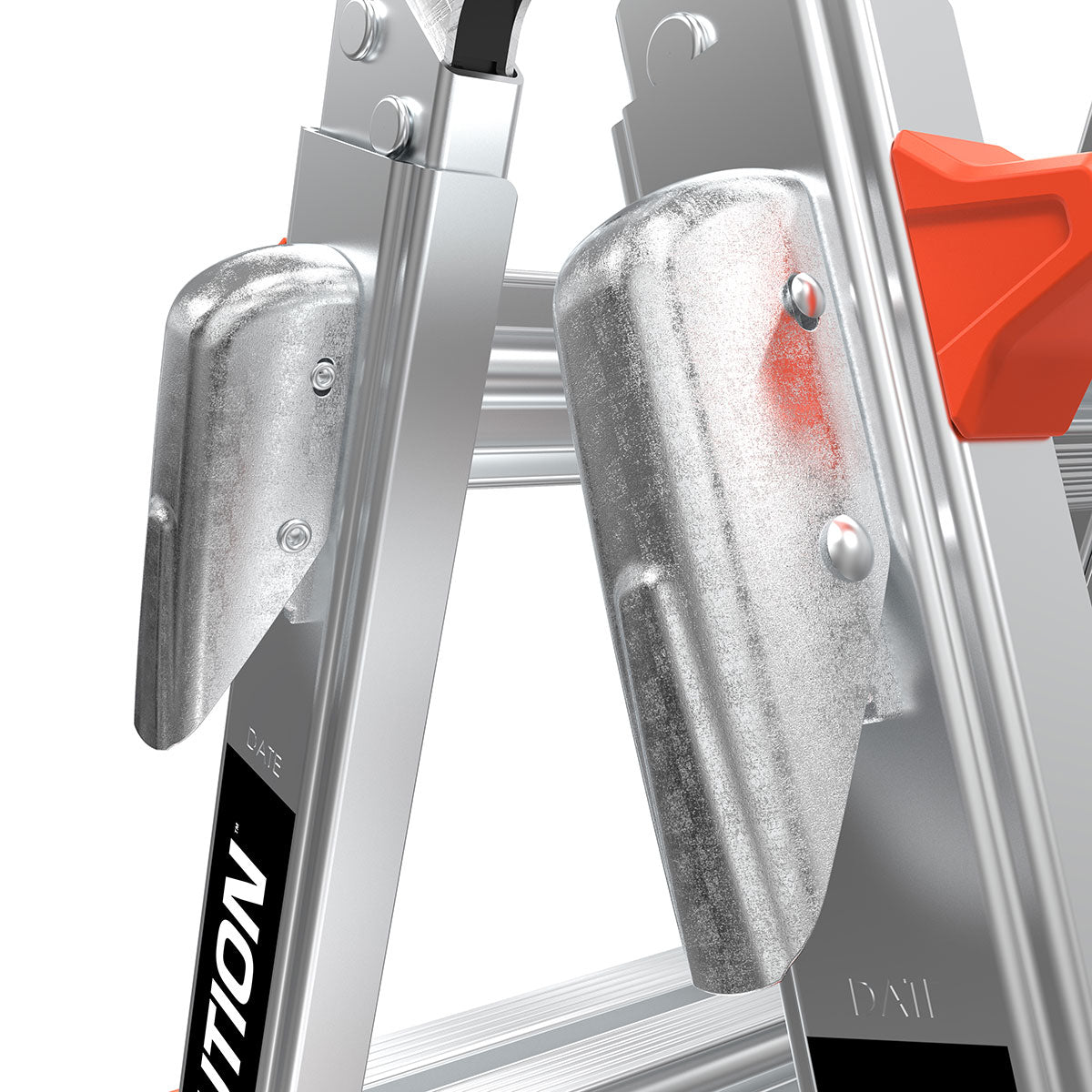

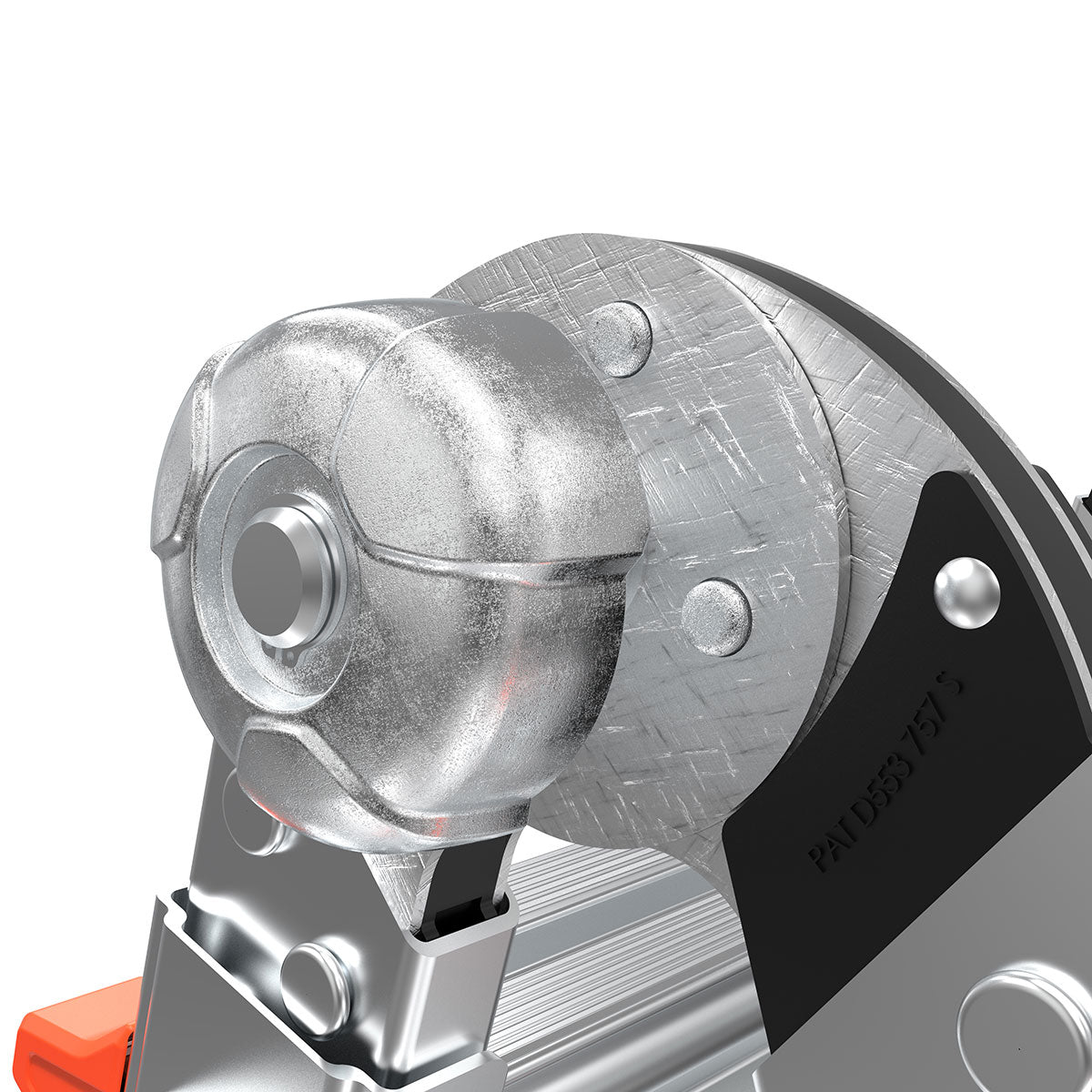

2. PATENTED METAL ROCK LOCK
Metal Rock Lock adjusters on the ladder's rails allow for quick and easy height and position adjustment.

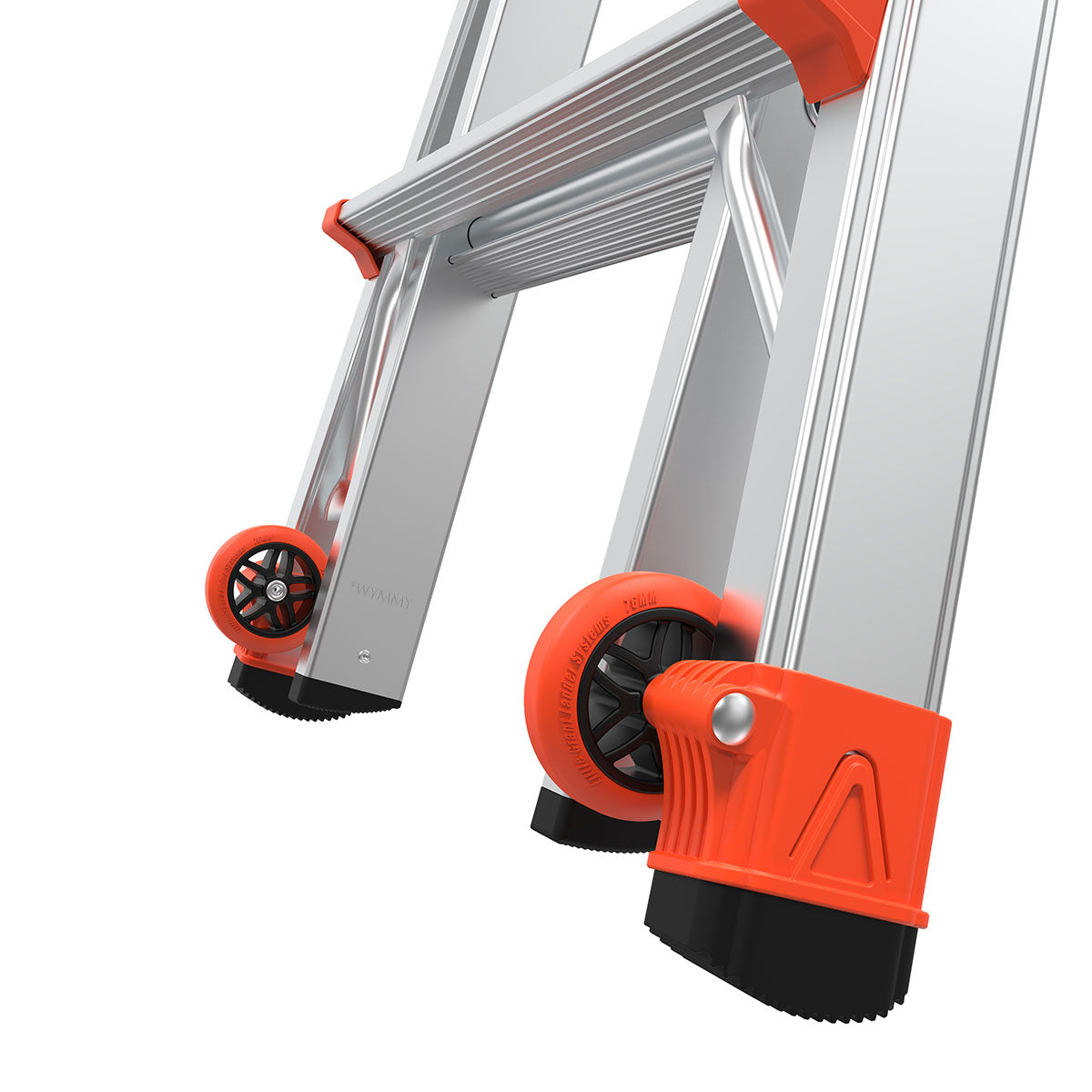

3. TIP & GLIDE WHEELS
The Revolution's integrated Tip & Glide wheels help you move the ladder easily from place to place.

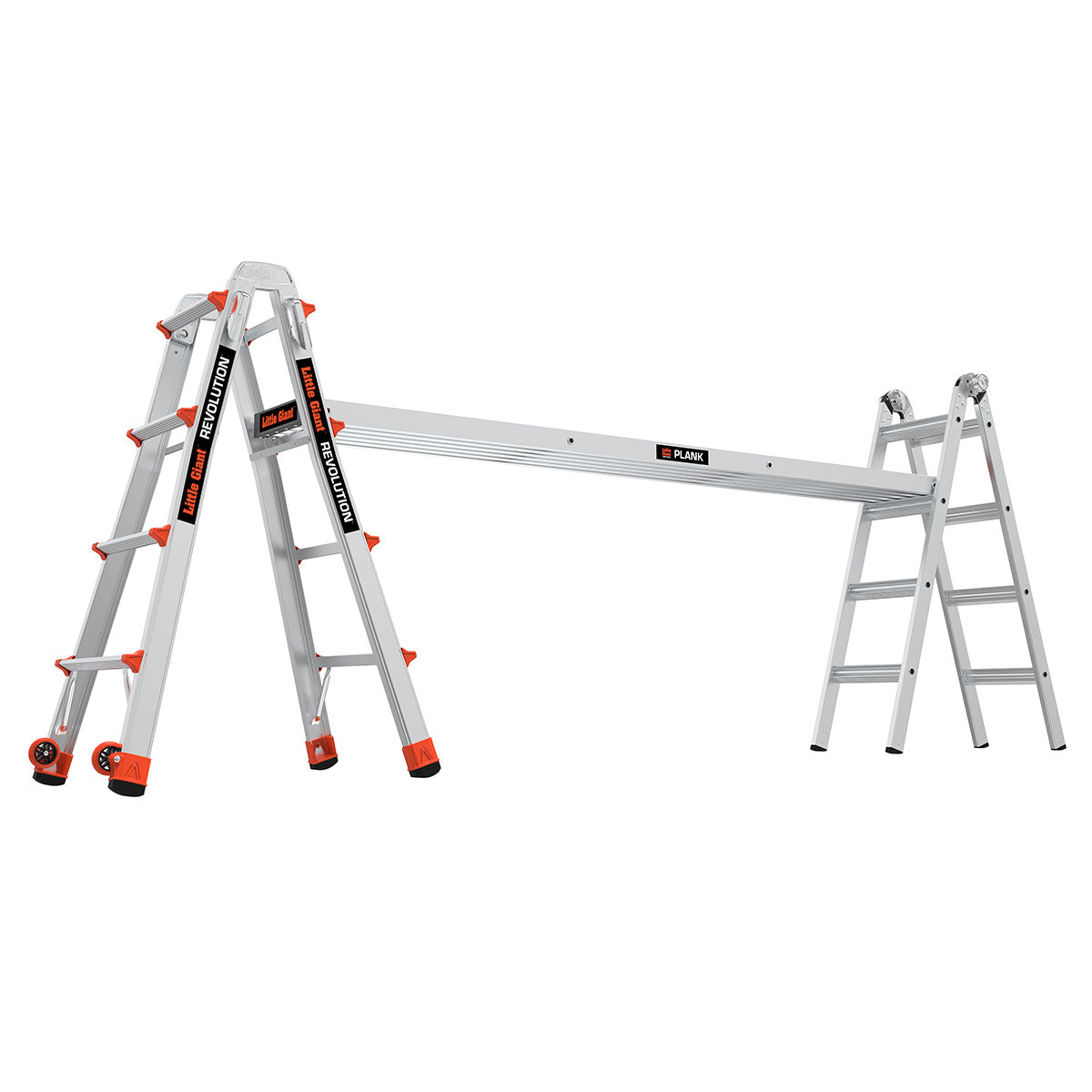

The Revolution can be converted into trestle-and-plank scaffolding by removing the outer section of the ladder and connecting it with trestle brackets. Attach a Plank between the two trestles to cover a larger workspace, so you can work faster. (Trestle brackets and Plank sold separately)
ACCESSORIES (Not all compatible accessories included)
1. CARGO HOLD
When working on a ladder, you need a space where you can comfortably put your equipment. Made of ballistic nylon and steel, the Cargo Hold is a sturdy tool pouch that attaches to your ladder to keep tools at hand.
2. WORK PLATFORM
Decrease foot fatigue while working on your ladder. The Work Platform is a ladder accessory that doubles as a comfortable standing platform and tool tray. This accessory is rated to hold up to 375 lbs. (NEVER EXCEED DUTY RATING OF THE LADDER)
If you need to work around a window, rain gutter or bush, the WingSpan wall standoff attaches to the ladder, allowing you to work around the obstacle, giving you a sturdy surface to work on.
|ANSI Duty Rating||Type IA - Extra Heavy Duty|
|Weight Capacity||300 lbs.|
|Product Weight||32 lb|
|Country of Origin||China|
|Storage Depth||9 in|

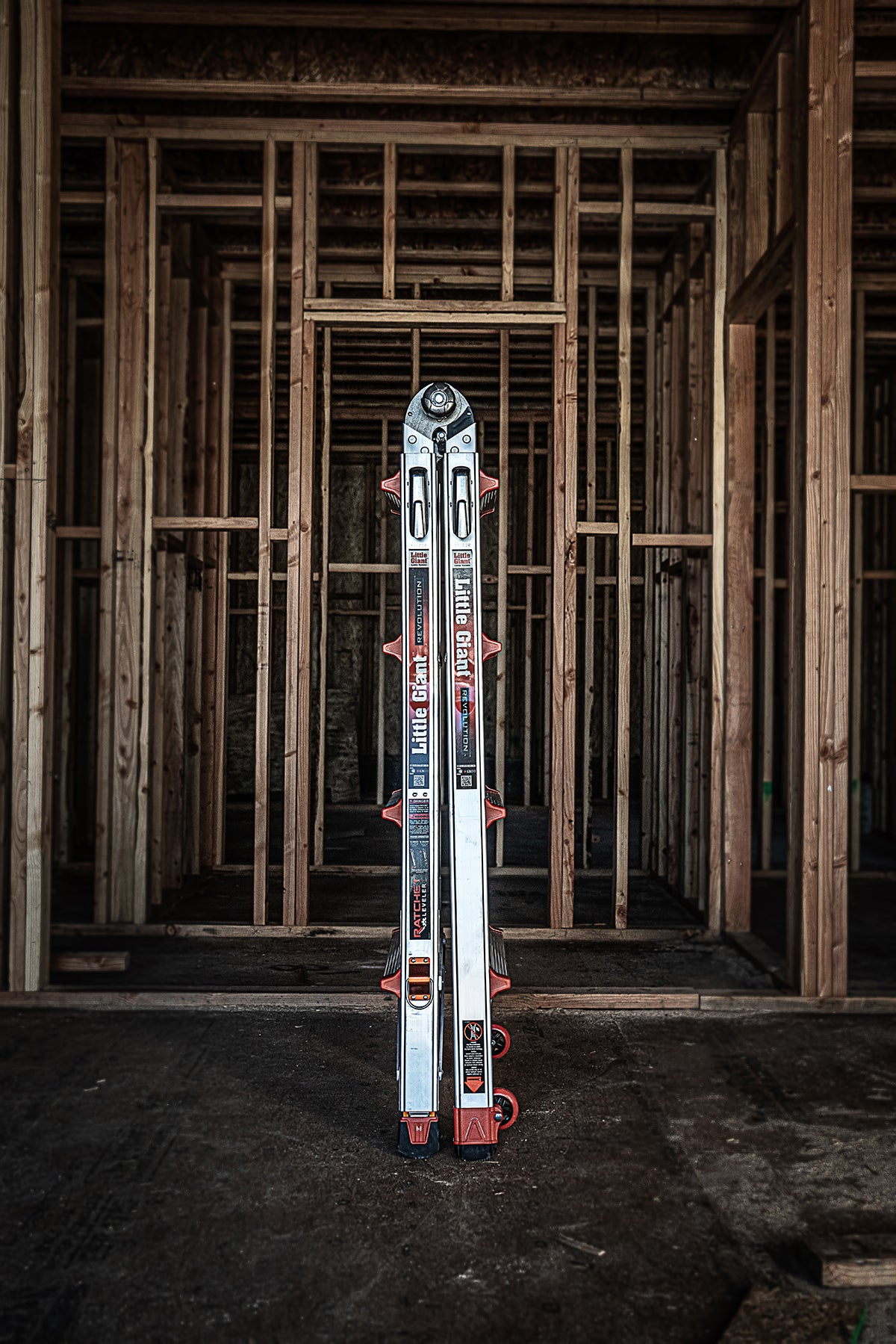

|Storage Height||55 in|
|Storage Width at Base||2 ft|
|Feet||Standard non-marring (snap-on)|
|Spreader System||Hinge Lock|
|Tip & Glide Wheels™||Yes|
|Air Deck Ports||No|
|Ladder Size||15 ft|
|Palm & Hinge Lock System||None|
|Height Adjusting Lock||Cast Aluminum Rock Locks|
|Inside Clear Width||1.04 ft|
|Inner Rung Depth||1.4 in|
|Outer Rung Depth||1.5 in|
|Rung Size Double Section||4 in|
|Top Width||1.5 ft|
|Highest Standing Level||4.83 ft|
|Maximum Footprint||5.19 ft|
|Max Reach||11.33 ft|
|Extension Lock||Cast Aluminum Rock Locks|
|Extension Min Reach||8.92 ft|
|Extension Minimum Working Length||8.92 ft|

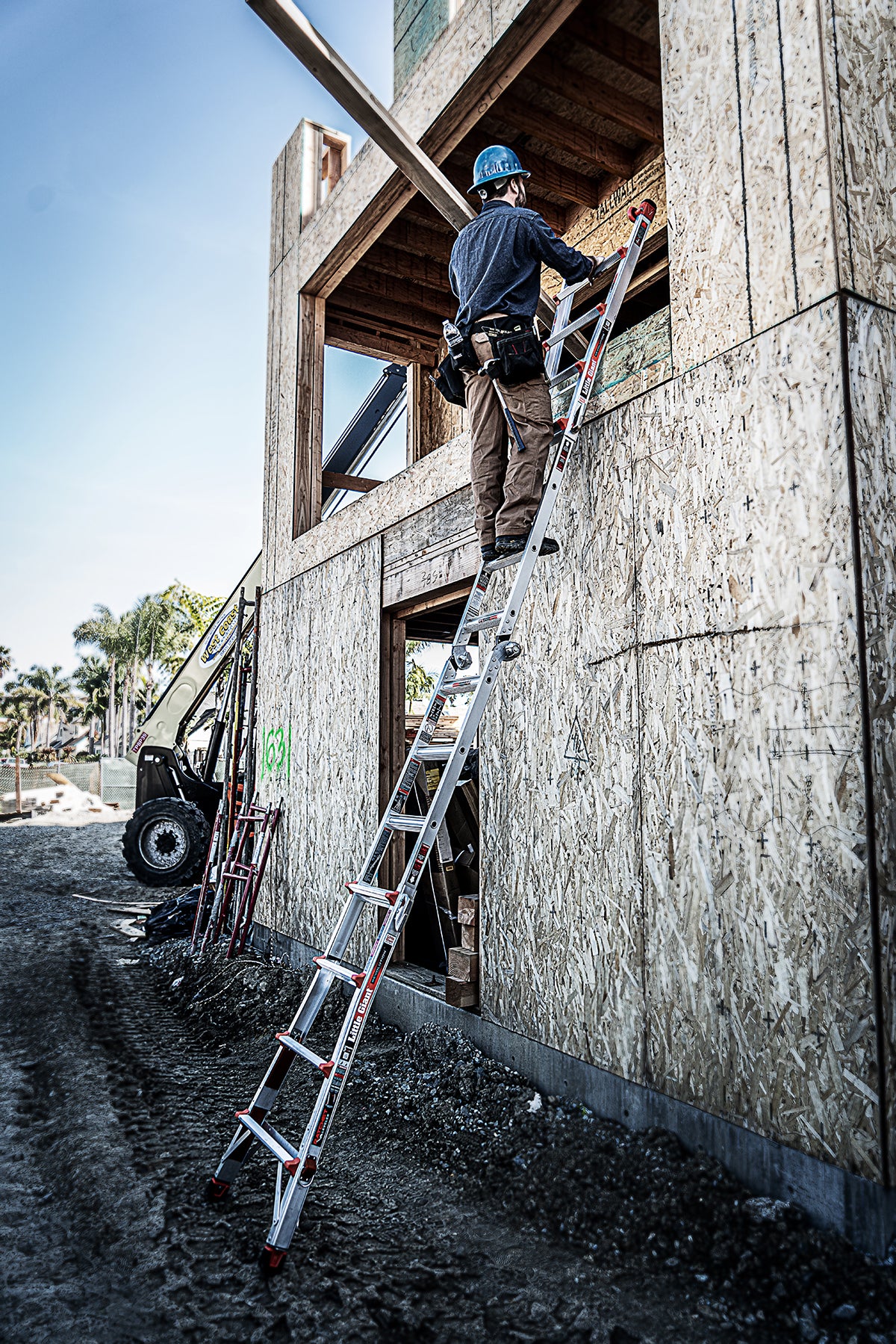

|Extension Maximum Working Length||14.92 ft|
|Extension Max Reach||18.08 ft|
|Extension Total Length of Sections||17.17 ft|
|Ship length||4.75 ft|
|Ship Width||2.08 ft|
|Ship Height||9 in|
|Ship Weight||37.5 lb|
Size refers to the ANSI definition of length. ANSI states that the size is defined by the combined length of all rail sections, with a tolerance of +/-3” on each section. Note, this does not take into account any overlap between sliding sections like those on an extension or multi-purpose ladder. This can cause a disparity in the size of the ladder versus the actual height. To determine which ladder you need, Little Giant recommends you reference maximum reach height instead of size.
The terminology for ladder duty ratings, grades, and types can sometimes be confusing. The ladder's duty rating is the maximum safe load capacity of that ladder according to ANSI standards. There are 3 types of ratings that Little Giant offers:
Type I - Made to handle everyday projects. Has a load capacity of 250 lbs.
Type IA- Designed with durability and regular use in mind. Has a load capacity of 300 lbs.
Type IAA- Built for professional performance and rugged use. Has a load capacity of 375 lbs.
Ladder specifications can be confusing due to safety regulation requirements. According to ANSI (American National Standards Institute), the ladder size is defined as the total length of each section and does not account for overlap on extension ladders. As a result, the overlapping sections reduce the total length of the ladder. When purchasing any ladder customers should pay particular attention to the maximum reach to ensure the correct product for the job.
Little Giant Ladders offers replacement parts for products manufactured by Little Giant Ladders only. Please contact Customer Service at 1 (800) 453-1192 or shop online at https://www.littlegiantladders.com/pages/ladder-parts.
When ordering replacement parts, you will need to provide the Little Giant Ladder Model Number and Mark Number or a description of the part you need.
